ViewBoard

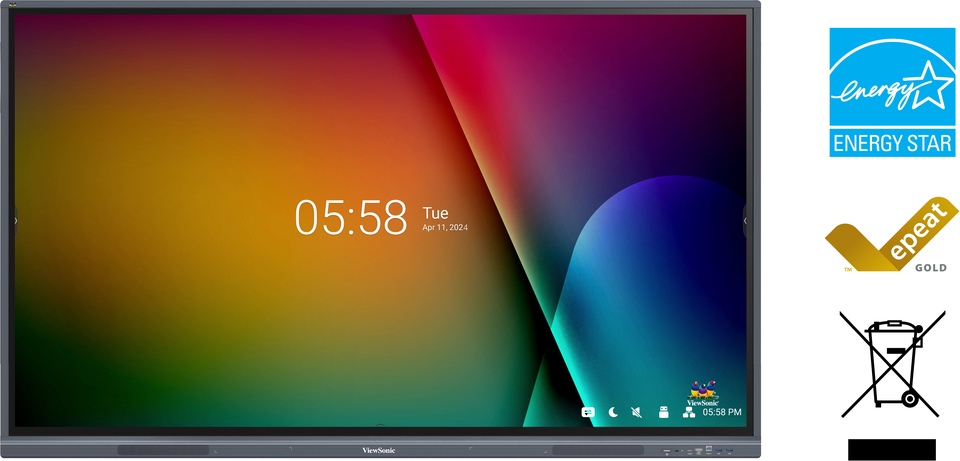

ViewBoard IFP6533
Klíčové Vlastnosti
- Integrated with myViewBoard software
- Multi-tasking capabilities for enhanced lesson delivery
- Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.
- Intuitive user interface and fast app launch for smooth operation
- Powered by Android 11
Produkt Popis
The ViewBoard IFP33 Series harmonizes a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is preinstalled with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
Navštivte nás
- www.viewsonic.com
-
DISPLEJ
Velikost panelu: 65" Typ panelu: TFT LCD Module with DLED Backlight. IPS Plocha displeje (mm): 1428.48(H) × 803.52(V) (64.5” diagonal) Poměr stran: 16:9 Rozlišení: UHD 3840x2160(Pixels) Colors: 1.07B colors Jas: 450 nits Kontrastní poměr: 5000:1 (max. with DCR enabled) Doba odezvy: 8ms Zobrazovací úhly: H=178, V=178 Životnost podsvícení: 50,000 Hours (8 hours of use per day) Povrchová úprava: Hardness: 7H Anti-glare coating Orientace: Landscape -
PLATFORMA
Procesor: Quad-core ARM Cortex (A55*4 ) RAM: 4GB DDR4 Úložný prostor: 32 GB -
TOUCH
Typ/Tech: Ultra Fine Touch Technology Dotykový bod: 40 points touch -
INPUT
HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz) RGB / VGA: x1 Audio: x1 RS232: x1 OPS: x1 (Optional Intel Standard OPS) WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) -
OUTPUT
HDMI: HDMI 2.0 x1 Audio: x1 SPDIF: x1 -
LAN
RJ45: x2 -
USB
Typ A: USB3.0:Front x2, Rear x2； USB2.0 x1 Typ B: x2 (Rear x1 + Front x1) Typ C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) -
REPRODUKTORY
16W x 2 -
TOP CAMERA PLATE
Yes -
ZABUDOVANý OPERAčNí SYSTéM
Android 11 -
BALíčEK SOFTWARU
Základní anotační software: myViewBoard Whiteboard Anotační Software Pro: myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation: myViewBoard Display Bezdrátová prezentace s dotykovou zpětnou vazbou: Viewboard Cast: Yes -
SPECIáLNí VLASTNOSTI
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Jednoduché sdílení sítě LAN mezi IFP a zásuvným zařízením: 10/100M for Android & Slot-in PC Light Sensor: Yes -
VýKON
Napětí: 100-240V AC Spotřeba: On:99W ; Off: ≤ 0.5W -
ERGONOMICS
Nástěnný držák (VESA®): 600*400 -
OPERATING CONDITIONS
Teplota (º C): 0°C to 40°C Vlhkost: 20% ~ 80% RH non-condensing -
ROZMĚRY (Š X V X H)
Fyzicky (palce / mm): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in Balení (palce / mm): 1628x208x1005 mm / 64.1x 8.2x 39.6in -
WEIGHT
Čistá hmotnost (lb / kg): 77.1lb/34.95kg Hrubá hmotnost (lb / kg): 98.5 lb/44.7kg -
REGULATIONS
FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS -
OBSAH BALENÍ
1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m -
KOMPATIBILNí SLOT-IN PC
VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
