ePlakát
EP1042T
Klíčové Vlastnosti
- HD 800p resolution
- 10-point Multi-touch
- Integrated media player for video, photo and music playback
- Embedded 8GB internal memory and integrated speakers
- Dual Integrated Speakers
Produkt Popis

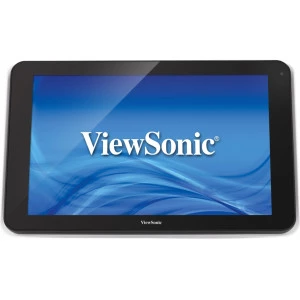

The ViewSonic EP1042T is a 10" (10.1" viewable) all-in-one interactive digital ePoster designed as a conference and meeting arrangement solution, delivering eye-catching and touch-interactive commercial messaging. Adopting the latest power-over-Ethernet (POE) technology, the display can be easily installed at high-visibility locations via one LAN cable. The EP1042T features a wireless b/g/n network and LAN connectivity for easy content loading. Multi-touch compatibility with HTML5 and SMIL formats deliver a 2-way interactive platform for dynamic, customized content. Its built-in media player, 8GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. Bundled with Signage Manager Express software, the EP1042T effectively delivers customized messaging to target audiences. With VESA-mount compliance (75mm x 75mm), the EP1042T is installation-ready for high-visibility, high-traffic locations.
Navštivte nás
- www.viewsonic.com
-
SPECIFICATION
Velikost panelu: 10" (10.1'' diagonal) Typ/Tech: TFT LCD Module with LED Backlight Plocha displeje (mm): 216.96(W) x 135.6(H) Poměr stran: 16:10 Rozlišení: 1280 x 800 Colors: 262K Color Jas: 300 nits (typ.) Kontrastní poměr: 800:1 (typ.) Doba odezvy: 25 ms Zobrazovací úhly: Top = 85, Bottom = 85, Left = 85, Right = 85 (typ.) Backlight: LED Životnost podsvícení: 10,000 Hours (typ.) -
TOUCH
Typ/Tech: Capacitive Dotykové rozlišení: 1280x800 Dotykový bod: 10 point for gesture -
INPUT
Audio: x1 (3.5mm jack) SD/SDHC: Micro SD (Up to 32GB) -
LAN
RJ45: x1 (10M/100M BASE-T, PoE 13W) -
USB
Typ A: x2 (USB2.0) Micro USB: x1 -
CAMERA
2M Pixel -
REPRODUKTORY
2W x2 -
BUILT IN PLAYER
OS: Android 4.4 Procesor: Rockchip RK3188 Úložný prostor: 1GB DDR3-1600 SDRAM Graphic: ARM Mali400 MP4 Úložný prostor: 8GB HDMI (1080p): Up to 1080p @ 50/60Hz -
POWER
Napětí: 100-240VAC +/- 10% Wide Range Spotřeba: 13.5W (Max) -
ERGONOMICS
Nástěnný držák (VESA®): 75 x 75mm -
OPERATING CONDITIONS
Teplota (º C): 32°F to 104°F (0°C to 40°C) Vlhkost: 30% ~ 80% non-condensing -
ROZMĚRY (Š X V X H)
Fyzicky (palce / mm): 269.88 x 170 x 28.5 mm / 10.62 x 6.69 x 1.12 in. Balení (palce / mm): 336 x 100 x 227 mm / 13.2 x 3.93 x 8.93 in. -
WEIGHT
Čistá hmotnost (lb / kg): 0.727 kgs / 1.6 lbs Hrubá hmotnost (lb / kg): 2.245 kgs / 4.95 lbs -
WHAT'S IN THE BOX?
1. AC Adapter
2. Power plug x 1 (US/EU/AU/UK)
3. Power and Micro SD card brackets
4. Display stand
5. Hardware Quick Start Guide
6. Software Quick Start Guide
7. Documentation CD (UG, QSG, Signage Manager software)
*Actual content may differ from market to market
