TD2760

27" 10-point Touch Screen Monitor

  • SuperClear® technology
  • Advanced ergonomic stand for tilt or flat
  • HDMI, DisplayPort and VGA inputs
  • 50M:1 dynamic contrast ratio
  • Supports Windows® 7/8/10/11 and selected Linux, Chrome, and Android
Poptávka po prodeji  Sdílet

POPIS

The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and a full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mount display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. Even more, the ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0

10-Point Multi-Touch

Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, and commercial use.
10-Point Multi-Touch
10-Point Multi-Touch 1

Viewing Clarity from Wide Angles

Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.
SuperClear® 178°/178°
Viewing Clarity from Wide Angles 1

Advanced Ergonomic Stand for Optimal Touch Experience

A flexible ergonomic stand makes it easy to adjust this touch monitor for optimal comfort and viewing. Simply tilt, raise, and lower the monitor for the most natural position, or lay it completely flat to create a comfortable working environment.
Tilt, Raise, Lay flat
Advanced Ergonomic Stand for Optimal Touch Experience 1

Versatile Connectivity

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
DisplayPort, HDMI, VGA
Versatile Connectivity 1

Mega Dynamic Contrast Ratio

A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.
Maximized Color & Contrast
Mega Dynamic Contrast Ratio 1

Cross-Platform Compatibility

Cross-platform compatibility with a wide range of operating systems including: Windows 7/8/10/11, Linux, Chrome, and Android*. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0
Windows 7/8/10/11, Linux, Chrome, Android
Cross-Platform Compatibility 1

Control Multiple Devices

RS232 offers local control for set-top boxes, and other RS232 connected devices. The HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices directly through the display.
HDMI CEC, RS232
Control Multiple Devices 1

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual Integrated Speakers
Dual Integrated Speakers 1

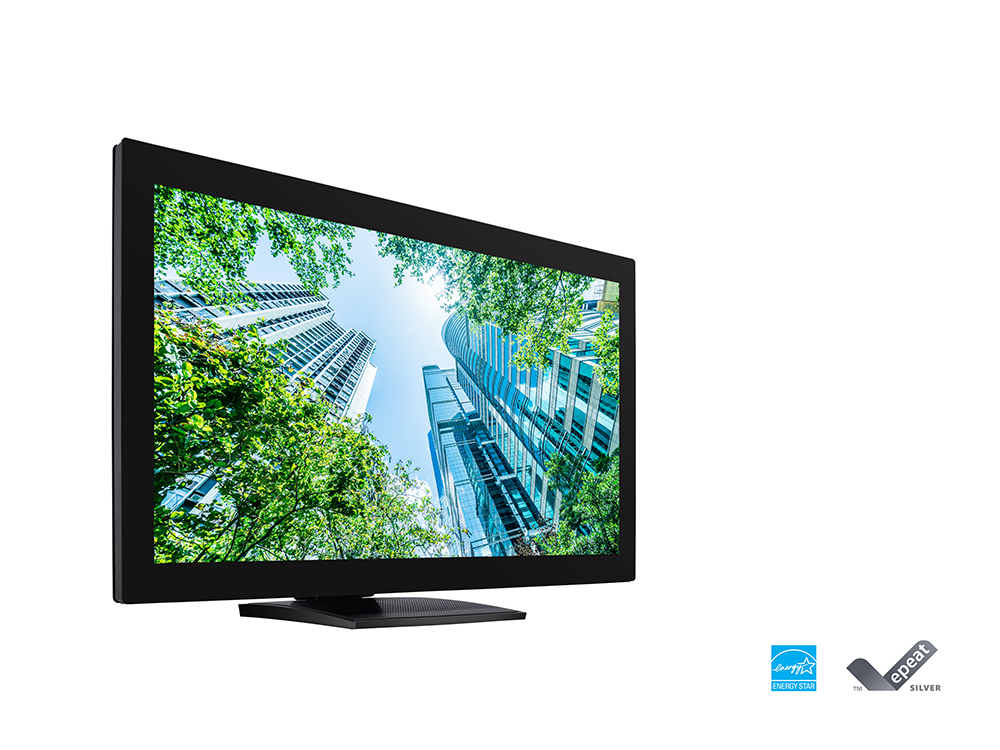

Certified Environmental Sustainability

The TD2760 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

Enhanced Viewing Comfort

Flicker-Free Technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Blue Light Filter, Flicker-Free
Enhanced Viewing Comfort 1

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.
100mm x 100mm
  1. Internal Speakers
  2. VESA Compatible(Wall Mount 100x100mm)
  3. AC In
  4. DisplayPort
  5. HDMI
  6. VGA
  7. USB Down Stream X 2
  8. USB Up Stream
  9. RS232
  10. Earphone
  11. Audio In

RECENZE


SPECIFIKACE


  • Displej
    Velikost displeje (palce): 27
    Viditelná plocha (palce): 27
    Typ panelu: VA Technology
    Rozlišení: 1920 x 1080
    Typ rozlišení: FHD (Full HD)
    Statický kontrastní poměr: 3,000:1 (typ)
    Poměr dynamického kontrastu: 50M:1
    Světelný zdroj: LED
    Jas: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Poměr stran: 16:9
    Doba odezvy (obvyklá GTG): 6ms
    Doba odezvy (GTG w/OD): 6ms
    Response Time (Typical Tr+Tf): 12ms
    Zobrazovací úhly: 178º horizontal, 178º vertical
    Životnost podsvícení (v hodinách): 30000 Hrs (Min)
    Zakřivení: Flat
    Obnovovací frekvence (Hz): 60
    Blue Light Filter: Yes
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 102% size (Typ)
    Velikost pixelu: 0.311 mm (H) x 0.311 mm (V)
    Dotyková obrazovka: Projected Capacitive, 10-point multi-touch
    Povrchová úprava: Anti-Glare, Hard Coating (≧6H)
    Cover Glass Thickness: 1.88mm
  • Kompatibilita
    Rozlišení PC (max): 1920x1080
    Mac® Rozlišení (max): 1920x1080
    Operační systém PC: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Rozlišení (min): 1920x1080
  • Konektor
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3,5mm audio výstup: 1
    HDMI 1.4: 1
    DisplayPort: 1
    Výkon v: 3-pin Socket (IEC C14 / CEE22)
    RS232 In: 1
