“The ViewSonic VX1940w receives a four-out-of-five, “Great” rating and the Editors’ Choice award in this reviews roundup, highlighting its easy-to-use onscreen controls, resolution and overall image quality.”
Archivováno
VX1940w-4

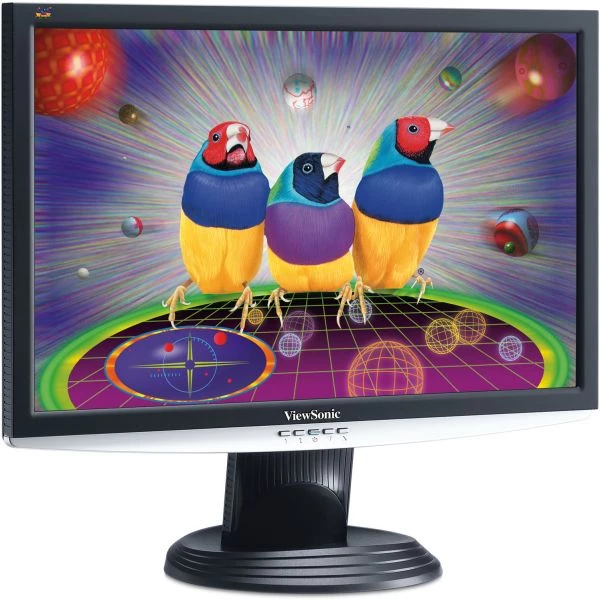

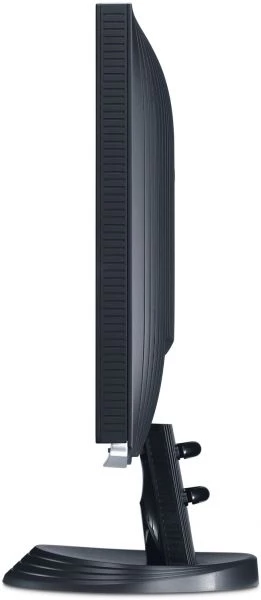

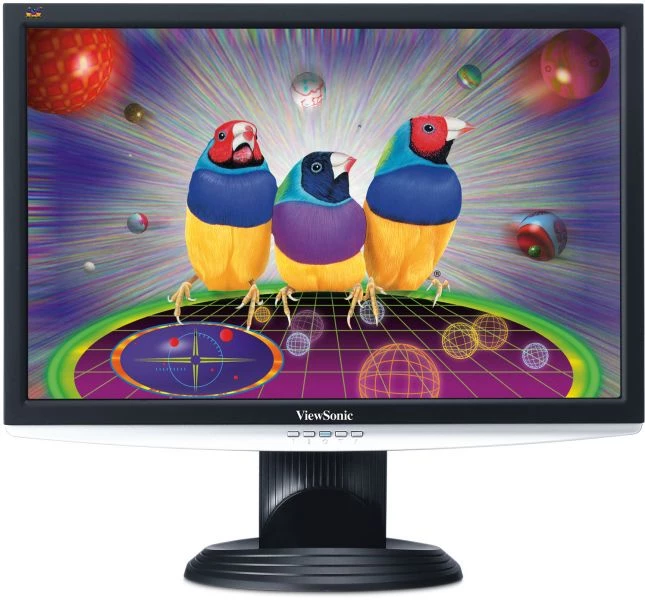

49 cm / 19" WIDESCREEN LCD MONITOR VX SERIES WITH 2MS RESPONSE TIME AND 3,000:1 DCR
RECENZE
SPECIFIKACE
- COLORSBlack
- LCDTyp: 49 cm / 19" Wide TN colour TFT active matrix WSXGA+ LCD
Kontrastní poměr: 1000:1 (typ.), 3000:1 DCR (typ.)
Zobrazovací úhly: 170° horizontal, 160° vertical (at 0:1)
170° horizontal, 170° vertical (at 5:1)
Jas: 300 cd/m2
Display Area: 41.0cm horizontal x 25.7cm vertical, 48.3cm diagonal
Optimum Resolution: 1680 x 1050@60Hz
Doba odezvy: 2ms (grey-to-grey), 5ms (off-on-off) (typ.)
Světelný zdroj: Long life, 40000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.243mm
Colour Support: 16.7M colours supported (6-bit+2-bit FRC)
Pixel Clock: 165MHz - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- DIMENSIONSPhysical With Stand: 442 x 385 x 195
Physical Without Stand: 442 x 310 x 54
W x H x D mm: 520 x 469 x 145 - OBSAH BALENÍLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Výkon: 3-pin AC plug (CEE22)certified) - POWERNapětí: AC 100–240V, 50/60Hz (auto switch), internal power supply
Spotřeba: 44 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - OPERATING CONDITIONSTeplota: 0°C – 40°C
Vlhkost: 10%–90% (non-condensation) - WEIGHTNet With Stand: 4.6kg
Net Without Stand: 3.8kg
Gross With Stand: 5.8kg - VIDEO INPUTFrequency: Fh: 24~82kHz, Fv: 50~85Hz
Sync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI) - POWER MANAGEMENTTCO’03 and ENERGY STAR standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSNaklápění: Down 5°, Up 20°
