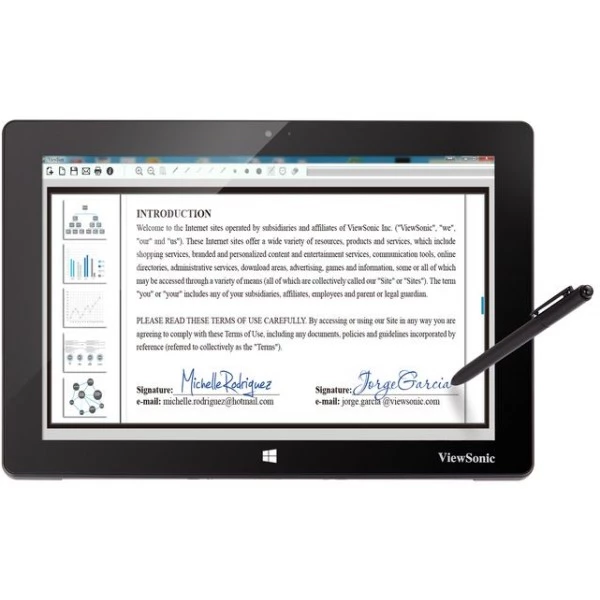

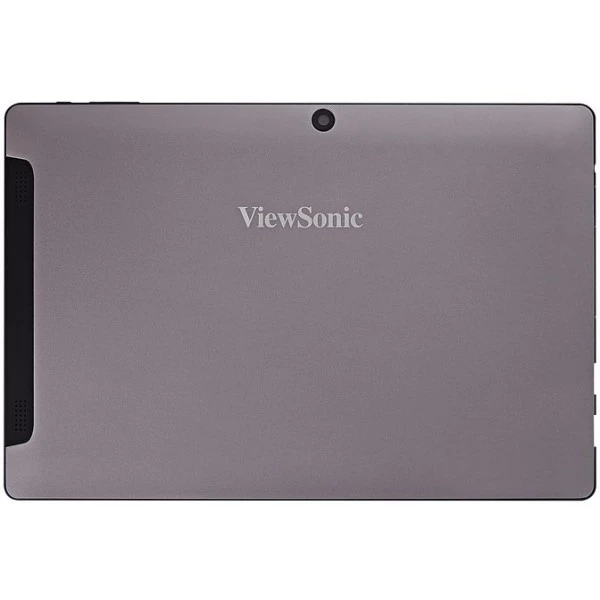

PT1080
SPECIFIKACE
- LCD PanelDisplay Area: 10.1''
Optimum Resolution: 1280 x 800
Jas: 300cd/m2 (Typ),250cd/m2 (Min)
Kontrastní poměr: 500(TYP) 400(Min)
Zobrazovací úhly: 160 Deg H and 160 Deg V (Typ.)
Backlight: LED Light-Bar - SYSTEMProcesor: Intel Baytrail-T(Quad-core ), Z3735F, 1.33Ghz
Paměť: 2GB DDR3L
Úložný prostor: 32GB eMMC
Operační systém: Windows 8.1 - CONNECTORVideo: Mini HDMI 1.4a x 1
Audio: 3.5mm standard headphone jack x 1
USB: USB 2.0 x 2, Micro USB x 1(Ethernet Network)
SD karta: Micro SD slot x 1
Výkon: Input; AC/100V-240V ~ 50/60HZ Output: DC/ 5V/3A Max
- POWERBattery: V Pen: Battery-less
- OPERATING CONDITIONSTeplota: 32°F to 113°F (0°C to 45°C)
Vlhkost: 20% - 80%(Max), Non-Condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 258.13 x 172.71 x 10.62 mm
Box (in / mm): 294 x 200 x 71 mm - WEIGHTČistá hmotnost (lb / kg): lb / 0.7 kg
Hrubá hmotnost (lb / kg): lb / 10.5 kg - WHAT'S IN THE BOXPen Display*1 / Quick Star Guide *1 / Driver CD*1 / USB 2.0 Y-cable*1 / Adapter*1 / Replacement tool of Pen tip*1 Pen*1 / Pen tip*3 / Warranty card*1(VSCN only)*1 / Pen rope*1 / User Guide *1 (e-file) * Actual content may differ from market to market
