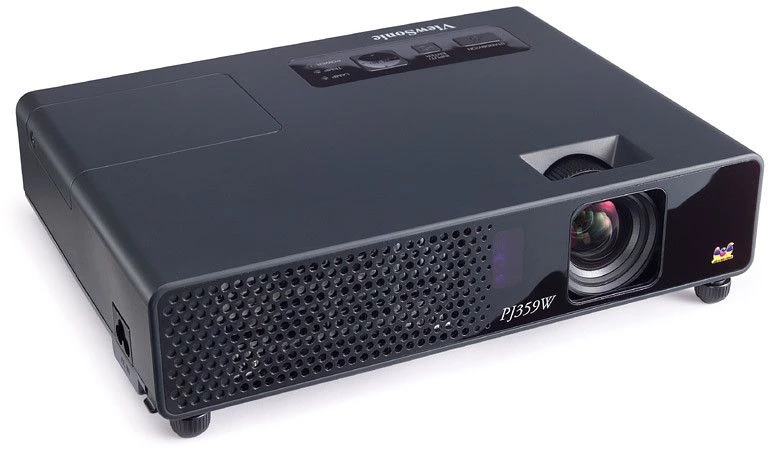

PJ359w
ULTRA-PORTABLE WXGA 3LCD PROJECTOR WITH AUTO KEYSTONE CORRECTION
SPECIFIKACE
- LCDTyp: 1.4 cm / 0.55" (x3) Poly-Si TFT with Micro Lens
Rozlišení: WXGA 1280×800 (native) / UXGA 1600×1200 (compressed)
Objektiv: 1.2x Manual Optical Zoom / Manual focus
Digital Keystone: Vertical Digital keystone correction:+/-30 degrees - COMPATIBILITYPC: Analogue: VGA up to SXGA(scaled)
Mac®: Analogue: up to UXGA(scaled) - DIMENSIONSFyzicky (VxŠxH): 274 x 59 x 205
W x H x D mm: 375 x 195 x 292
- OBSAH BALENÍProjector, Power cable, RGB cable, Remote control, Soft case, Lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)
- AUDIOReproduktor: 1x1 W
- INPUT SIGNALFrequency: Fh:31-106 KHz, Fv:56-120 Hz
Computer and Video: RGB Analogue, NTSC M, NTSC 4.43, PAL(B, D, G, H, I, M, N, 60),SECAM, SDTV/EDTV(480i/p, 576i/p), HDTV(720p, 1080i/p) - CONNECTORDigital: 1 X HDMI 1.3
Audio Out: 1 X 3.5 mini jack
PC RGB Input: 2 X 15-pin mini D-sub
Composite Video Input: 1 X RCA jack
S-Video Input: 1 X 4-pin mini-DIN
Audio Input: 1 X 3.5 mini jack
USB: 1 X USB type B (for mouse control only) - POWERNapětí: 100~240VAC(Auto Switching), 50/60Hz (universal)
Spotřeba: 310W (typ) / 5W (Stand-by mode) - CONTROLSBasic: Standby/On, input, menu
OSD: Easy Menu: Aspect, Auto keystone execute, Keystone, Picture mode, Brightness, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to advanced menu…
Picture Menu: Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, My memory
Image Menu: Aspect, Over scan, V. position, H. position, H. phase, H. size, Auto adjust execute
Input Menu: Progressive, Video NR, Color space, Video format, HDMI, Frame lock, Computer in, Resolution
Setup Menu: Auto keystone execute, Keystone, Whisper, Mirror, Standby mode
Audio Menu: Volume, Audio, HDMI audio
Screen Menu: Language, Menu position, Blank, Start up, Myscreen, Myscreen lock, Message, Source name, Template
Option Menu: Auto search, Auto keystone, Auto on, Auto off, Lamp time, Filter time, My button, My source, Service, Security
C.C. (Closed Caption) Menu: Display, Mode, Channel - OPERATING CONDITIONSTeplota: 41ºF - 95ºF(5ºC - 35ºC)
Vlhkost: 10% - 85% (non-condensing)
Altitude: 0 to + 6,000 ft - WEIGHTČistá hmotnost: 1.8 kgs
Hrubý: 4.5 kgs - DISPLAYContrast Ratio : 500:1
Display size: 0.8m - 7.6m (30" - 300") (Diagonal)
Poměr stran: 16:10 (Native) / 4:3
Projekční vzdálenost: 0.9m-11.6m (35"-456")
Projekční poměr: 1.5:1-1.8:1
Lamp type: 190 watt
Jas: 2,000 Lumens
Lamp life ( Normal / Eco / Dynamic Eco ): 2000 / 3000 (hours) - NOISE LEVELNormal: 36dB
Eco-mode: 30dB - OTHERCustomizable star tup screen and remote control buttons, eco mode, auto on/off, security (security password, transition detector, Kensington lock)
