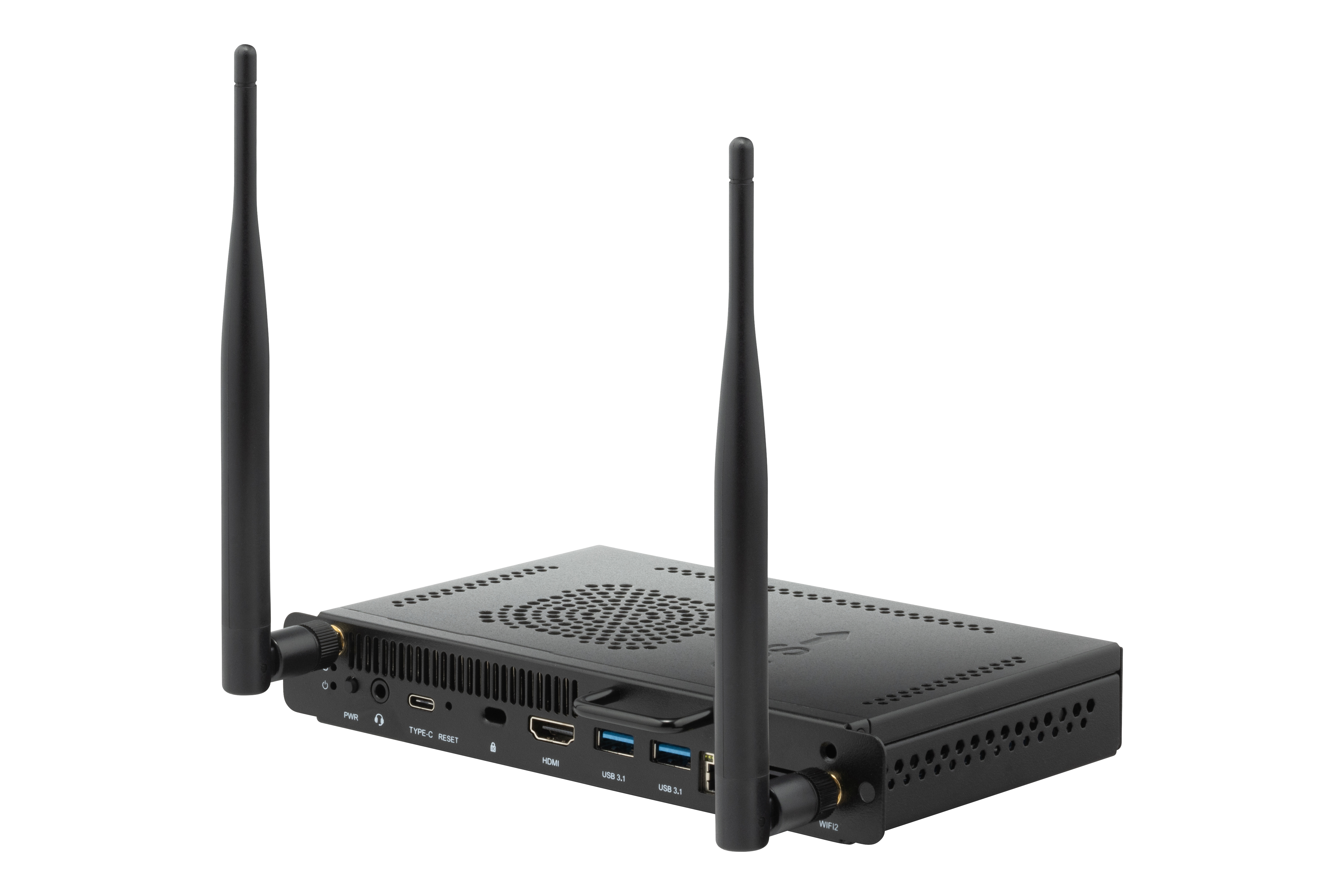

VPCF5-W33-G1 Slot-in PC for ViewBoard®

Key Features

Windows 11 Pro
Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
Powerful Intel® 11th Core Processors embedded TPM2.0
Improved System Stability, Security, & Thermal Control

Product Description

Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-W33-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.

Visit Us

www.viewsonic.com

SOFTWARE

Besturingssysteem: Windows Pro 11

KERN

CPU:	Intel® Tiger Lake Mobile Processor Intel Gen11th core i5 CPU or later Gen. CPU
Grafische afbeeldingen:	Integrated Intel® Iris Xe Graphics (96EU) Total Available Graphics Memory: 32GB Max Resolution up to 7680x4320@60Hz (DP)

GEHEUGEN

Type: DDR4

Capaciteit: 8GB
OPSLAG

Afmeting: M.2 SSD

Capaciteit: 256GB

Interface: PCIE
INPUT

MIC (microfoon): MIC-In&Line-Out two in one connector

OPS Standard: x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1)
OUTPUT

HDMI: x1 (Max 3840x2160@30Hz)

Audio: MIC-In&Line-Out two in one connector
LAN

RJ45: x1
DRAADLOOS / BLUETOOTH

Draadloos / Bluetooth: Intel® AX101NGW
WIFI 6 802.11 ax + BT5.2
USB

Type A: USB 3.1 x 2 / USB 2.0 x1

Type C: USB 3.1 Gen2 x1 (Data Only)
BUNDELSOFTWARE

Bundelsoftware: myViewBoard Whiteboard,
Adobe Reader,
Watchdog/Winflash
POWER

Spanning: DC 12-19V/8A Max

Consumptie: Max 90 W
OPERATING CONDITIONS

Temperatuur (º C): 0℃ ~ 40℃(working)

Luchtvochtigheid: 10% ~ 90% @ 40°C Non-condensing(working)
AFMETINGEN (B X H X D)

Fysiek (inch/mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm

Verpakking (inch / mm): 10.23 x 7.87 x 3.15 in / 260 x 200 x 80 mm
WEIGHT

Netto (lb / kg): 1.54 lb / 0.7 kg

Bruto ( lb/kg): 2.65 lb / 1.2 kg
REGULATIONS

REGULATIONS: CE EMC / LVD / CE RED / RoHS /REACH / WEEE / CB2018
VERPAKKINGSINHOUD

VERPAKKINGSINHOUD: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2

MIC (microfoon):	MIC-In&Line-Out two in one connector
OPS Standard:	x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1)

HDMI:	x1 (Max 3840x2160@30Hz)
Audio:	MIC-In&Line-Out two in one connector

Type A:	USB 3.1 x 2 / USB 2.0 x1
Type C:	USB 3.1 Gen2 x1 (Data Only)

Temperatuur (º C):	0℃ ~ 40℃(working)
Luchtvochtigheid:	10% ~ 90% @ 40°C Non-condensing(working)

Fysiek (inch/mm):	7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
Verpakking (inch / mm):	10.23 x 7.87 x 3.15 in / 260 x 200 x 80 mm

Netto (lb / kg):	1.54 lb / 0.7 kg
Bruto ( lb/kg):	2.65 lb / 1.2 kg

Type:	DDR4
Capaciteit:	8GB

Afmeting:	M.2 SSD
Capaciteit:	256GB
Interface:	PCIE

Spanning:	DC 12-19V/8A Max
Consumptie:	Max 90 W
