Detachable PC Modules

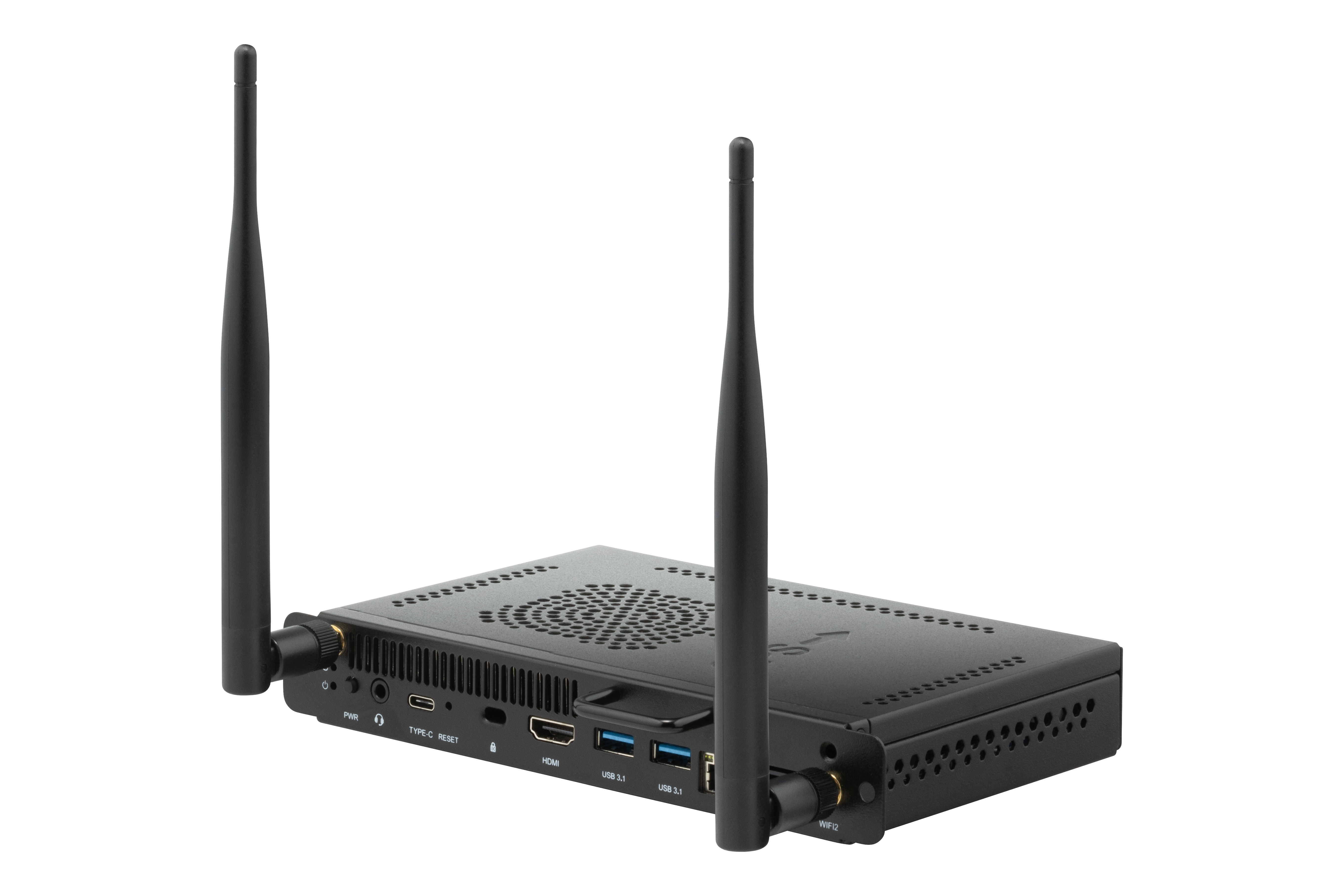

VPCF5-S55-G1
Key Features
- Light OS UEFI Shell Allows Scripting, File manipulation, and Obtaining System Information
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
- Powerful Intel® 11th Core Processors embedded TPM2.0
- Improved System Stability, Security, & Thermal Control
Product Description
Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-S55-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 16GB DDR4 memory, and 512GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.
Visit Us
- www.viewsonic.com
-
SOFTWARE
Besturingssysteem: UEFI Shell -
KERN
CPU: Intel® Tiger Lake Mobile Processor
Intel Gen11th core i5 CPU or later Gen. CPUGrafische afbeeldingen: Integrated Intel® Iris Xe Graphics (96EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP) -
GEHEUGEN
Type: DDR4 Capaciteit: 16GB -
OPSLAG
Afmeting: M.2 SSD Capaciteit: 512GB Interface: PCIE -
INPUT
MIC (microfoon): MIC-In&Line-Out two in one connector OPS Standard: x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1) -
OUTPUT
HDMI: x1 (Max 3840x2160@30Hz) Audio: MIC-In & Line-Out two in one connector -
LAN
RJ45: x1 (10M/100M/1000M) -
DRAADLOOS / BLUETOOTH
Draadloos / Bluetooth: Intel® Wi-Fi 6 AX201
WIFI 6 802.11 ax + BT5.2 -
USB
Type A: USB 3.1 x 2 / USB 2.0 x1 Type C: USB 3.1 Gen2 x 1 (Data Only) -
STROOM
Spanning: DC 12-19V/8A Max Consumptie: Max 90W -
OPERATING CONDITIONS
Temperatuur (º C): 0℃ ~ 40℃(working) Luchtvochtigheid: 10% ~ 90% @ 40°C Non-condensing(working) -
AFMETINGEN (B X H X D)
Fysiek (inch/mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm Verpakking (inch / mm): 10.23xx 7.87 x 3.15 in / 260 x 200 x 80 mm -
WEIGHT
Netto (lb / kg): 1.54 lb / 0.7 kg Bruto ( lb/kg): 2.65 lb / 1.2 kg -
REGULATIONS
REGULATIONS: CE EMC / LVD / CE RED / RoHS /REACH / WEEE / CB2018 -
VERPAKKINGSINHOUD
VERPAKKINGSINHOUD: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2
