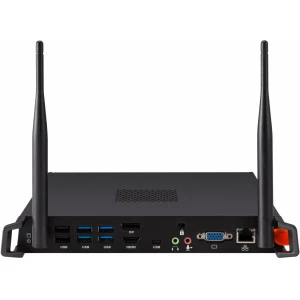

ViewSonic VPC16-WP-3 Windows Slot-in PC voor ViewBoard® interactieve displays

KERN

CPU:	Intel 8th Gen. coffee Lake series with vPro, TPM i5-8500 3.0GHz
Grafische afbeeldingen:	Integrated Intel® HD Graphics 530 Total Available Graphics Memory: 64GB Max Resolution up to 4096x2304@60Hz

GEHEUGEN

Type: 260-pin DDR4 SO-DIMM x 2

Capaciteit: 8GB (up to 32GB)
SOFTWARE

Besturingssysteem: Windows 10 Pro 64 bit
OPSLAG

Afmeting: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)

Capaciteit: 128GB SSD (up to 512GB)

Interface: M.2 -2242/2280
INPUT

MIC (microfoon): x1
OUTPUT

RGB/VGA: x1

DisplayPort: x1 (max. resolution 4096x2304@60Hz)

HDMI: x1 (max. resolution 3840x2160@24Hz)

Audio: x1 Earphone Out
LAN

RJ45: 1 x RTL8111(Gigabit)
DRAADLOOS / BLUETOOTH

Draadloos / Bluetooth: Intel 9260 or 9560 WiFi+BT5.0 Module dual band
USB

Type A: USB 3.0 x 4, USB 2.0 x 2

Type C: USB 3.1 x 1

ONDERSTEUNING MEDIAFORMAAT

Video formaat:	Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
Afbeeldingsformaat:	Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
Audio codec:	Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA

BUNDELSOFTWARE

Bundelsoftware: myViewBoard for Windows
QuickLaunch
Intel Unite
SureMDM
Nix Agent
STROOM

Spanning: AC 110-240V 50 / 60Hz

Consumptie: 95W
OPERATING CONDITIONS

Temperatuur (º C): -5°C to 45°C

Luchtvochtigheid: 10% ~ 90% @ 40°C Non-condensing.
AFMETINGEN (B X H X D)

Fysiek (inch/mm): 246.2*265.4*32.2mm

Verpakking (inch / mm): 350*310*90mm (1pc)
495*370*340mm (5pcs)
WEIGHT

Netto (lb / kg): 4.3lb / 1.95kg

Bruto ( lb/kg): 4.63lb / 2.1kg
VERPAKKINGSINHOUD

VERPAKKINGSINHOUD: 1. VPC16-WP
2. ViewSonic Wizard CD
3. QSG
UPC CODE

UPC Code: 76690700320 8

Temperatuur (º C):	-5°C to 45°C
Luchtvochtigheid:	10% ~ 90% @ 40°C Non-condensing.

Fysiek (inch/mm):	246.2265.432.2mm
Verpakking (inch / mm):	35031090mm (1pc) 495370340mm (5pcs)

Type:	260-pin DDR4 SO-DIMM x 2
Capaciteit:	8GB (up to 32GB)

Type A:	USB 3.0 x 4, USB 2.0 x 2
Type C:	USB 3.1 x 1

Spanning:	AC 110-240V 50 / 60Hz
Consumptie:	95W

Netto (lb / kg):	4.3lb / 1.95kg
Bruto ( lb/kg):	4.63lb / 2.1kg
