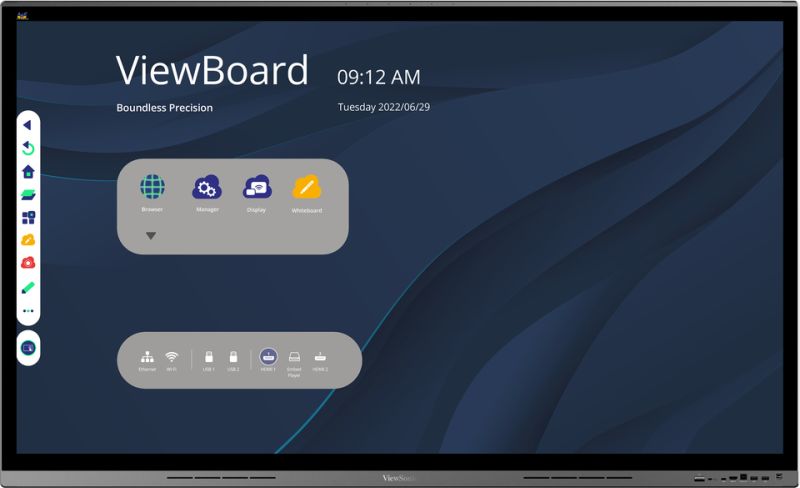

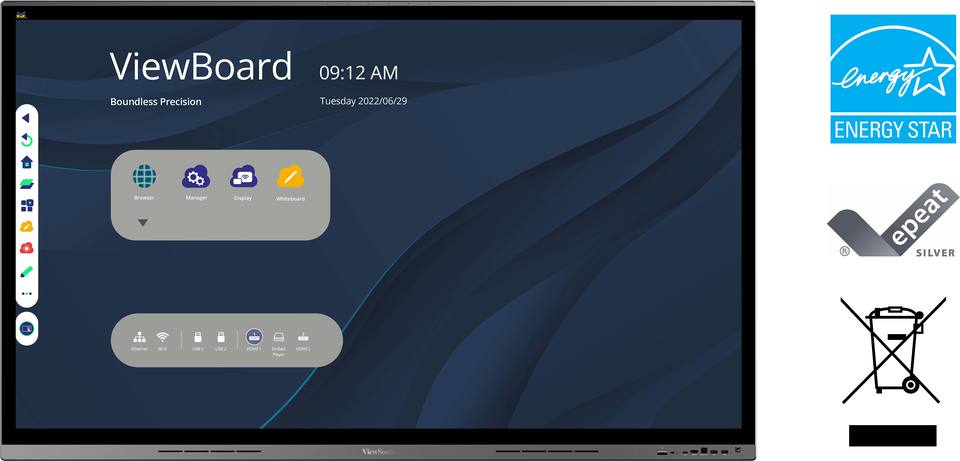

ViewBoard IFP6562
Un hub numérique de 65 pouces pour connecter les gens et les idées
- Superb 4K UHD display panel with UFT+ technology, and 20-points multi-touch
- One-stop premium conference solution with compatible ViewSonic conference speakerphone and camera
- Comprehensive I/O ports, vCastSender, and myViewBoard display
- Built-in USB Type-C for simultaneous 65W fast charge and visual display
- Centralised IT management and content display by myViewBoard Manager
SPÉCIFICATIONS
- AffichageTaille de l'écran: 65"
Type de dalle: TFT LCD Module with DLED Backlight
Surface d'affichage (mm): 1428.48 (H) x 803.52 (V)
Rapport d'aspect: 16:9
Résolution: UHD 3840x2160(Pixels)
Couleurs: 1.07B (8bits + FRC)
Luminosité: 450 nits
Durée de vie du rétroéclairage: 50,000 Hours (Min.)
Rapport de contraste: 5000:1 Typ.
Temps de réponse: 6.5ms
Angles de visualisation: H = 178, V = 178 typ.
Traitement de surface: Hardness: 9H pencil
Cadre: Top: 38 mm
Bottom: 63.9 mm
Left: 30.5 mm
Right: 30.5 mm
Disclaimer: 50,000 hours backlight life at 8 hours of use per day - Plate-formeProcesseur: Dual core A73+Dual core A53
RAM: 3GB DDR4
Stockage: 32GB eMMC - TouchType/ Technologie: Ultra Fine Touch Plus Technology (Projected Capacitive)
Résolution tactile: 32767 x 32767
Point de contact: 20
- INPUTHDMI: x4
RGB / VGA: x1
Audio: 1x PC-Audio IN
MIC(Microphone): Full band 6-element MEMS microphone array
RS232: x1
OPS: x1
WiFi: x1 - OUTPUTHDMI: x1
Audio: x1
SPDIF: x1 - LANRJ45: x2
- USBType A: x6
Type B: x2
Type C: x1 - HAUT-PARLEURS12W x 2 + 15W x 1 Subwoofer
- Logiciels associésLogiciel d'annotation de base: myViewBoard WhiteBoard for Android
Logiciel d'annotation Pro: myViewBoard WhiteBoard for Windows (Embedded in Windows Slot-in PC)
Présentation Sans Fil: ViewBoard Cast & myViewBoard Display & AirServer - Fonctions spécialesPartage simple du réseau local entre l'IFP et l'appareil encastré: Yes
- AlimentationTension: 100-240VAC +/- 10% Wide Range
Consommation: On: 115W(Typ.) / Off: < 0.5W - OPERATING CONDITIONSTempérature (º C): 0°C to 40°C
Humidité: 20% ~ 80% RH non-condensing - DIMENSIONS (L x H x P)Physique (pouces / mm): 58.7 x 35.7 x 3.1 in / 1492 x 907 x 78 mm
Emballage (pouces / mm): 63.3 x 39.8 x 8.5 in / 1607 x 1010 x 215 mm - WEIGHTNet (lb / kg): 82.45 lb / 37.4 kg
Brut (lb / kg): 107.8 lb / 48.9 kg - CONTENU DE L'EMBALLAGE1. Power cable
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. Passive stylus x 2
6. Quick Start Guide
7. Compliance statement
8. RS232 adaptor
9. Plate
10. Clamp x 5
11. Screw x 8
12. HDMI cable
13. Touch USB cable - PC compatible à encastrerVPC25-O-B series, VPC27-O-B series
COMPATIBLE AVEC VIEWBOARD IFP6562
