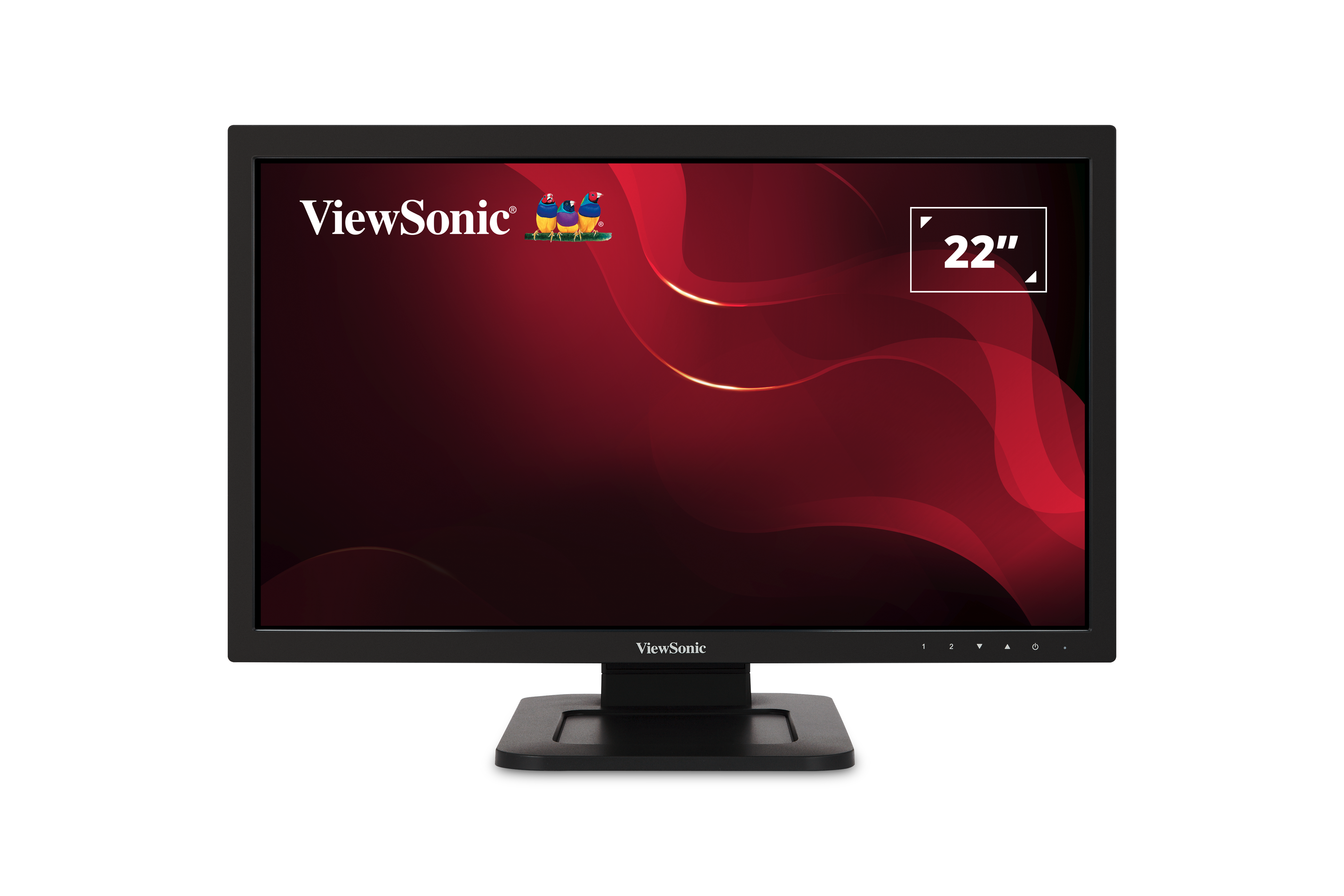

LCD Display
TD2210
Key Features
- Full HD 1080p resolution
- 20M:1 Dynamic Contrast Ratio
- VGA and DVI inputs
- Dual Integrated Speakers
- Compatible with Windows® 7/8/10
Product Description
The TD2210 is a 22” (21.5” viewable) Full HD monitor with resistive touch technology. With a robust, pressure-sensing touchscreen that is resistant to screen contamination, the TD2210 is ideal for use in retail, POS, and commercial environments. Resistive touch technology on the TD2210 is also fully functional in gloved environments and compatible with styluses. Featuring stunning Full HD resolution and 20M:1 MEGA Dynamic Contrast Ratio, the TD2210 delivers extremely sharp and crisp images. Flexible connectivity options include VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Industry-leading warranty protection and ViewSonic product quality makes this durable touch display a great long-term investment for a variety of environments.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: TN Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 200 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 5ms Viewing Angles: 170º horizontal, 160º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ) Pixel Size: 0.248 mm (H) x 0.248 mm (V) Touch Screen: Resistive, 1-point single-touch Surface Treatment: Anti-Glare, Hard Coating (≧3H) Cover Glass Thickness: 1.8mm -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 DVI-I: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 11.5W Eco Mode (optimized): 14W Consumption (typical): 17.5W Consumption (max): 24.5W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 Cable Organization: Yes -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 83KHz Frequency Vertical: 50 ~ 76Hz -
VIDEO INPUT
Digital Sync: TMDS - DVI-D Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 10.5 Net Without Stand (lbs): 8.7 Gross (lbs): 14.4 -
WEIGHT (METRIC)
Net (kg): 4.8 Net Without Stand (kg): 3.9 Gross (kg): 6.5 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 22.4 x 16.8 x 8.4 Physical (in.): 20.1 x 14.3 x 9.4 Physical Without Stand (in.): 20.1 x 12.2 x 2.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 570 x 427 x 214 Physical (mm): 512 x 364 x 240 Physical Without Stand (mm): 512 x 311 x 64 -
GENERAL
PACKAGE CONTENTS: TD2210 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards
