Meeting Solution for Microsoft Teams Rooms
MRC1010-TN
Key Features
- High-clarity anti-glare 10.1” Full HD touchscreen
- Direct HDMI Ingest support for BYOD presentations
- Auto on/off with a human presence sensor for an instant meeting start and battery saving
Product Description

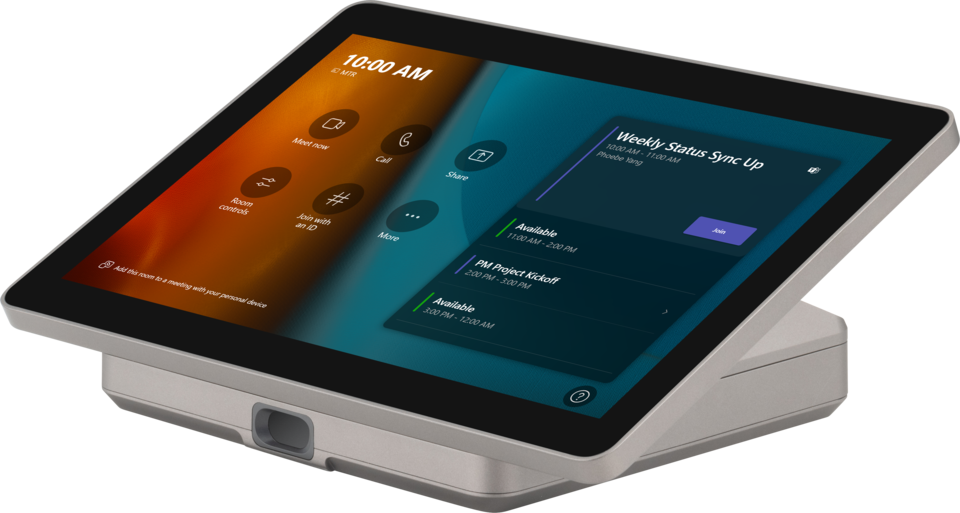

The MRC1010-TN Teams Rooms Touch Console is the cornerstone of the ViewSonic Meeting Space Solution for Microsoft Teams Rooms. Tailored to enhance collaboration in meeting spaces of diverse sizes, it features a 10.1" high-clarity anti-glare FHD touch display with direct HDMI Ingest for smooth, seamless, and efficient BYOD presentations. Integrating a human presence sensor, the console automatically activates from sleep mode once the room has been entered, ensuring that your meeting is ready to commence the moment you are.
- USB-C for Teams Rooms PC
- HDMI In
- USB 2.0
- Audio Out
- Cable Management
Visit Us
- www.viewsonic.com
-
DISPLAY
Size: 10.1 inch Resolution: 1920*1200 Refreshing Frequency: 60Hz NTSC: 72% Back Light Unit: ELED Brightness with glass(typ): 300cd/m ² Life Time: 20000Hrs -
OPERATING SYSTEM
System Version: Non-OS -
TOUCH SYSTEM
Sensing Type: Capacitance touch recognition Touch Tool: Finger Accuracy: Middle：±1 mm；Edge：≤2.5mm Touch Point: 10 points touch Touch down latency: <25 ms -
POWER
Power Requirements: 12V/1.5A(Via TYPE-C) Overall Power (Max.): 18W Standyby Power: ≤0.5W -
I/O PORT
USB 2.0: *1 HDMI Ingest: *1 Audio out: *1, 3.5mm interface TYPE-C: "1
(DP in, USB downstream(3.0: HDMI signal, 2.0: Touch signal)" -
SENSOR
Motion Sensor: PIR *1
(Support 24/7 continuous working when screen is off) -
PHYSICAL SPECIFICATIONS
Dimension LxHxD: 9.63 x 6.3 x 3.85 (in.)
245 x 160 x 98 (mm)Dimension (package) LxWxH: 14.53 x 9.65 x 4.76 (in)
369 x 245 x 121 (mm)Net Weight: 0.93kg (2.05lb.) Gross Weight: 1.95kg (4.3lb.) -
ACCESSORIES
Quick Start Guide: *1 HDMI cable: 1 * 1.5M Type-C cable: 1* 5M
