“ViewSonic's M1 Mini is a highly portable palmtop projector that counters its modest brightness with a cleverly designed stand, decent image quality for photos and videos, and the ability to play music files.”
Archived

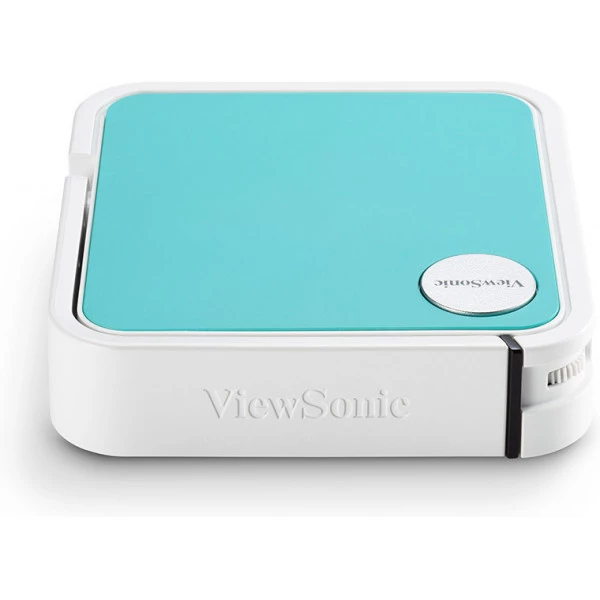

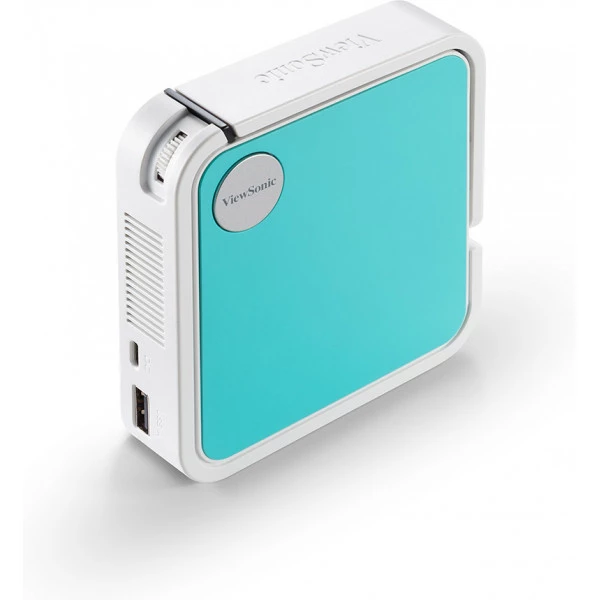

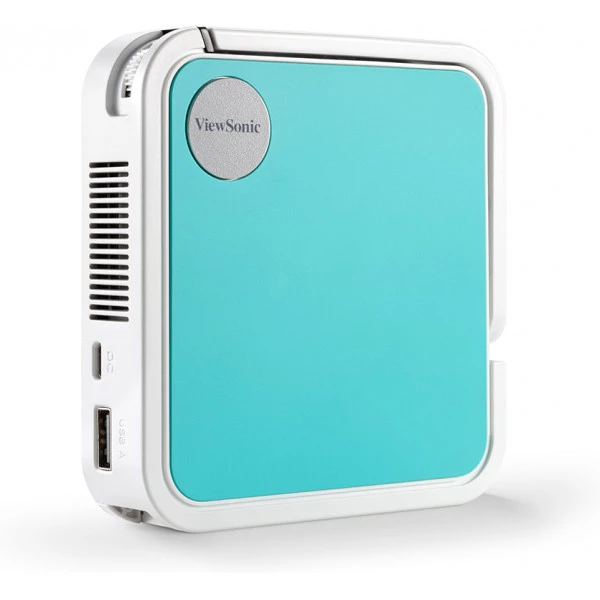

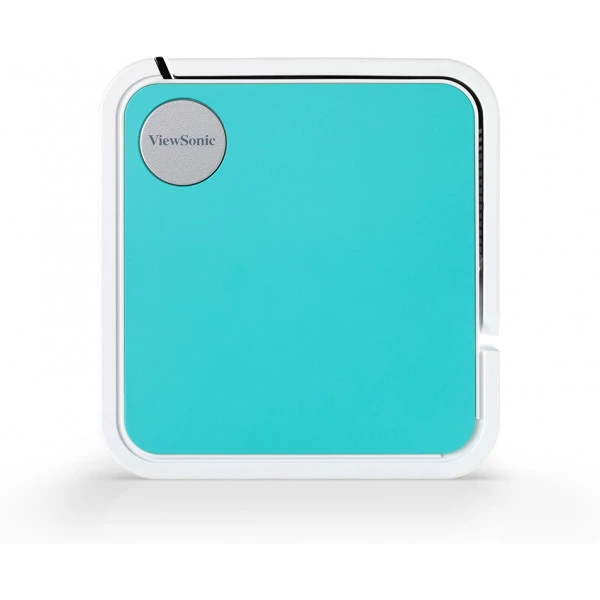

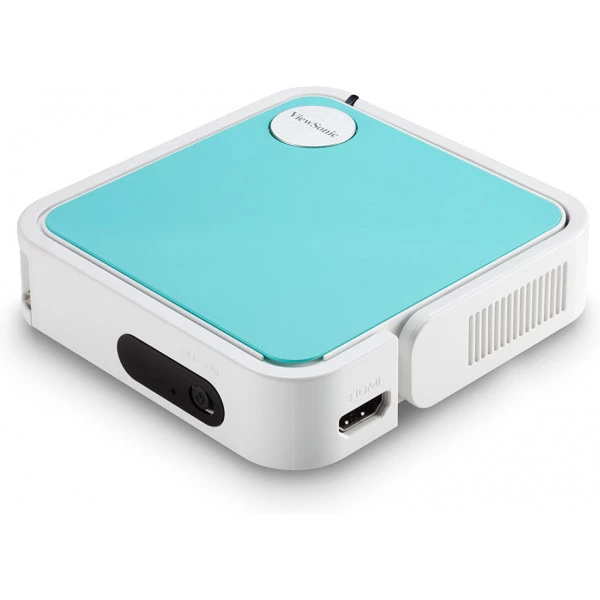

M1 mini
LED Pocket Projector with JBL® Speaker

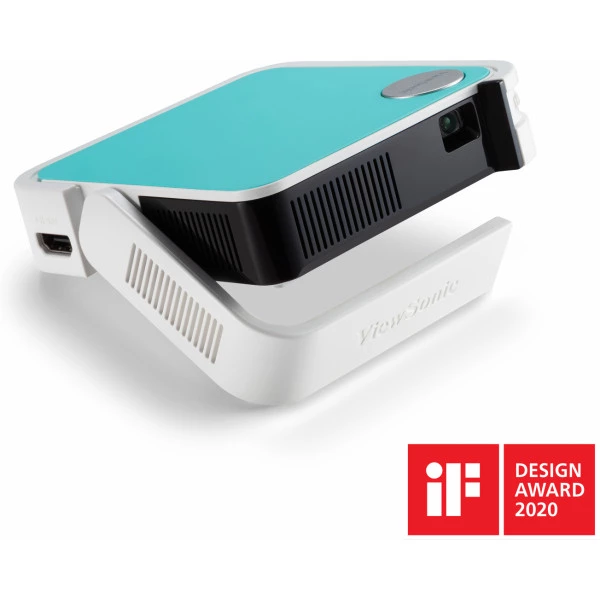

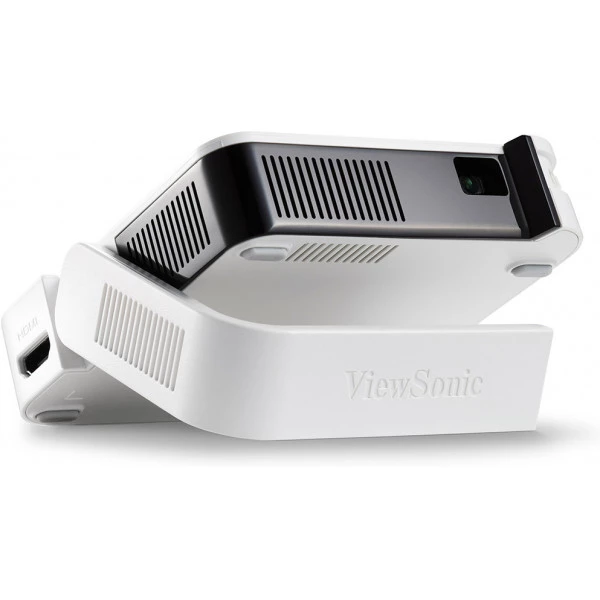

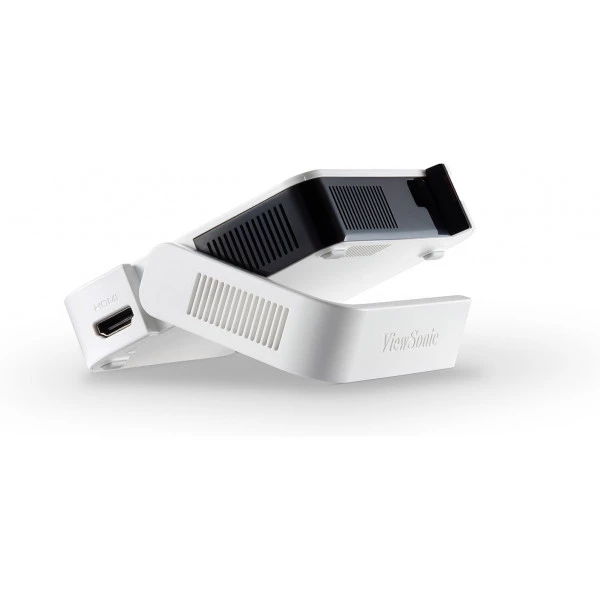

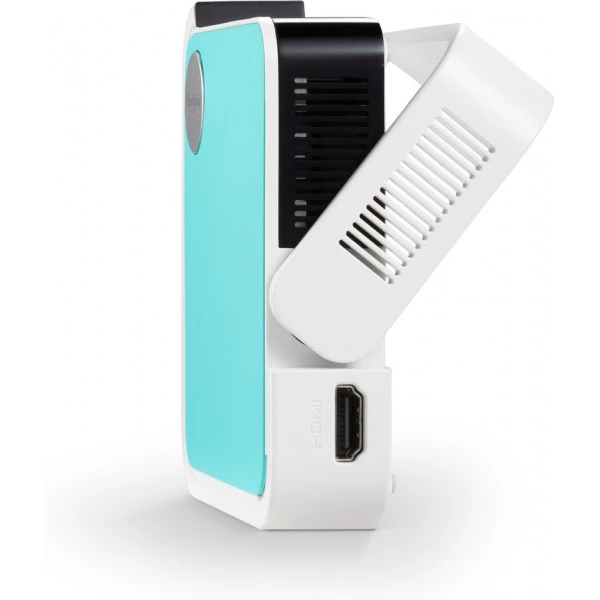

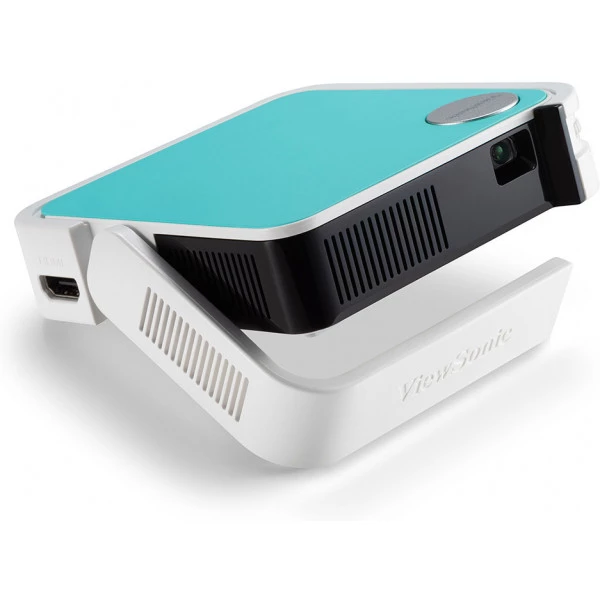

- Smart stand that allows for ceiling projection

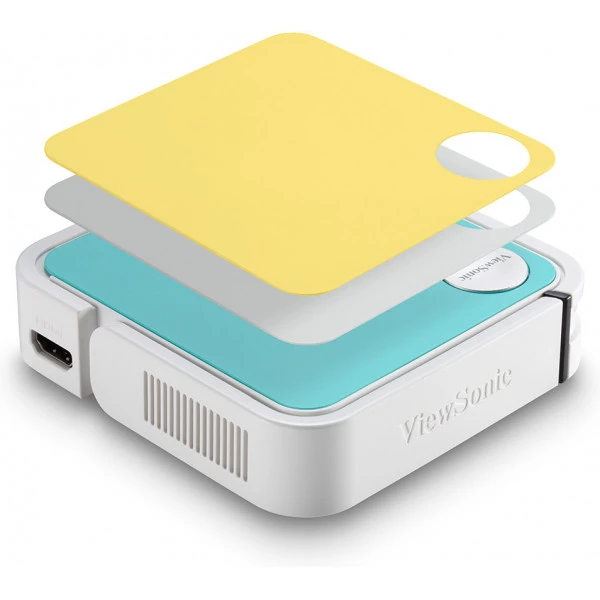

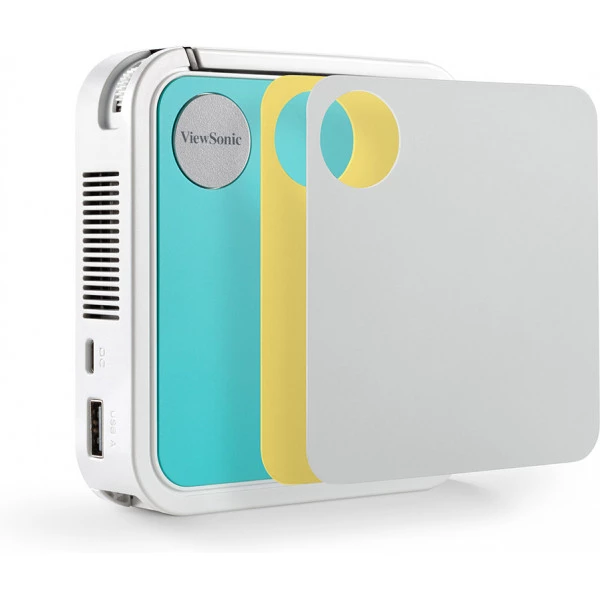

- Swappable top plates to suit your mood
- Embedded JBL speaker for sensational audio
- Built-in battery for fun on the go

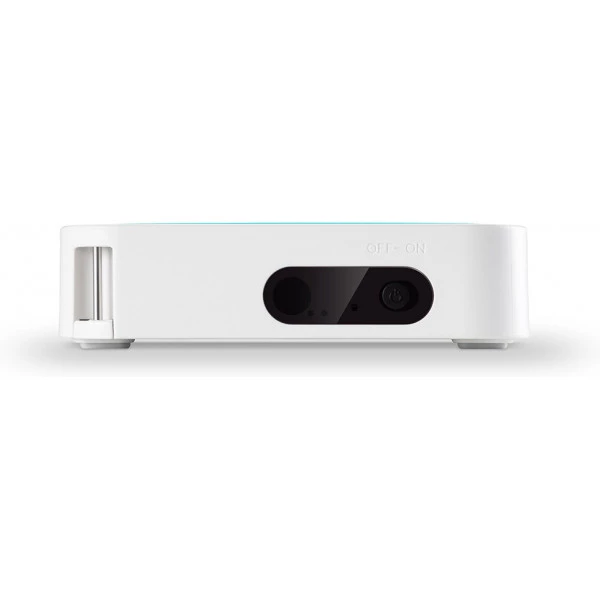

- Instant power on to enjoy your favorite shows right away
REVIEWS
SPECIFICATIONS
- SpecificationProjection System: 0.2" WVGA
Native Resolution: 854x480
Brightness (LED Lumens): 120 Lumens
Contrast Ratio: 500:1
Display Colour: 1.07 Billion Colours
Light Source Type: LED
Light Source Life (Normal): up to 30000
Lamp Watt: RGB LED
Lens: F=1.7, f=7.5mm
Projection Offset: 0+/-5%
Throw Ratio: 1.2
Optical Zoom: Fixed
Image Size: 24"-100"
Throw Distance: 0.64m-2.66m
(39" @1m)
Keystone: +/- 40° (V)
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15h-135kHz

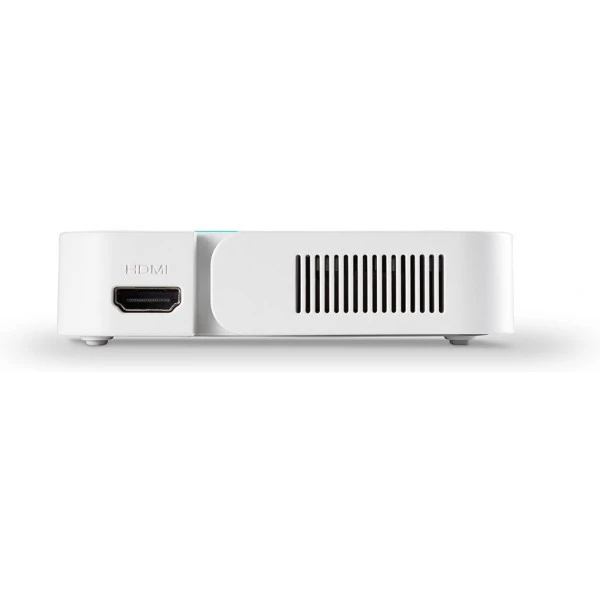

Vertical Scan Rate: 23-120Hz - InputHDMI: 1
USB Type A: 1
(USB2.0 Reader, share with power)
Micro USB: 1 (DC in) - OutputSpeaker: 2W Cube x 1
USB Type A (Power): 1
(USB2.0 - 5V/ 1A,
share with USB reader)
- OthersPower Supply Voltage: 5V/2A
Power Consumption: 10W Standby : <0.5W
Operating Temperature: 0~40℃
Net Weight: 0.28Kg
Dimensions (WxDxH) with Adjustment Foot: 110x104x27mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages - Standard AccessorySwappable plate: 3
USB A to Micro USB Cable: 1 (1m)
Remote Control: 1
QSG: 1
