VG1655 16” Portable Monitor

VG1655 16” USB-C Portable Business Monitor

Compact, lightweight and portable
Easily extend display to a larger screen from mobile devices
60W USB-C one cable solution for multimedia transfer and power charging
Elegant, durable metallic design with a foldable stand

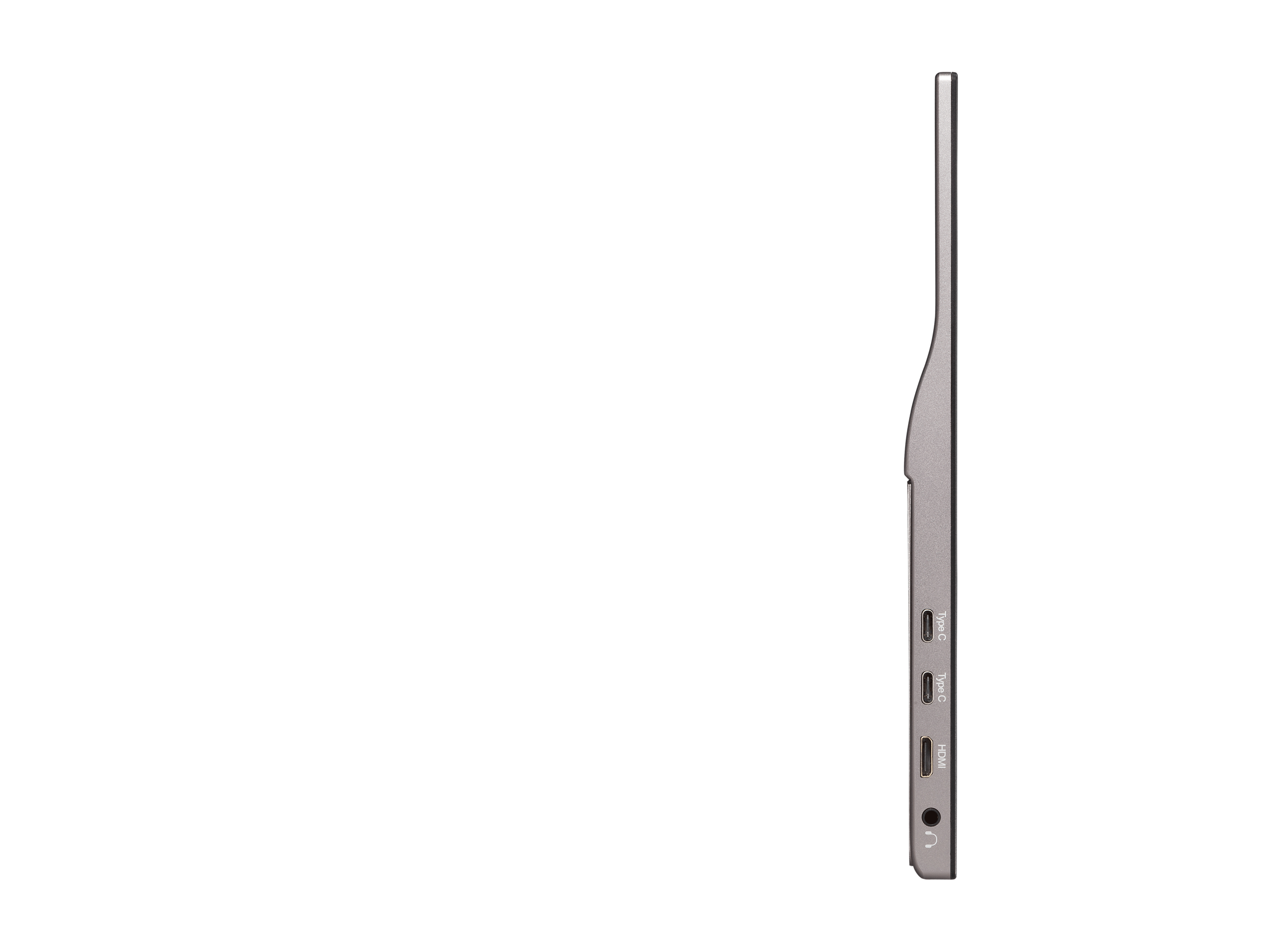

Flexible display setup – work at any angle

Sales Enquiry Share

OVERVIEW

The ViewSonic VG1655 is a portable 16” Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, and aluminum stand, reliability is embodied in the design.

SPECIFICATIONS

Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.2M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.551ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type C DisplayPort Alt mode only : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video & data)

Audio
Internal Speakers: 0.8Watts x2
Power
Eco Mode (Conserve): 5.1W
Eco Mode (optimized): 6W
Consumption (typical): 7W
Consumption (max): 7.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: 15 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Ergonomics
Tilt (Forward/Back): 20º / 60º
Weight (imperial)
Net (lbs): 1.8
Net Without Stand (lbs): 1.8
Gross (lbs): 4.8
Weight (metric)
Net (kg): 0.82
Net Without Stand (kg): 0.82
Gross (kg): 2.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 13.99 x 8.8 x 0.61
Physical Without Stand (in.): 13.99 x 8.8 x 0.61

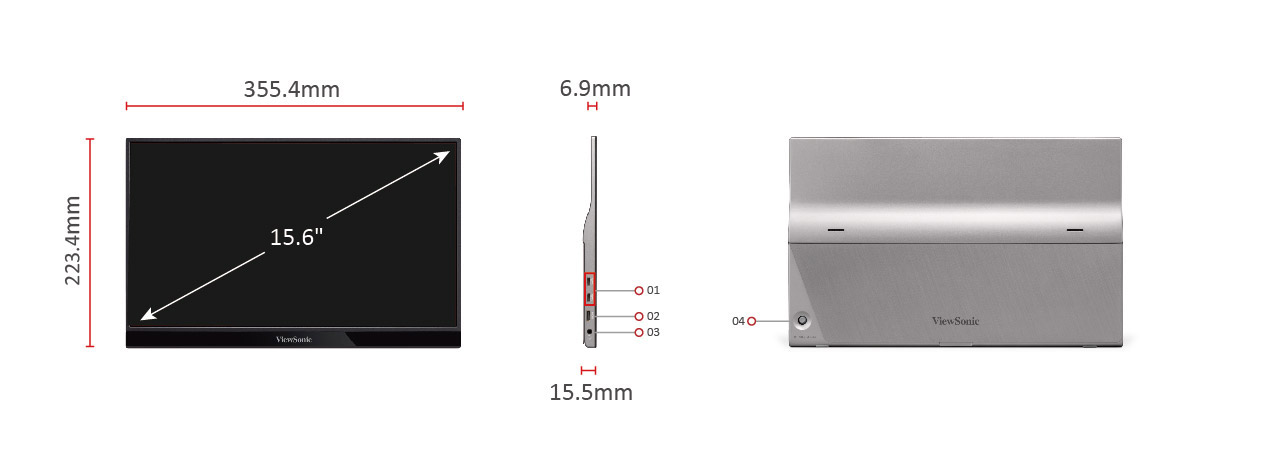

Dimensions (metric) (wxhxd)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355.46 x 223.44 x 15.5
Physical Without Stand (mm): 355.46 x 223.44 x 15.5
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE(Adaptor), BIS
PACKAGE CONTENTS: VG1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
