Direct View LED

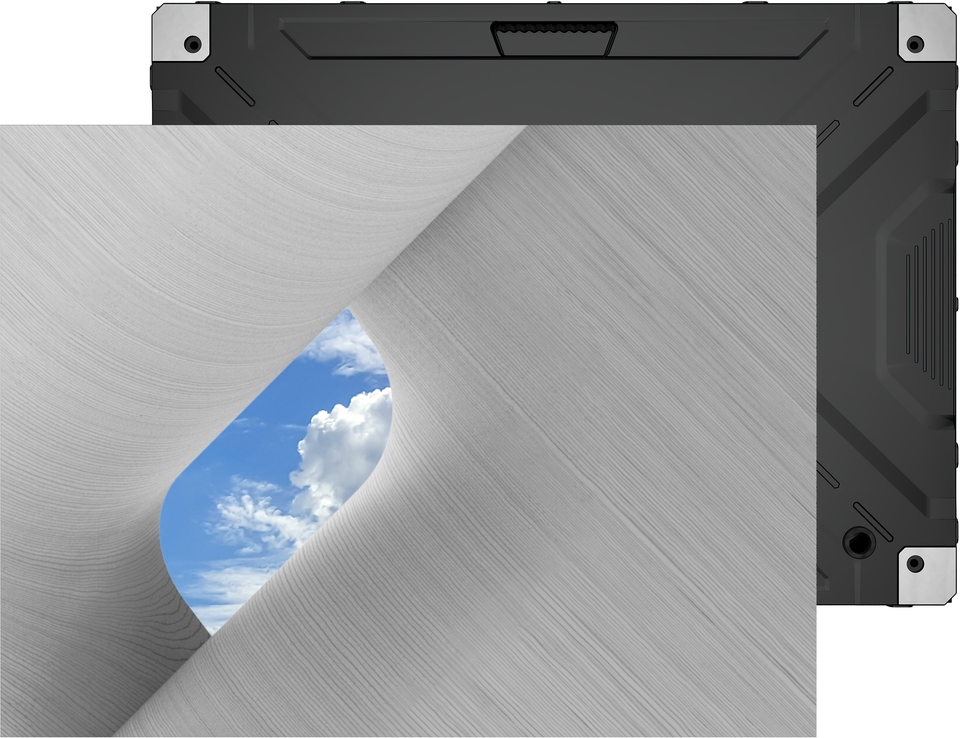

LDC031-180
Key Features
- Customizable screen size with All-in-One design for hassle-free installation
- Anti-collision, dustproof, and moisture-proof through GOB surface treatment
- Centralized and efficient management via LAN control
- Detachable system control box for minimalistic aesthetics and easy access
- Ultra-slim design that seamlessly blends into any space
Product Description
The ViewSonic LDC series is an innovative, customizable All-in-One LED display that offers flexible sizing and effortless installation—all in a single solution. Combine the LDC031-180 LED cabinet to create video walls in diverse aspect ratios and sizes, delivering compelling digital signage that brings your concepts to life. Its all-in-one design ensures a hassle-free installation process and intuitive operation. Using Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules provide enhanced protection against collision, dust, and moisture — making it ideal for public spaces such as lobbies, shopping malls, and transportation hubs. With its slim 31mm thickness and a control box that can be detached to achieve a 99% screen-to-body ratio, this premium display offers an exceptional viewing experience with sleek aesthetics. Complete with centralized management through LAN connectivity to enhance operational efficiency.
- Speakers
- HDMI Out
- SPDIF Out
- HDMI In*4
- LAN
- Audio Out*2
- IR Interface
- Light Senor
- IR Receiver
- USB-C
- USB-A 3.0
- USB-A 2.0
- Menu Control:Setting
- Menu Control:Enter
- Menu Control:Brightness Level
- Power Button
- Indicator Light
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Screen Size: 31.5" Display Area (mm): 320 (H) x 160(V) Native Resolution: 348x261 Panel Technology: Direct view LED LED Package Type: SMD 3 in 1 Bonding Wire: Copper Pixel Pitch (mm): 1.8 Refresh Rate: 3840Hz Brightness (max.): 600 nits (100 levels adjustable) Contrast Ratio (typ.): 6500:1 Orientation: Landscape Viewing Angles (typ.): H = 170, V = 170 LED Lifetime (typ.): 100,000 Hours Local Storage: Total 32GB
(26GB available storage)Embedded OS: Android 9.0 Resolution Support: VGA(640 x 480) to 4k(3840 * 2160@60hz) HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p Horizontal Frequency: 31K-94kHz Vertical Scan Rate: 56-85Hz -
INPUT
HDMI: x4
(HDMI 2.0, HDCP 2.2)
(internal x3 + external x1)USB Type A: x2
(USB3.0 x1, USB2.0 x1)RJ45 Input (Internet): x3
(internet x2, control x1)IR in: x1 Wi-Fi Input: 2.4G/5G Hz USB Type C: x1
(data only) -
OUTPUT
HDMI out: x1
(HDMI 1.4, HDCP 1.4)
(internal x1)Speaker: 30Wx2 Audio out (3.5mm): x2 USB Type A (Power): Shared with USB input
(5V/0.9A x1, 5V/0.5A x1, USB-C 5V/1A x1) -
CONTROL
RJ45 (LAN control): x1(shared with internet) USB Type A (Services): x1(shared with USB A input) RS232 (DB 9-pin female): x1 IR Receiver: x1 -
OTHERS
Power Supply Voltage: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz
(vary by country) (TBD)Power Consumption: 37W (typ), 105W (max) pre cabinet
< 0.5W (Off) (TBD)Operating Temperature: 0~40℃ LED Module Quantity: 6 pre cabinet Ingress Protection Rating: IP54(Front) Net Weight: 6.2kg pre cabinet Screen Dimensions (WxHxD): 25.2 x18.9x1.2 inches pre cabinet
(640 x 480 x 31mm)
(TBD) -
STANDARD ACCESSORIES
Power Cord: x1 LAN Cable (Cat 5A): x1 IR Extender Cable: x1 Remote Control: x1 QSG: x1 (Installation guide) Wall Mount: x1 Spare Parts: LED PCB Unit x7% Maintenance Tool: LD-MK-004 x1 -
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-004 Floor Stand: LD-STND-009
(support 4x4/5x4/6x4)ViewBoard Cast Button(USB-C): VB-WPS-001 ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
