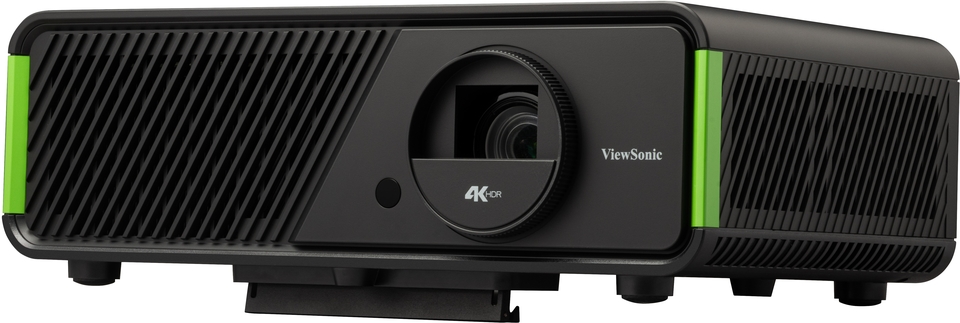

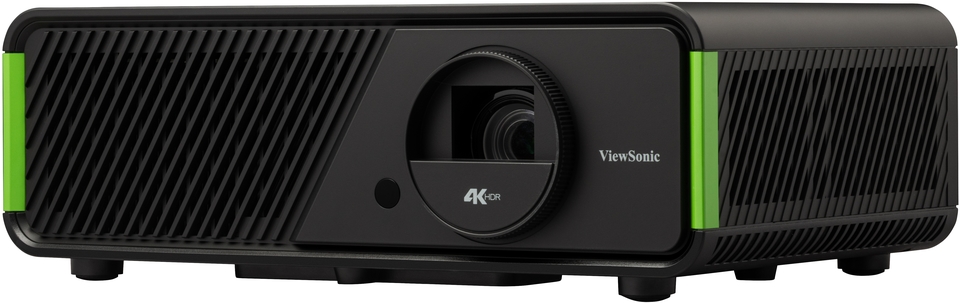

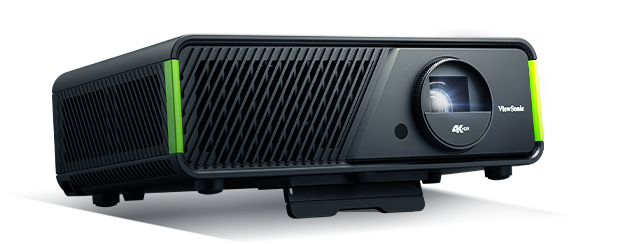

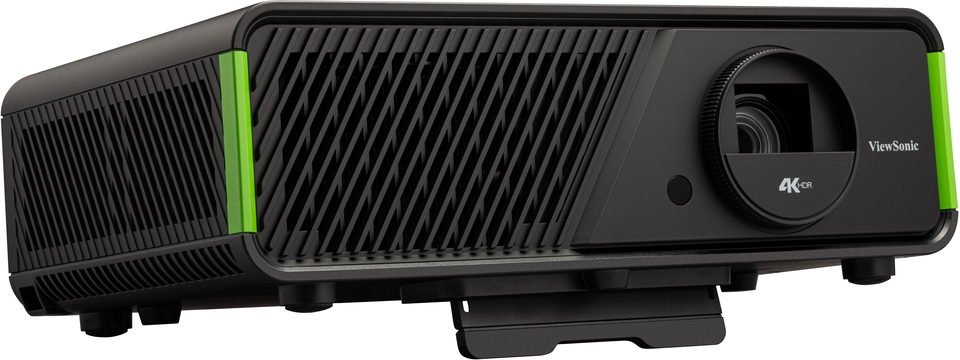

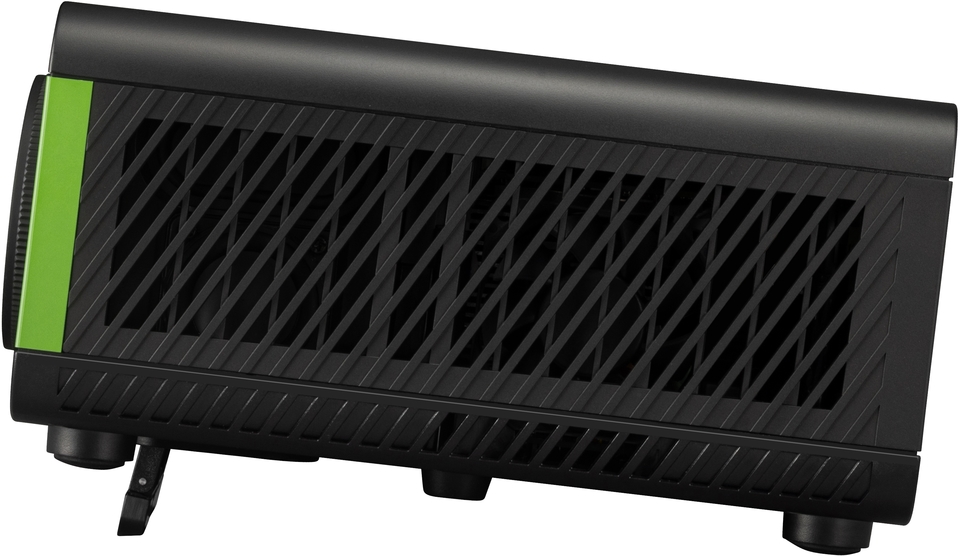

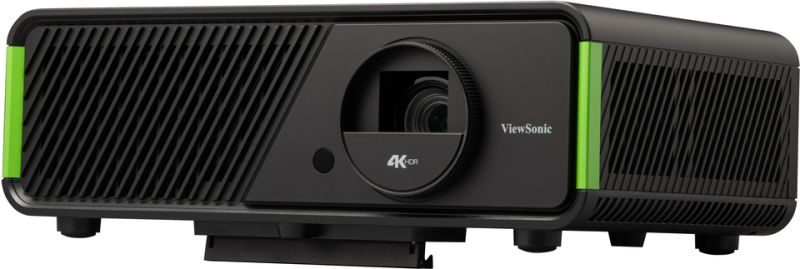

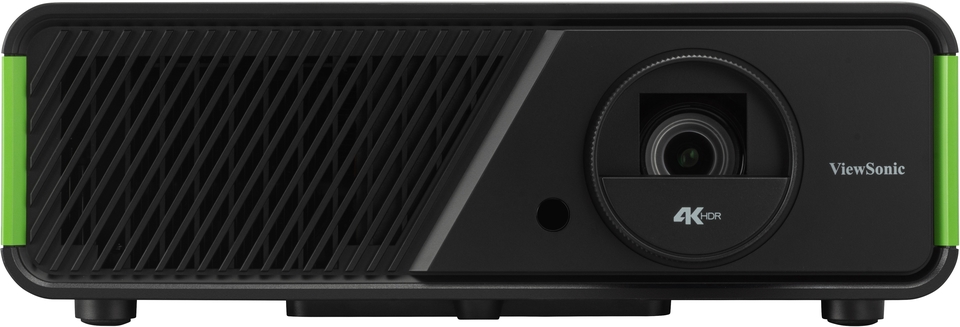

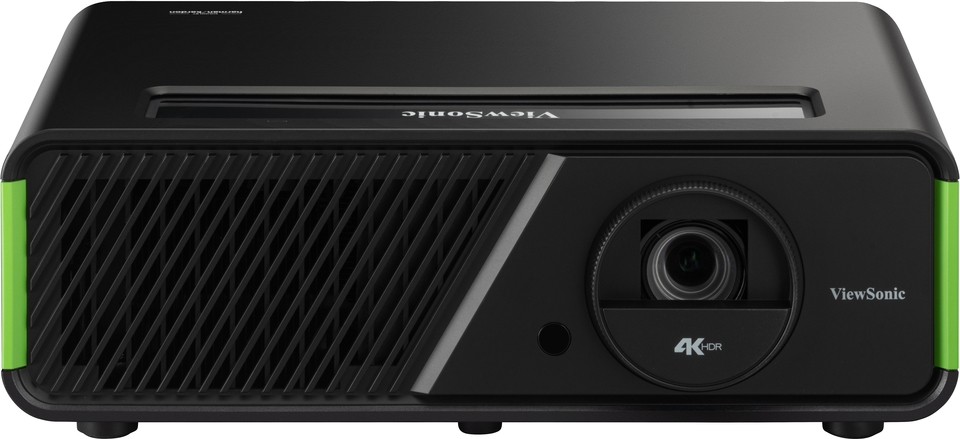

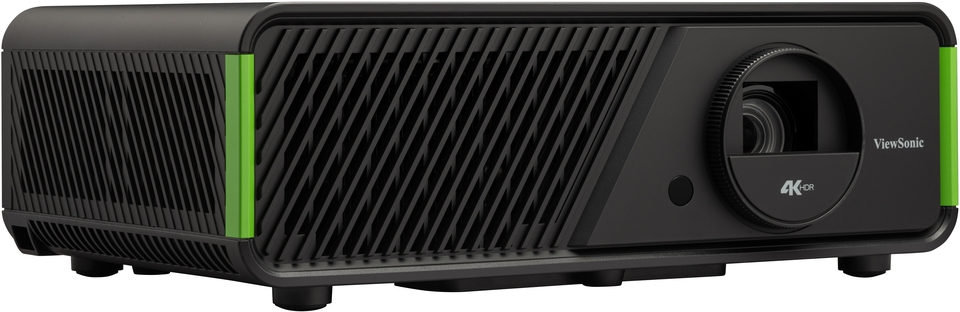

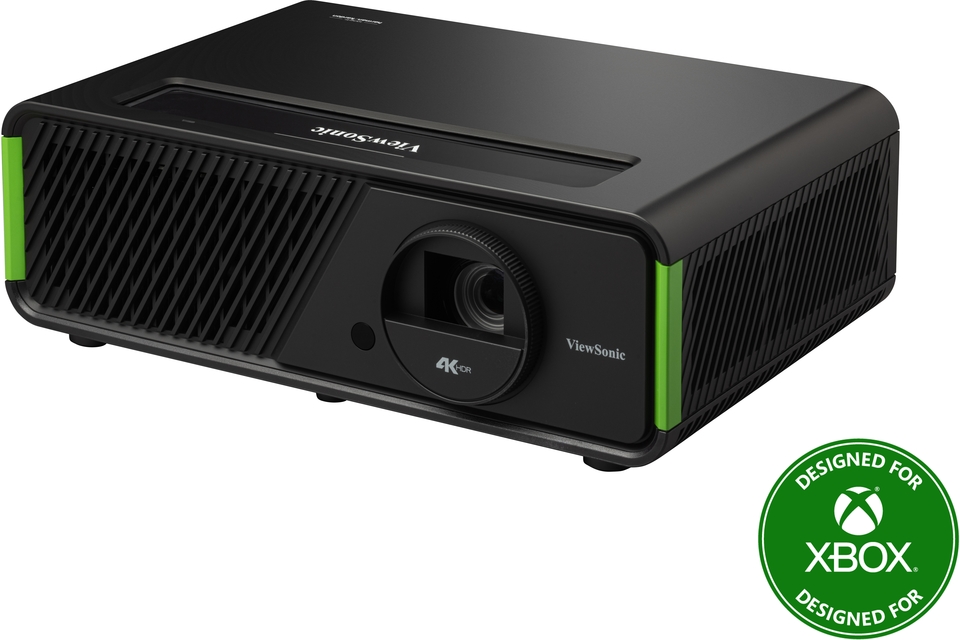

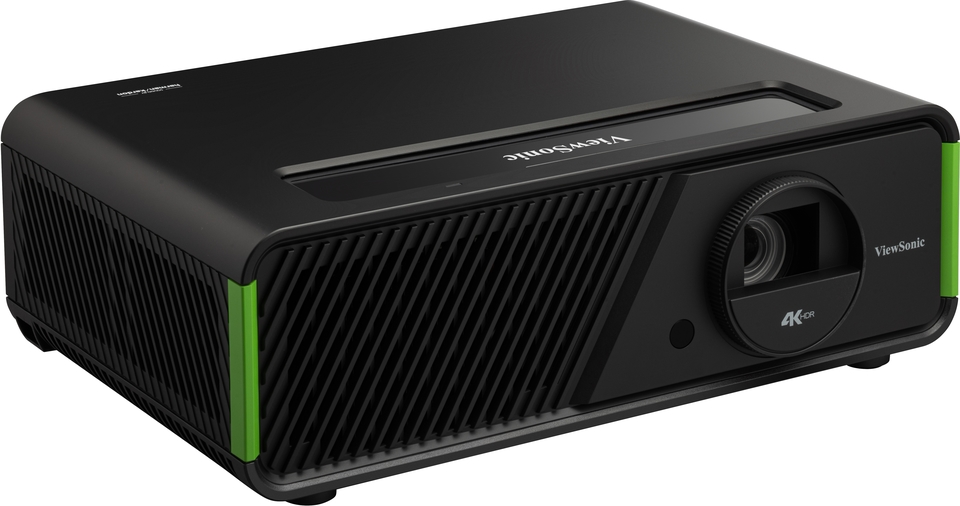

X1-4K Pro
4K HDR Smart LED Home Projector with Built-in Google TV
- "Designed for Xbox" with 1440p @120Hz and 4.2ms ultra-fast input for an unrivaled gaming experience
- Clear viewing day and night: 3,300 LED Lumens, high native contrast by a 0.65" DMD chip

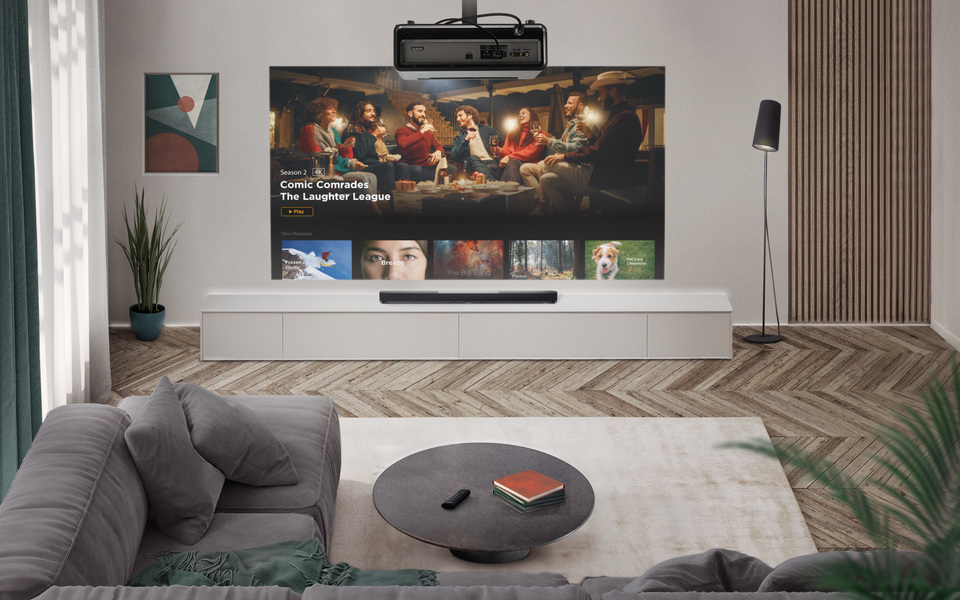

- Easy streaming with built-in Google TV and native Netflix app
- True 4K HDR immersive visual experience
- Theater-level sound by Harman Kardon speakers
OVERVIEW

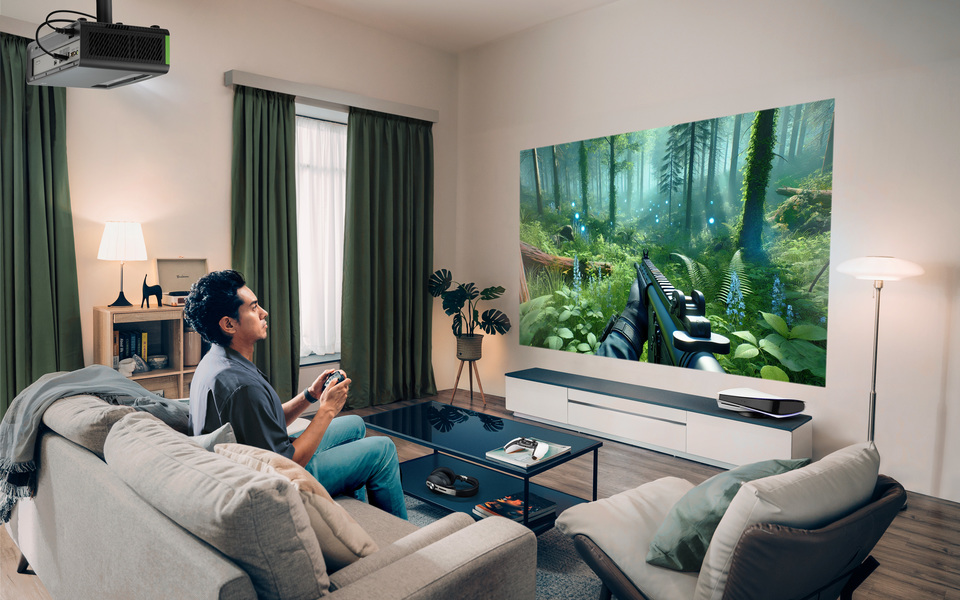

Experience gaming like never before with the ViewSonic X1-4K Pro. This "Designed for Xbox" projector delivers stunning 1440p resolution at a 120Hz refresh rate on a 100+ inch screen, transforming gaming sessions into a larger-than-life experience. It also elevates home entertainment with built-in Google TV and a native Netflix app for seamless streaming, harmonizing 4K HDR visuals with cinematic audio from Harman Kardon speakers for an enthralling audiovisual experience. Advanced 3rd generation LED technology ensures brilliant image quality with 3,300 LED lumens of brightness, vibrant colors covering 125% of the Rec. 709 spectrum, and high contrast ratio from a 0.65” DMD chip. Easy installation features include vertical lens shift, 1.3x optical zoom, and H/V keystone with 4-corner adjustment for side projection. HDMI eARC and Dolby/DTS support enhance surround sound for an immersive, cinema-like experience.
Bigger Chip, Higher Contrast,
Deeper Immersion
The projector takes your gaming experience to new heights with its advanced Texas Instruments 0.65-inch DMD chip, boasting a higher native contrast ratio than the conventional 0.47-inch chip. Rediscover your favorite movies and games in a new light, reveling in the stunning depth of deeper blacks and the vivid detail of every shade in dark scenes.
Ultimate Viewing
Experience with 4K HDR
Enjoy the crystal-clear detail of true Ultra HD and feast on dynamic visuals, thanks to HDR and 3D support. Let the 8.3 million pixels of the projector's 4K resolution bring movies, sports, games, and all your favorite streaming content to life.
Advanced 3rd Generation LED Technology
Enhanced Brightness
3,300 LED Lumens for brilliant images anytime
Maintenance-Free
60,000 hours lifespan
Eco-Friendly
Mercury-free for a greener and safer future
Energy-Saving
Less power consumption with ams OSRAM's Ostar Projection Power
Vibrant Colors
125% Rec.709 wide color gamut
*Learn more about the difference between ANSI Lumens and LED Lumens
**The lifetime of the third-gen LED light source of the projector has been tested by ams OSRAM,
based on industry-standard TM-21 simulation method, using LM-80 test data, L70/B50 criteria and their internal aging models.

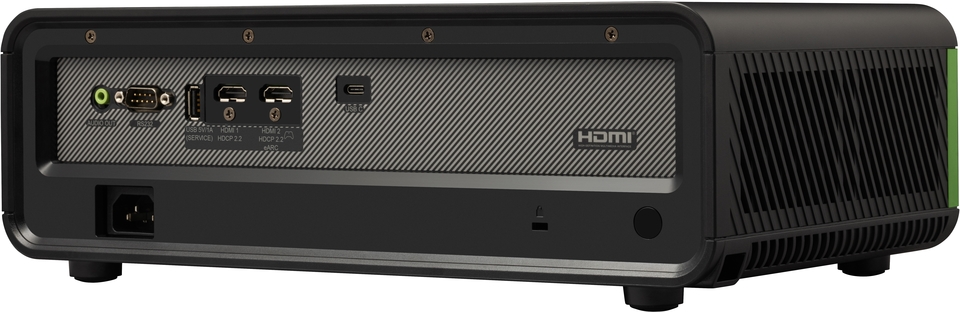

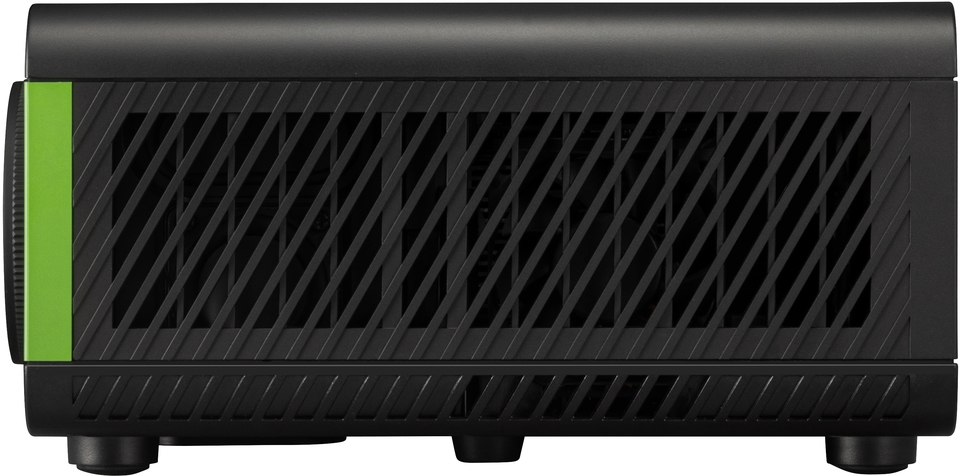

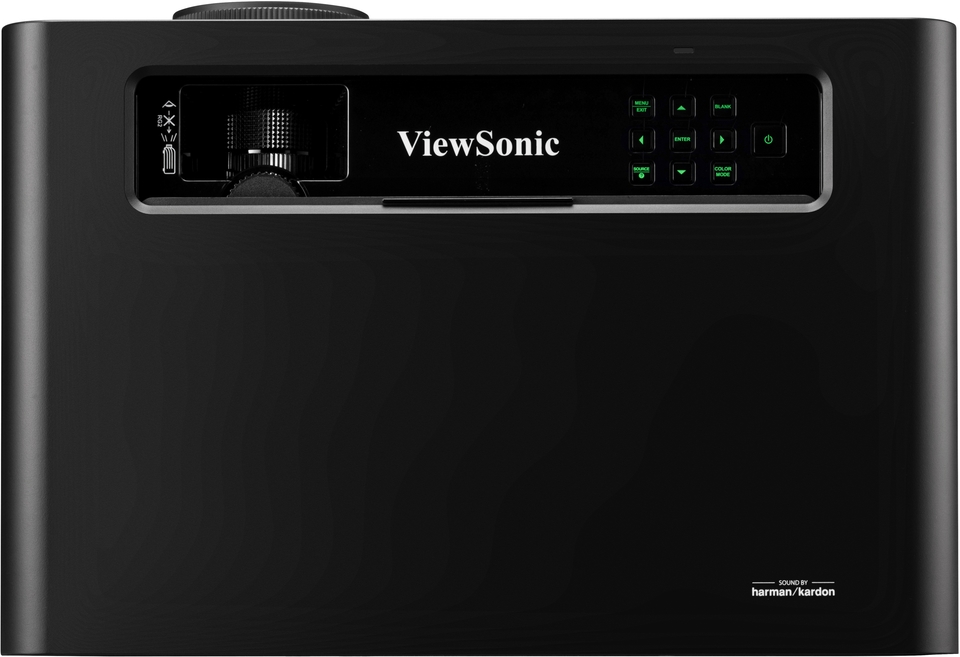

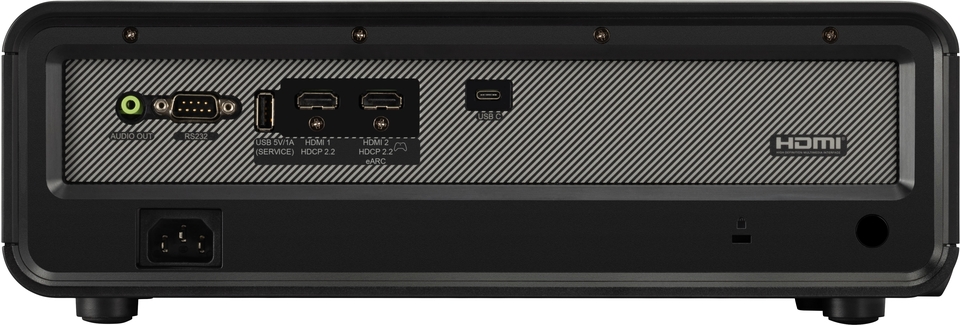

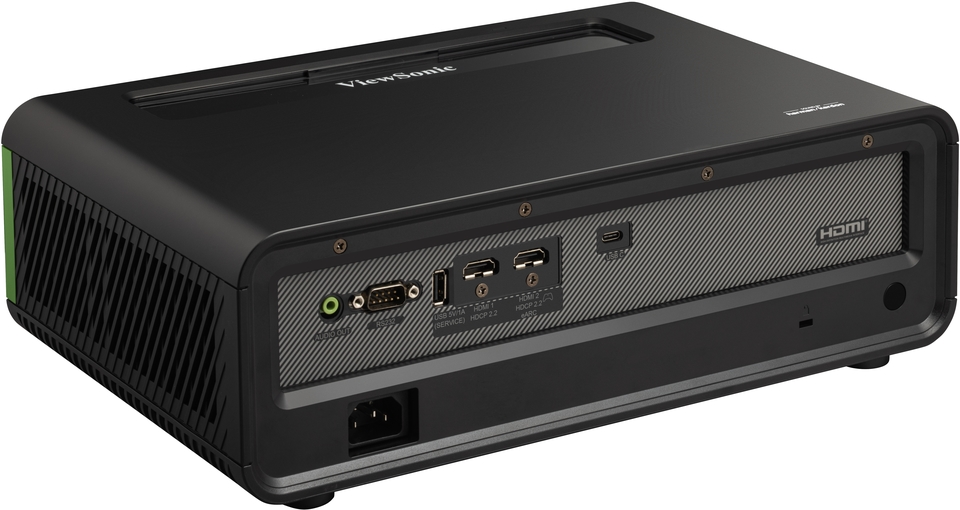

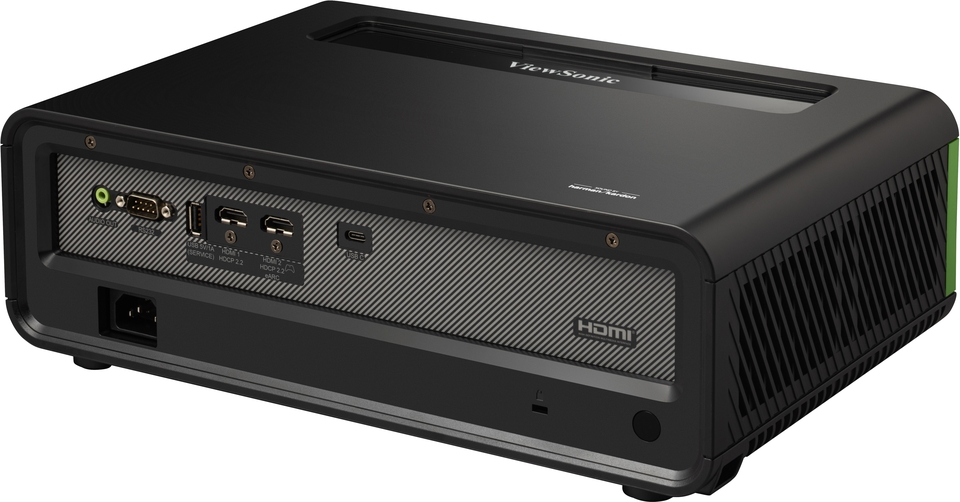

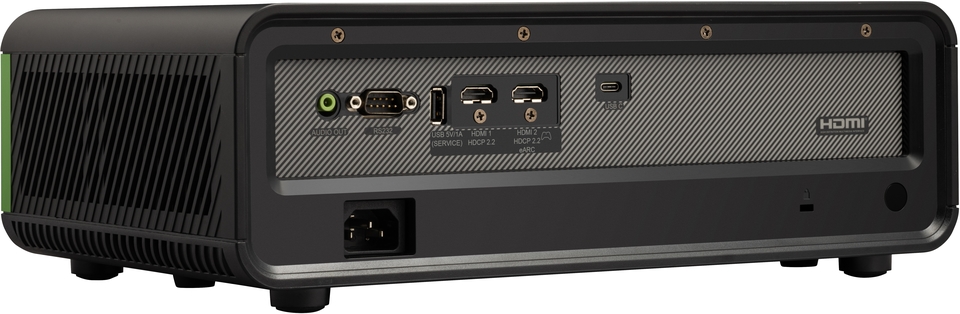

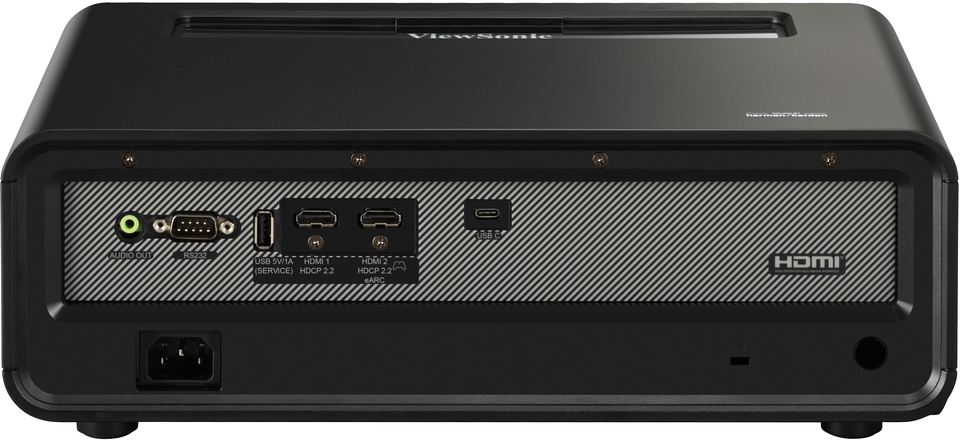

Dimensions & I/O Connectivity
- Zoom/Focus Ring
- Lens Shift Control Knob

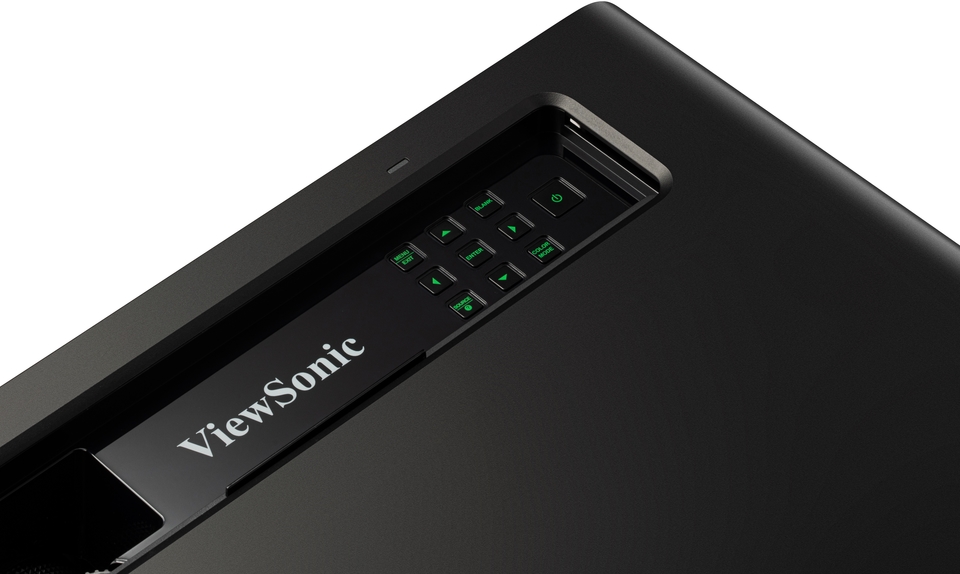

- Keypad
- LED Indicator
- Sliding Door
- Front IR
- Speakers
- Audio Out
- RS232
- USB-A (5V/1A, Service)
- HDMI 2.0/ HDCP 2.2
- HDMI 2.0/ HDCP 2.2(eARC)

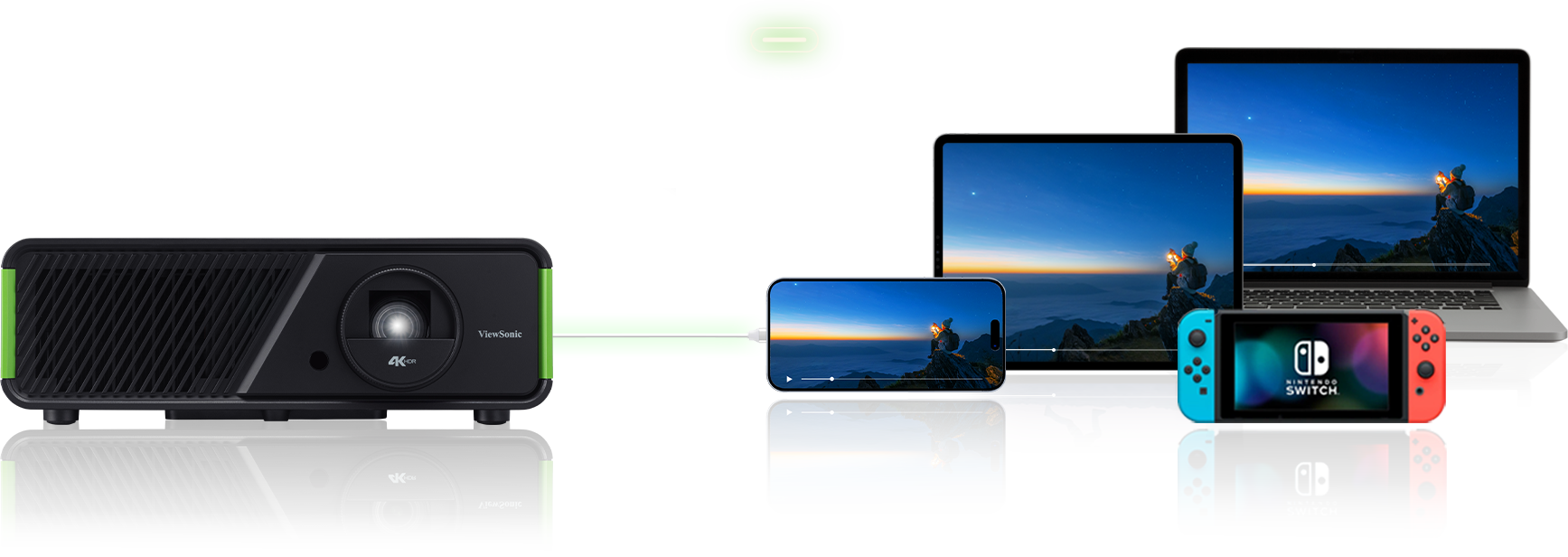

- USB-C (5V/1A)
- Rear IR
SPECIFICATIONS
- SpecificationProjection System: 0.65" 4K-UHD
Native Resolution: 3840x2160
Brightness: 3300 (LED Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 60000
Lens: F=2.48-2.78, f=16.89-21.87mm
Projection Offset: 110%+/-5%
Throw Ratio: 1.15-1.5
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-150"
Throw Distance: 1.53m-4.98m
(100"@2.55m)
Keystone: H:+/-40° , V:+/-40°

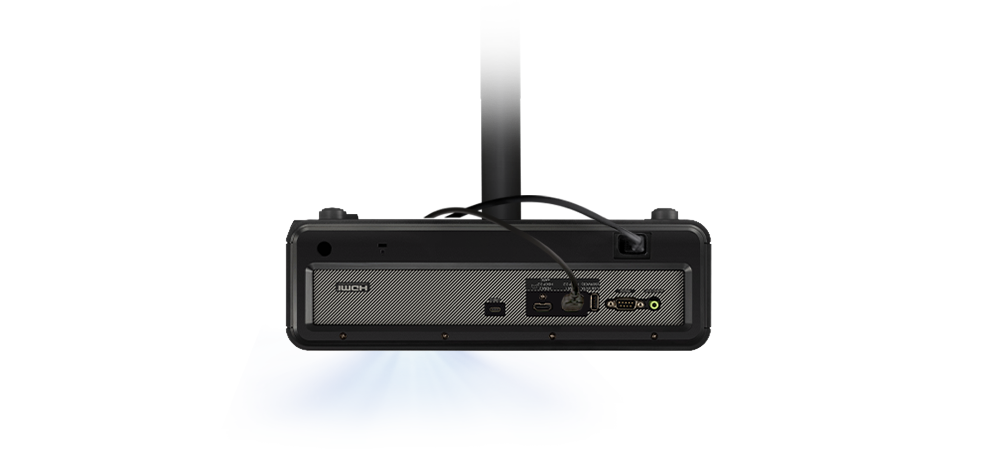

Lens Shift V. Range: +10%, -0%
Audible Noise (Normal): 33dB
Audible Noise (Eco): 29dB
Local Storage: Total 8GB
(4GB available storage)
Input Lag: 4.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-240Hz - InputHDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
USB Type C: 1 (5V/1A)
Wifi Input: 1 (5Gn) - OutputAudio-out (3.5mm): 1

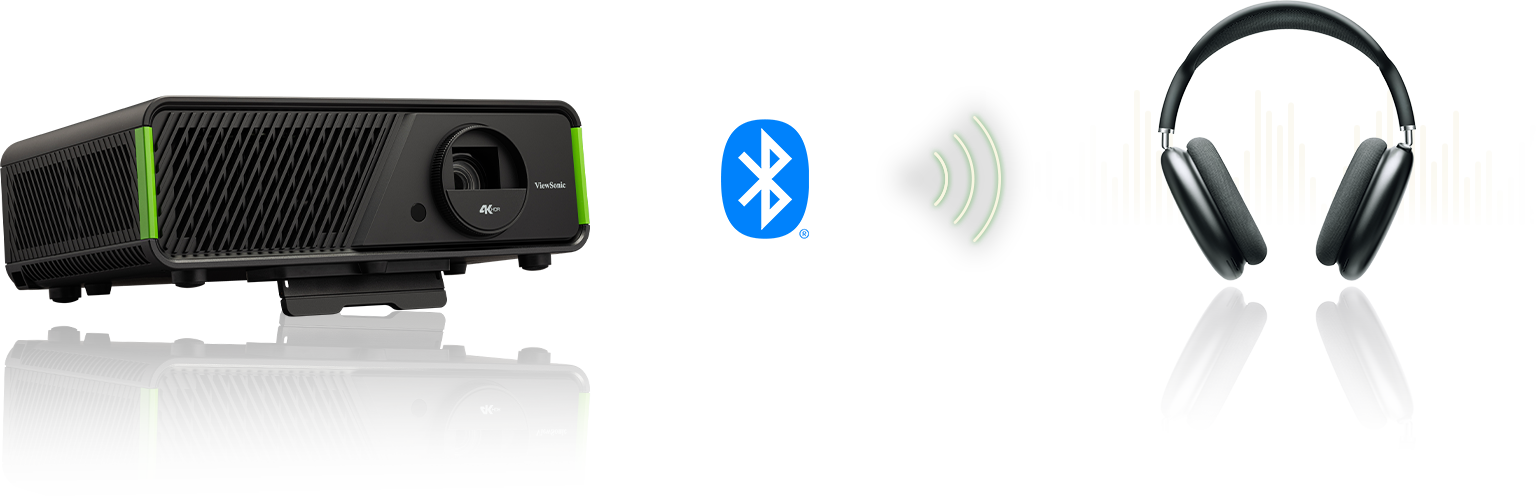

Audio-out (Bluetooth): 1 (BT5.0)
Audio-out (HDMI ARC): 1 (eARC)
(Share with HDMI Input)
Speaker: 6W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1A,
share with USB A Service)
- ControlRS232 (DB 9-pin male): 1
USB Type A (Services): 1 - OthersPower Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 236W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Color
Net Weight: 3.68kg
Gross Weight: 5.6kg
Dimensions (WxDxH) with Adjustment Foot: 355x244x121mm
Packing Dimensions: 490x376x313mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1
USB-C Cable: 1 (1m)

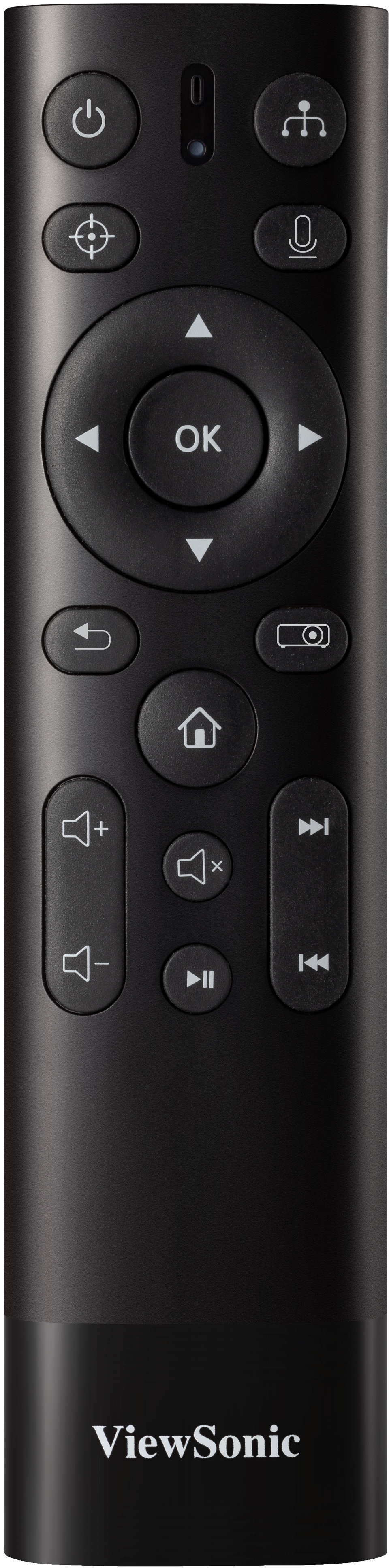

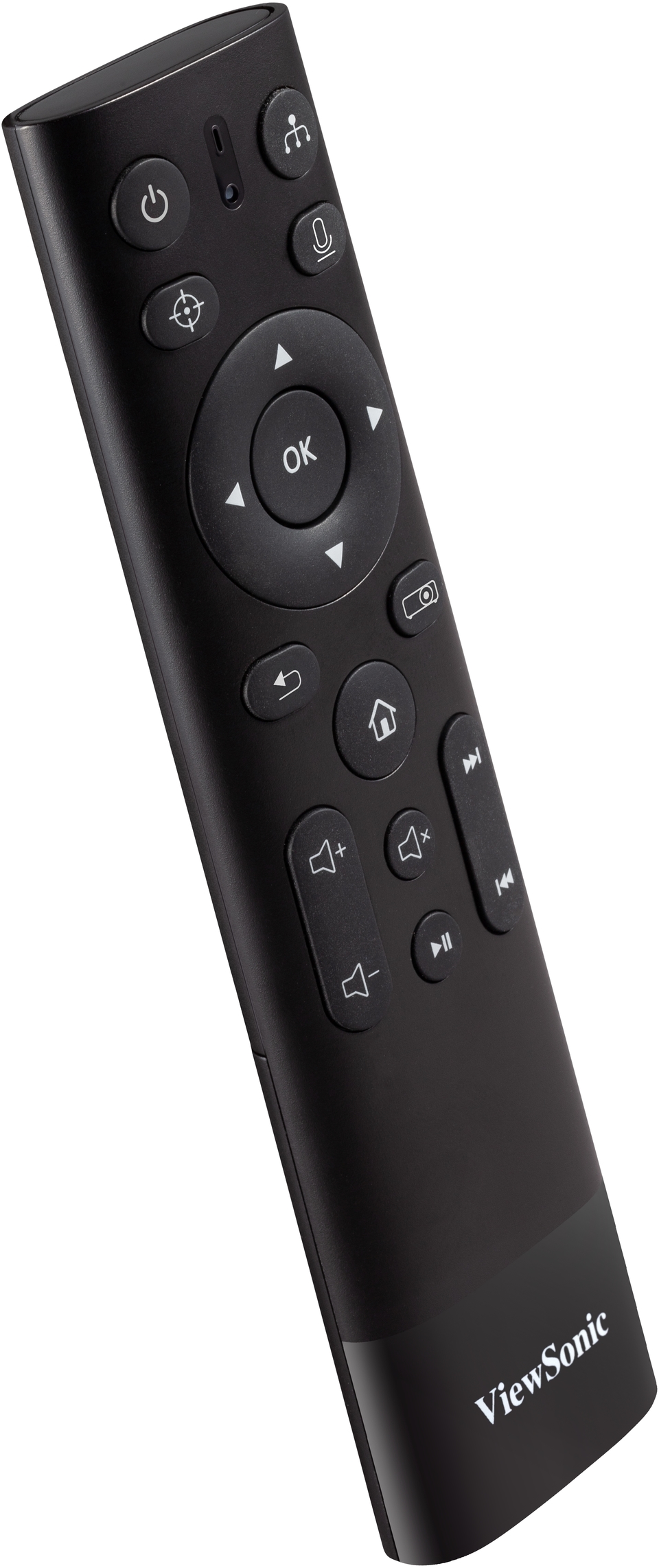

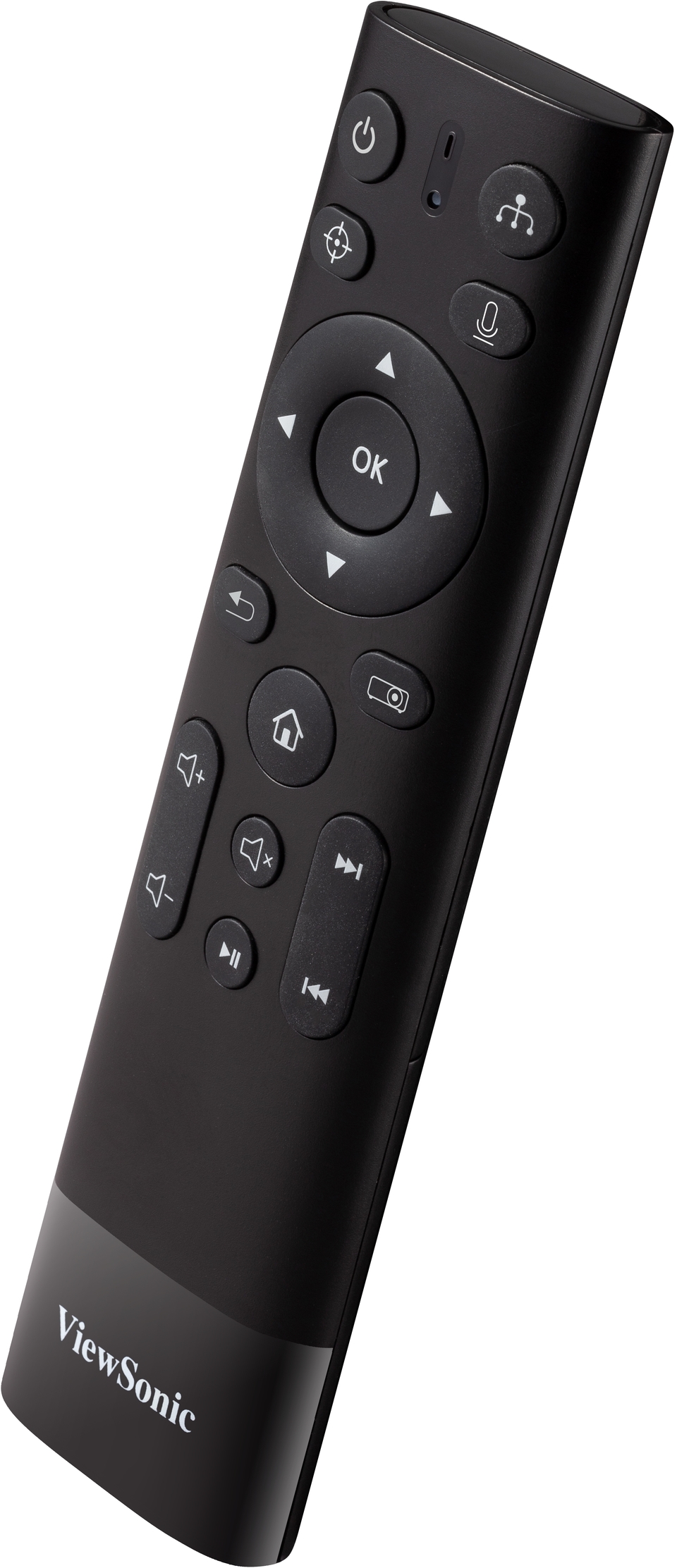

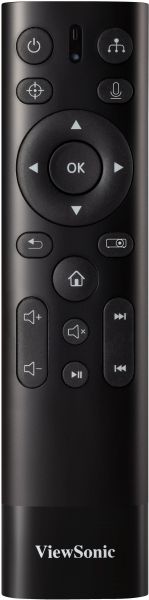

Remote Control: 1
(BT w/ backlit)
QSG: Yes - Optional AccessoryWall/Ceiling Mount: PJ-WMK-007
Carry Bag: PJ-CASE-009
