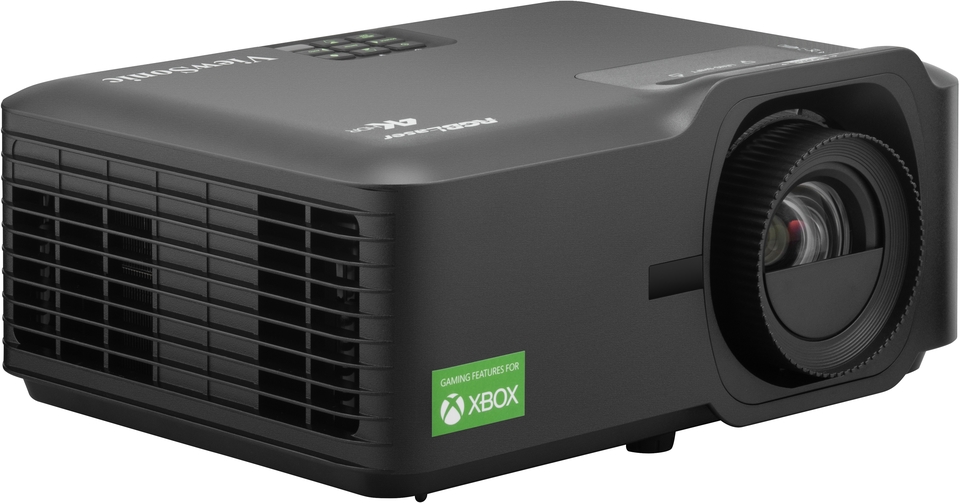

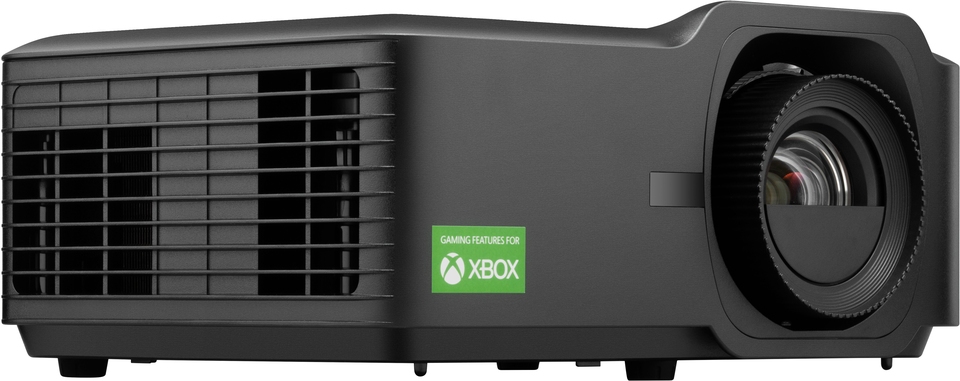

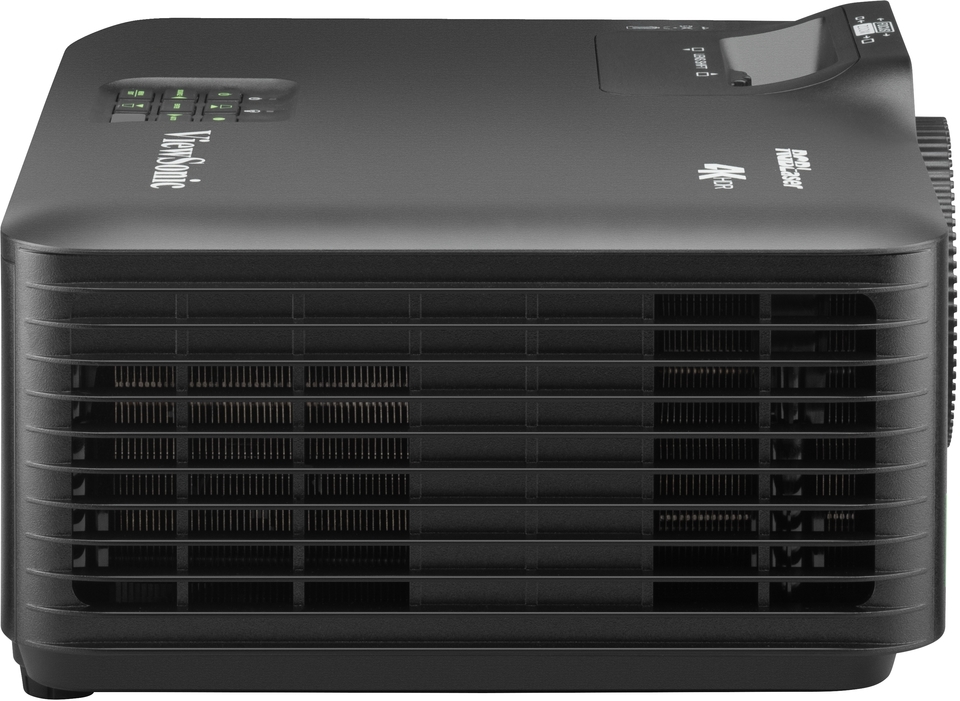

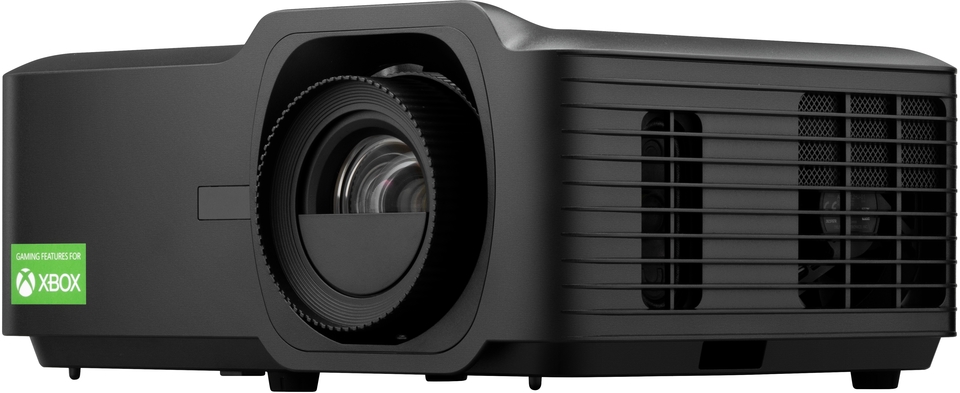

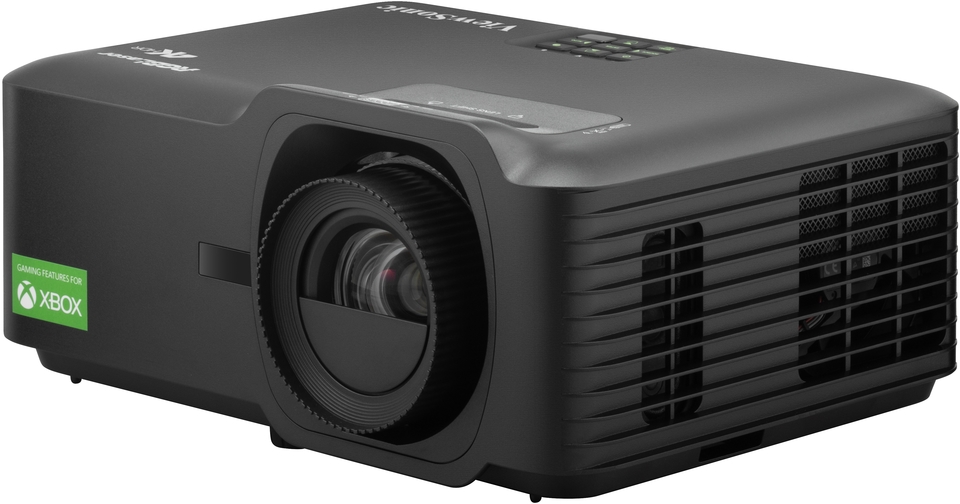

LX700-4K RGB
4K HDR RGB Laser Home Cinema Projector
- Innovative home installation projector with RGB laser technology
- Unmatched color performance with 100% coverage of the BT.2020 color space
- 5,200 RGB Laser Lumens for uninterrupted big-screen fun in any lighting condition
- True 4K HDR immersive visuals and high contrast enabled by a 0.65-inch DMD chip

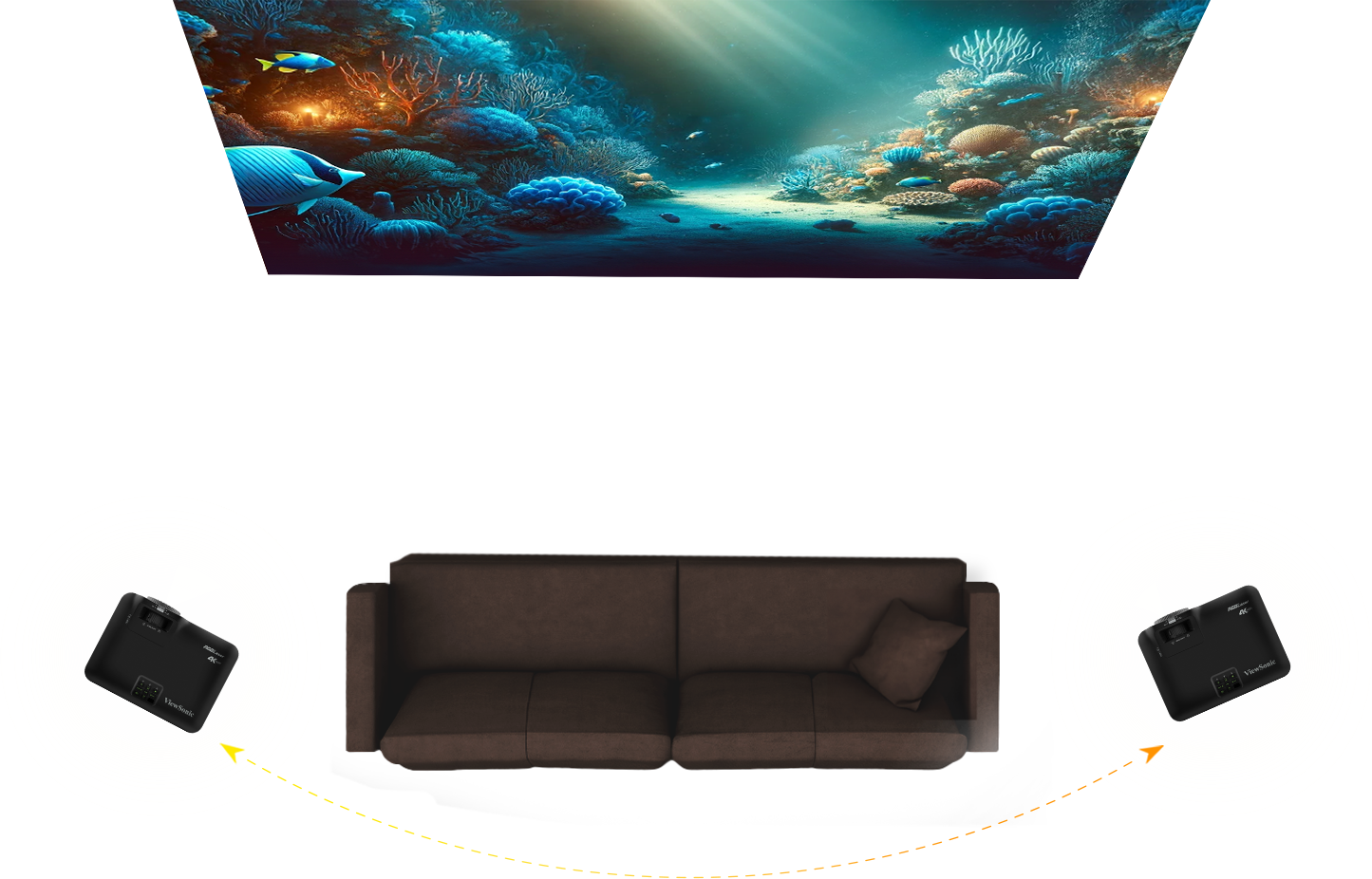

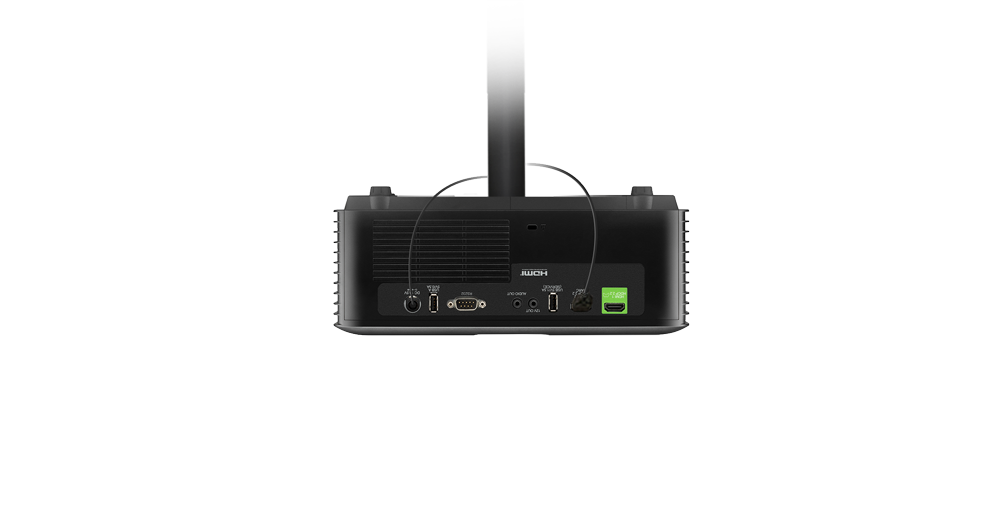

- Flexible installation options: 1.6x optical zoom, vertical lens shift, and H/V keystone correction
- 1440p@120Hz for immersive gaming experience with Xbox and PS5
OVERVIEW
The LX700-4K RGB projector sets a new standard in home cinema with its RGB laser technology, enhancing image quality for an exceptional viewing experience. Utilizing advanced laser projection, it achieves 100% BT.2020 color gamut coverage, delivering vivid, lifelike colors that bring your favorite shows to life. With 5,200 RGB Laser Lumens, 4K UHD resolution, and HDR/HLG support, it ensures a bright, crystal-clear, vibrant viewing experience at any time. The projector's high contrast ratio, powered by the Texas Instruments 0.65-inch DMD chip, reveals intricate details in dark scenes and enriches blacks for complete visual immersion. Its 1.6x optical zoom, vertical lens shift, and side projection capabilities, complemented by H/V keystone and 4-corner adjustment, offer versatile installation options, making setup and home cinema upgrades effortless. As one of the first “Designed for Xbox” projectors, it also provides outstanding gaming performance at an optimal 1440p@120Hz, ensuring total immersion in all your home entertainment pursuits.Cutting-Edge RGB Laser Technology
Experience visual excellence with the cutting-edge RGB laser technology. More advanced than traditional laser counterpart, this revolutionary technology combines red, green, and blue laser diodes to generate high-quality images with the expansive BT.2020 color gamut. The mercury-free and lamp-free light source guarantees consistent brightness for up to 30,000 hours, ensuring lasting entertainment enjoyment.
Theater-Level Colors
100% BT.2020
wide color gamut
Enhanced Brightness
5,200 RGB Laser Lumens
for brilliant images anytime
Maintenance-Free
Up to 30,000
hours lifespan
Eco-Friendly
Mercury-free
for a greener future
Ultimate Viewing
Experience with 4K HDR
Immerse yourself in unparalleled clarity with true Ultra HD, enriched by the vibrant visuals of HDR/HLG and 3D support. With 8.3 million pixels, this projector's 4K resolution vividly brings movies, sports, games, and your favorite streaming content to life.
Vivid Details with HDR
Bigger Chip, Higher Contrast,
Deeper Immersion
The LX700-4K RGB takes your viewing experience to new heights with its advanced Texas Instruments 0.65-inch DMD chip, boasting a higher native contrast ratio than the conventional 0.47-inch chip. Rediscover your favorite movies and games in a new light, reveling in the stunning depth of deeper blacks and the vivid detail of every shade in dark scenes.
Superior Performance with DLP® Technology
Experience cinematic excellence with the LX700-4K RGB, which utilizes DLP technology—a staple in 90% of global digital cinemas. This technology offers you a viewing experience that is nothing short of premium.
Crisp and Immersive Images
This DLP projector delivers flawless image quality, eliminating the noticeable screen-door effect for a truly cinematic experience. With its outstanding contrast and pixel-edge sharpness, every image is rendered with crisp and clear precision.
Long-lasting Colors
DLP technology ensures that colors stay vibrant and true to their original hues, free from yellowing over time, thus maintaining stunning visual quality even after years of use.
Filter-free Design
The LX700-4K RGB's sealed engine design keeps dust out without requiring for an air filter, eliminating the need for filter replacements and simplifying maintenance.

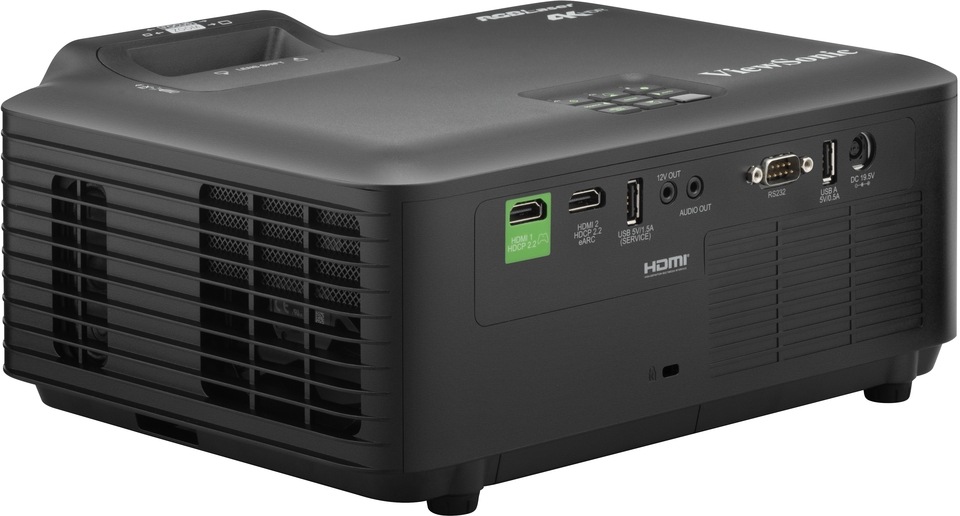

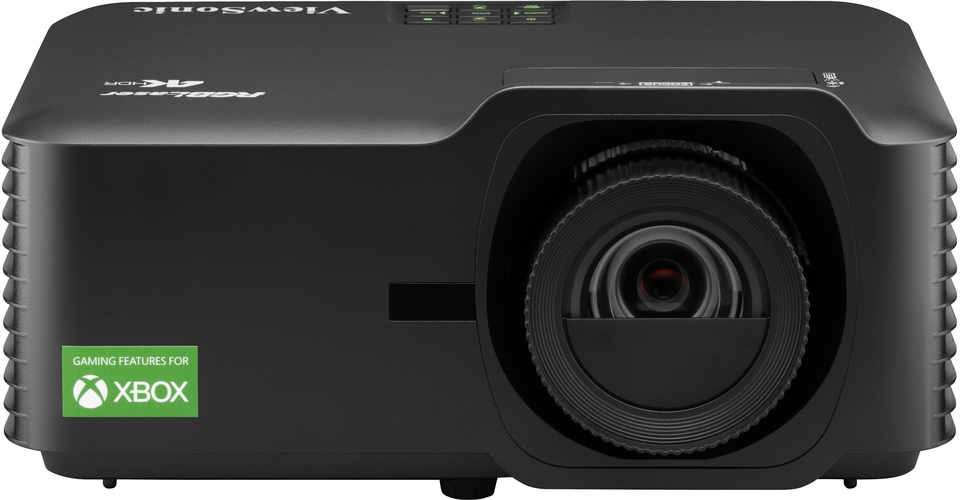

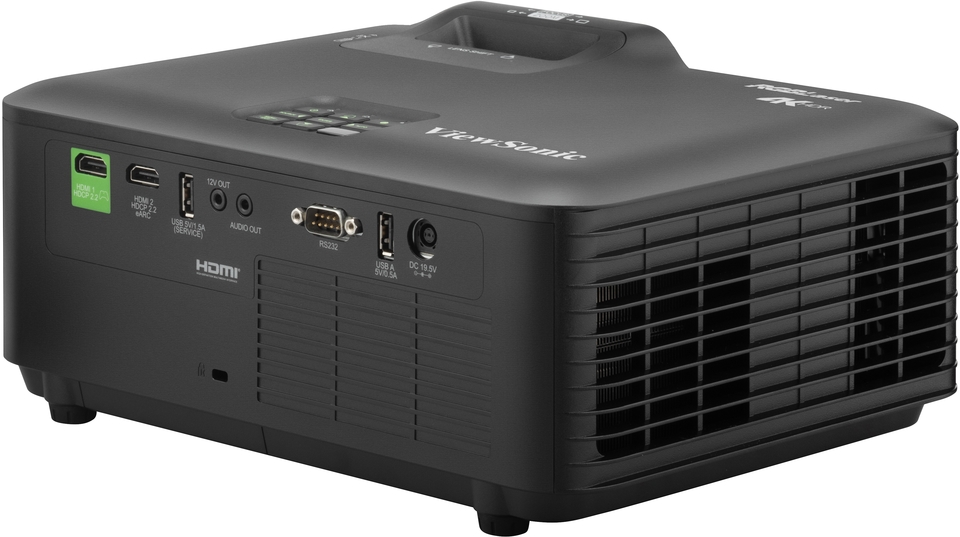

Dimensions & I/O Connectivity

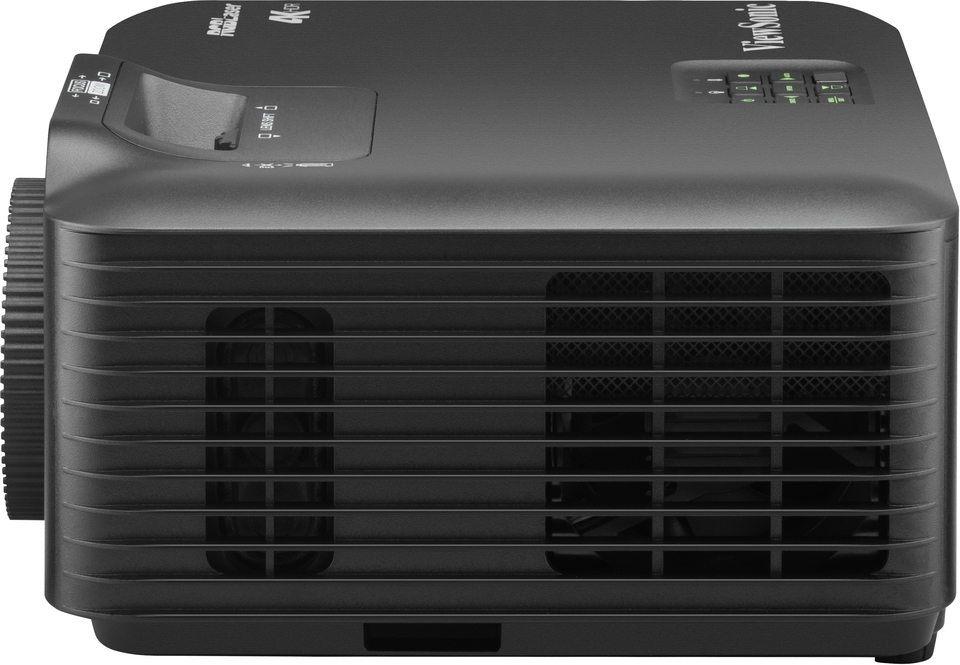

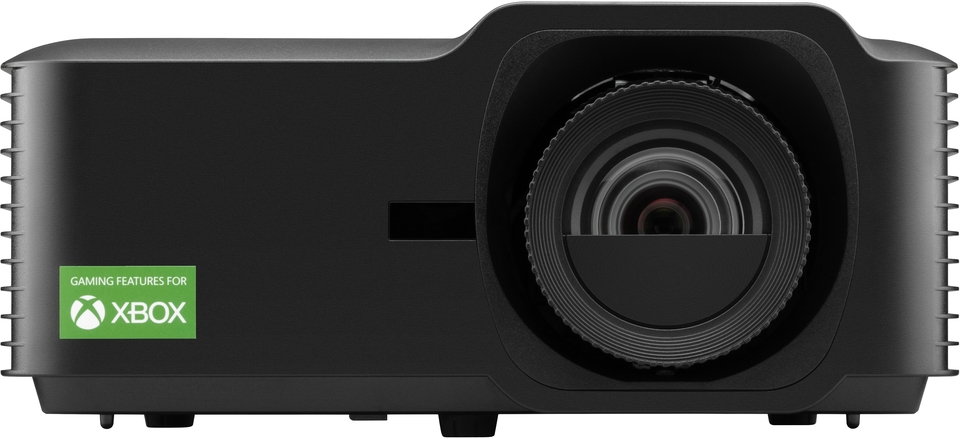

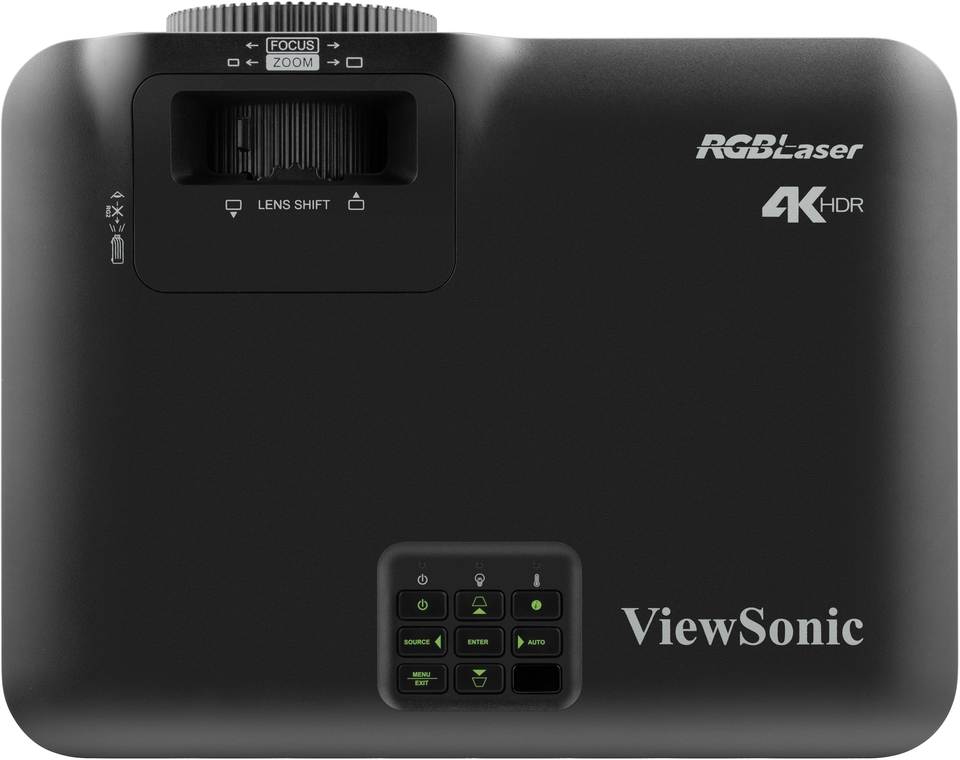

- Focus Ring
- Zoom Ring
- Lens Shift Control Knob
- Power Button
- Keypad
- Top IR
- Front IR
- Lens

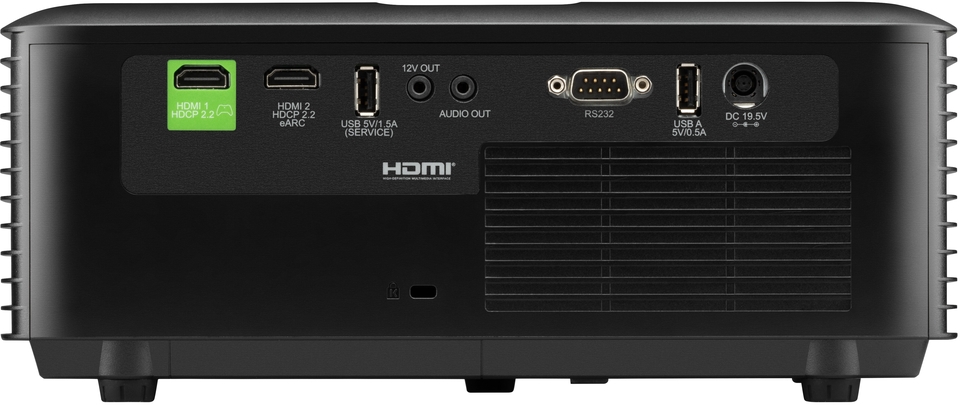

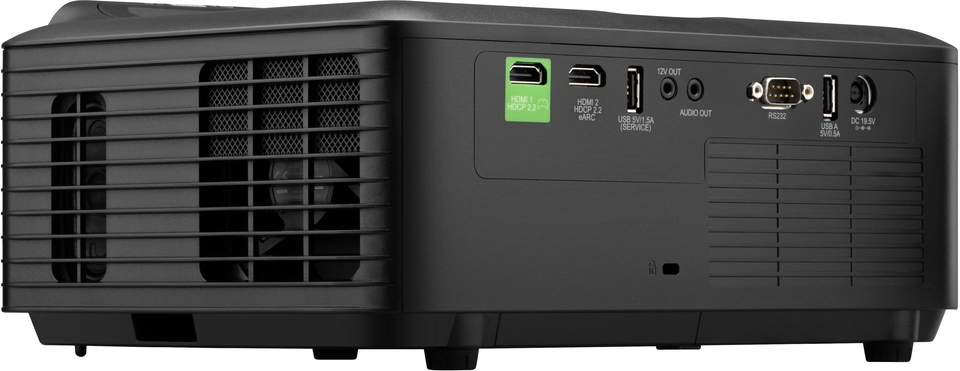

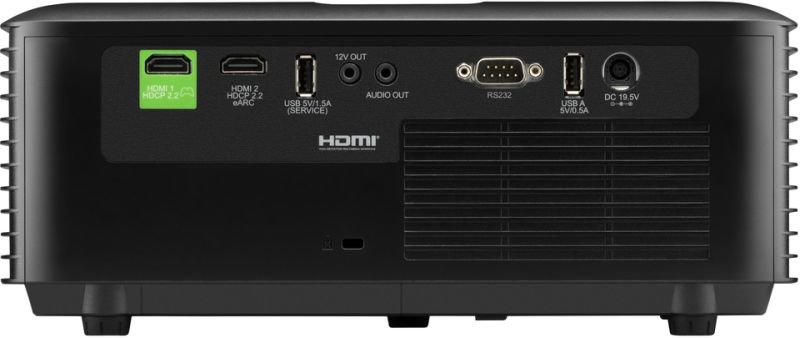

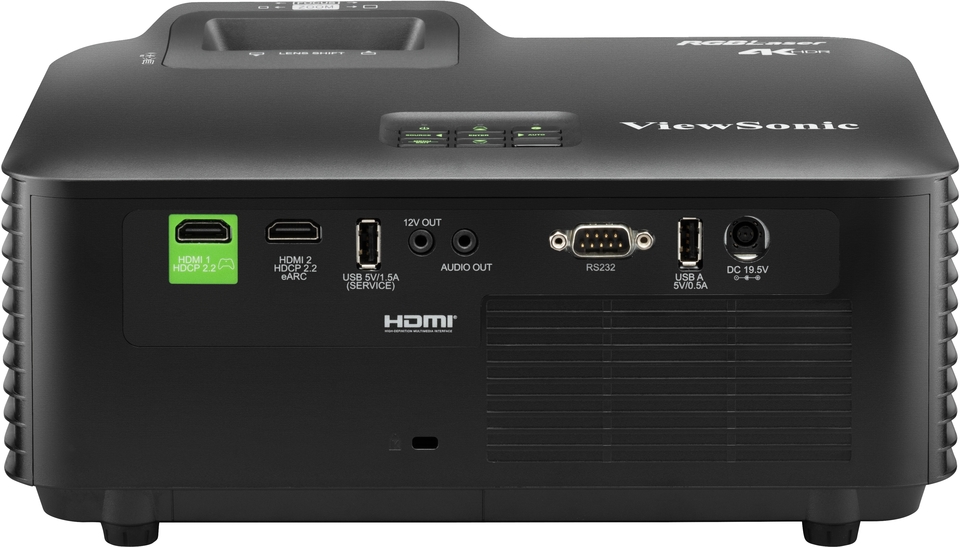

- HDMI 1-Xbox
(HDMI 2.0/ HDCP 2.2) - HDMI 2-eARC
(HDMI 2.0/ HDCP 2.2) - USB-A (5V/1.5A, Service)
- 12V Trigger
- Audio Out
- RS232
- USB-A (5V/0.5A)
- DC In
SPECIFICATIONS
- SpecificationProjection System: 0.65" 4K-UHD
Native Resolution: 3840x2160
Brightness: 5200 (RGB Laser Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: RGB Laser
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.5-3.26, f=20.911-32.62mm
Projection Offset: 137%+/-10%
Throw Ratio: 1.4-2.24
Optical Zoom: 1.6x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.93-14.88m
(100"@3.10m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +0%, -15%
Audible Noise (Normal): 30dB
Audible Noise (Eco): 27dB
Input Lag: 4.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-255KHz
Vertical Scan Rate: 23-240Hz - InputHDMI: 2
(HDMI 2.0/ HDCP 2.2) - OutputAudio-out (3.5mm): 1
Audio-out (HDMI ARC): 1 (eARC)
(Share with HDMI Input)
Speaker: 15W
USB Type A (Power): 2
(USB2.0 - 5V/0.5A x1,
USB2.0 - 5V/1.5A x1,
share with USB A Service)
12V Trigger (3.5mm): 1
- ControlRS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output) - OthersPower Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23A
Power Consumption: Normal: 145W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.70kg
Gross Weight: 4.00kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1

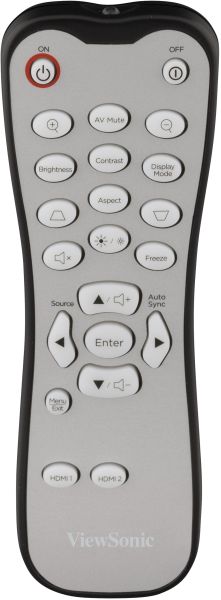

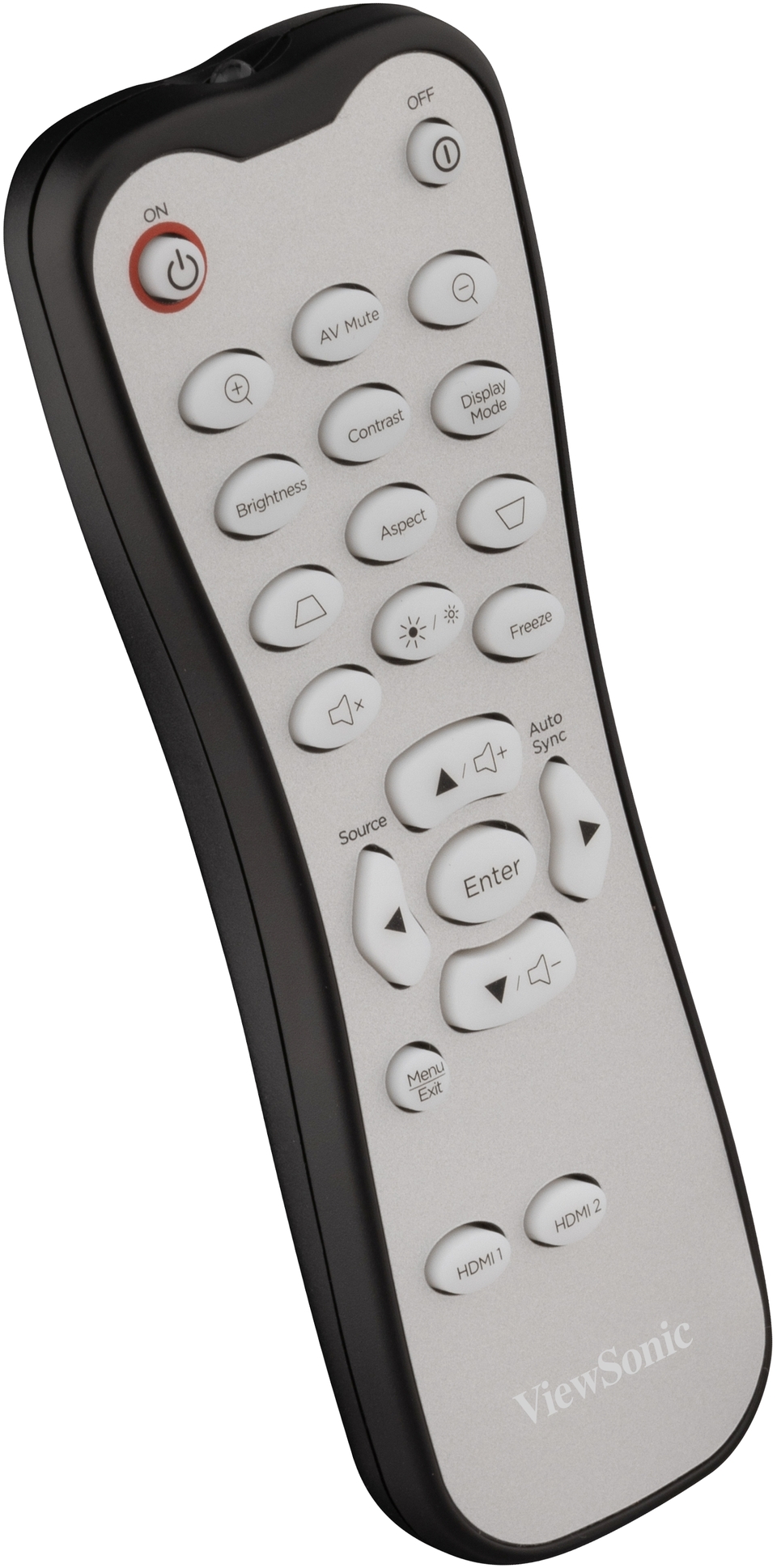

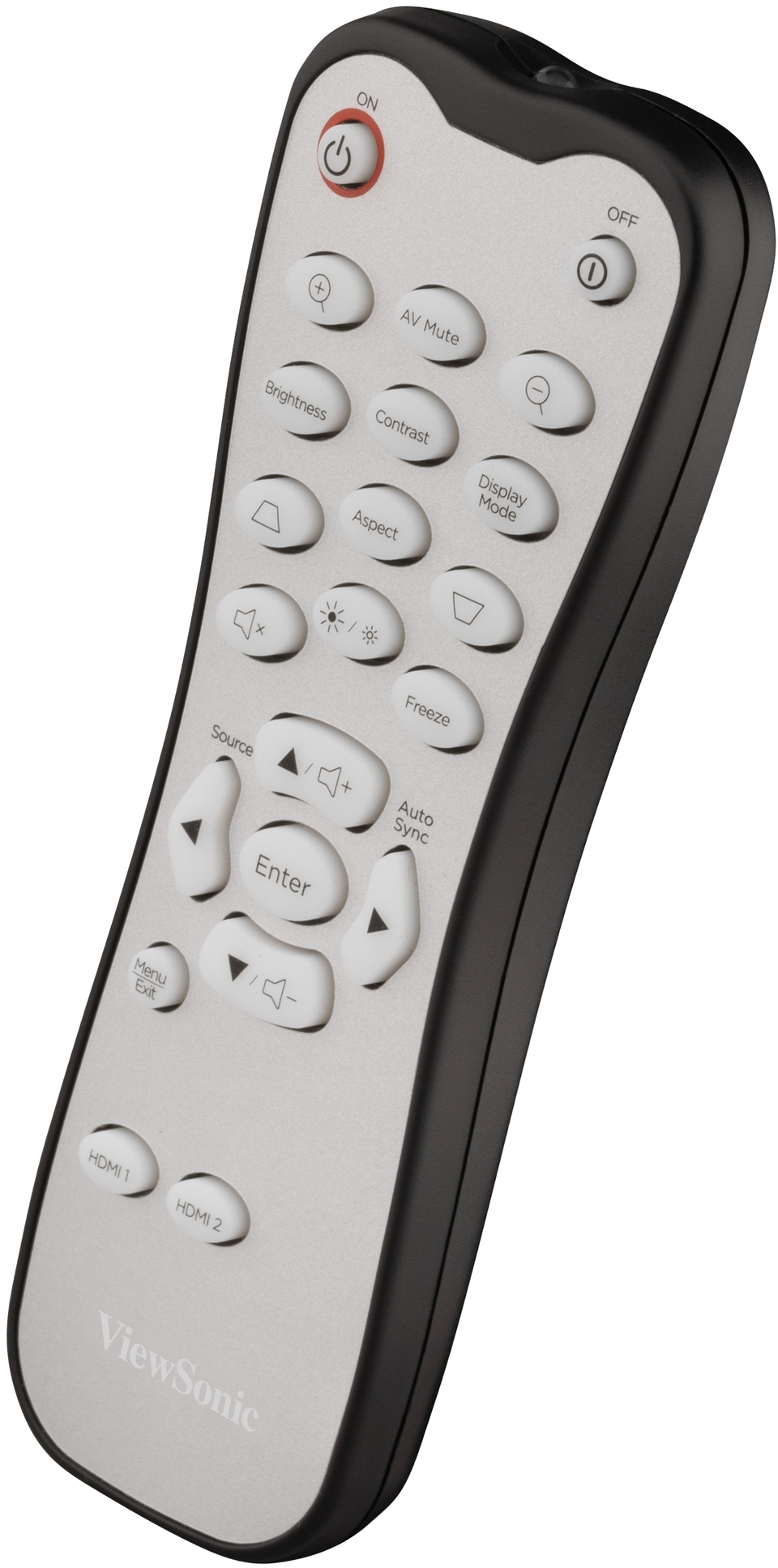

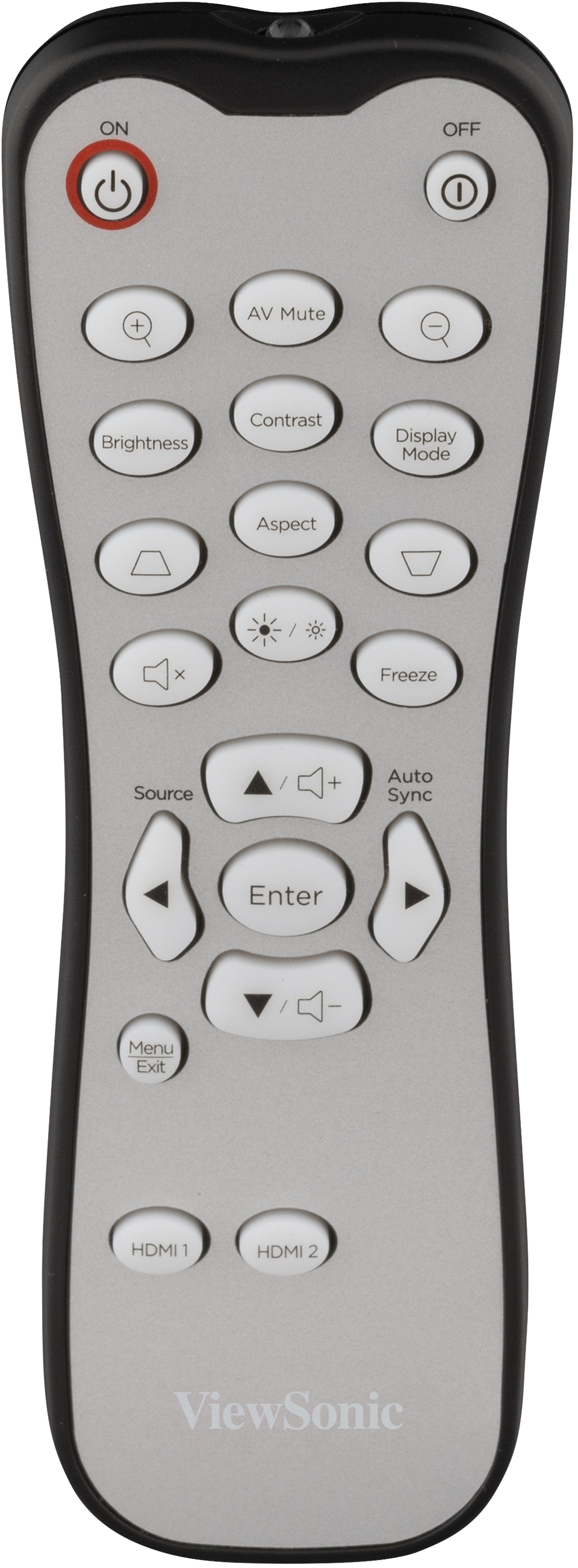

Remote Control: 1
(w/ backlit)
QSG: Yes
Warranty Card: Yes (CN Only) - Optional AccessoryWall/Ceiling Mount: PJ-WMK-007
Carry Bag: PJ-CASE-008
