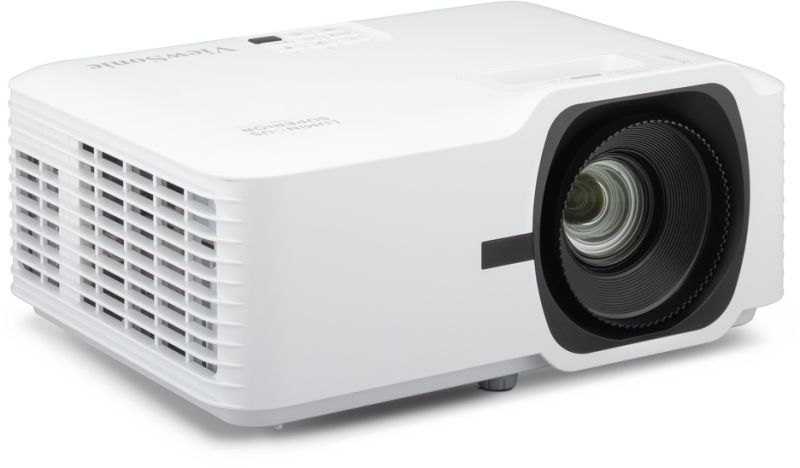

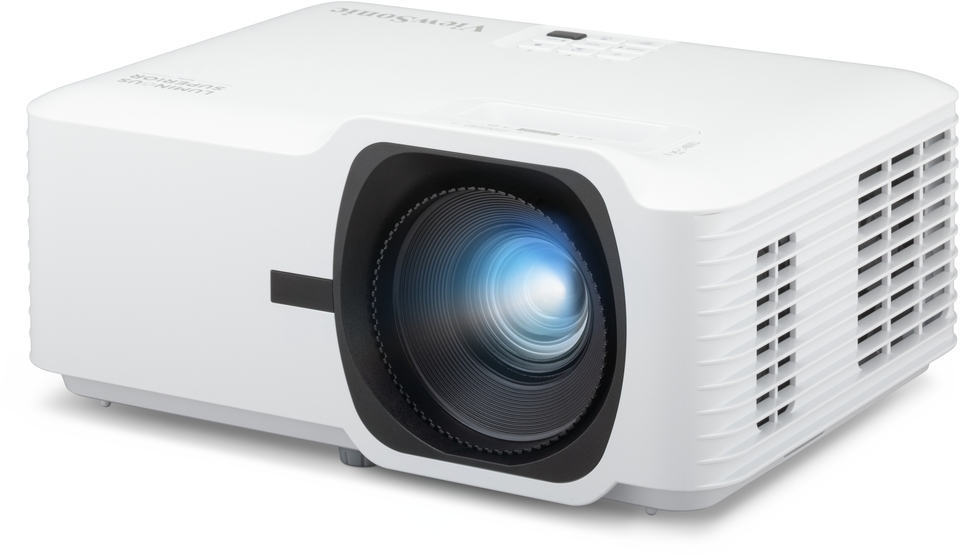

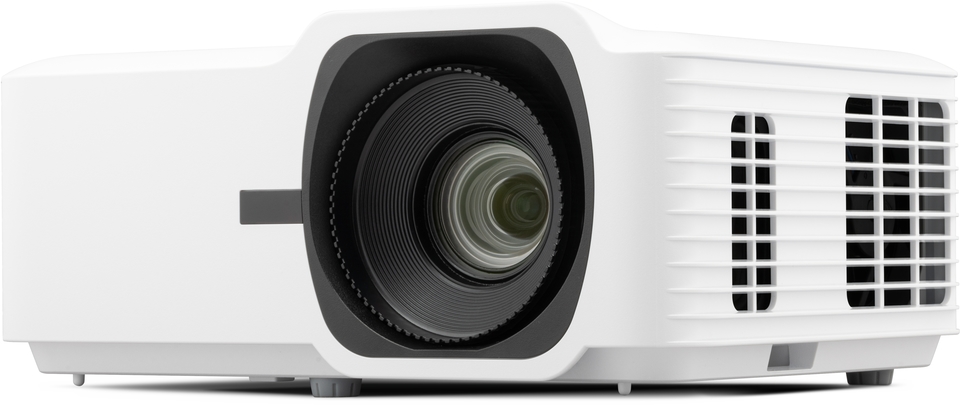

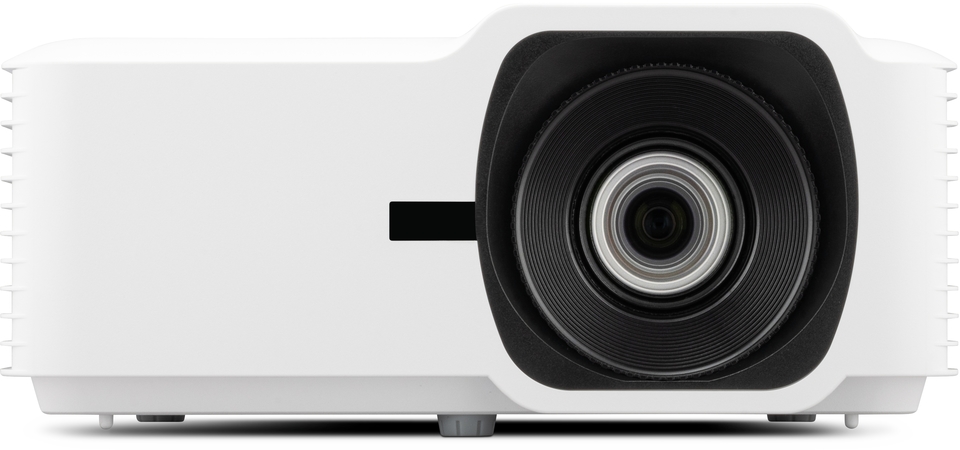

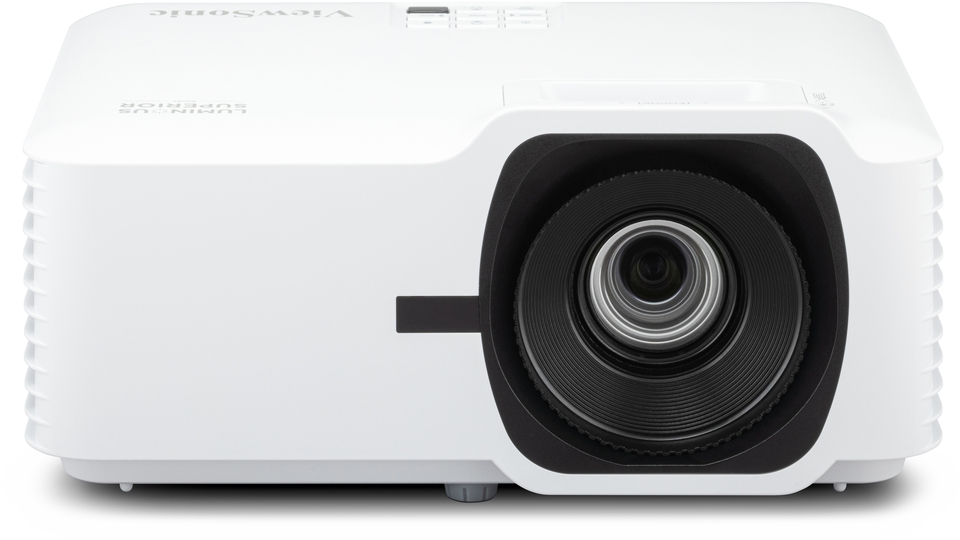

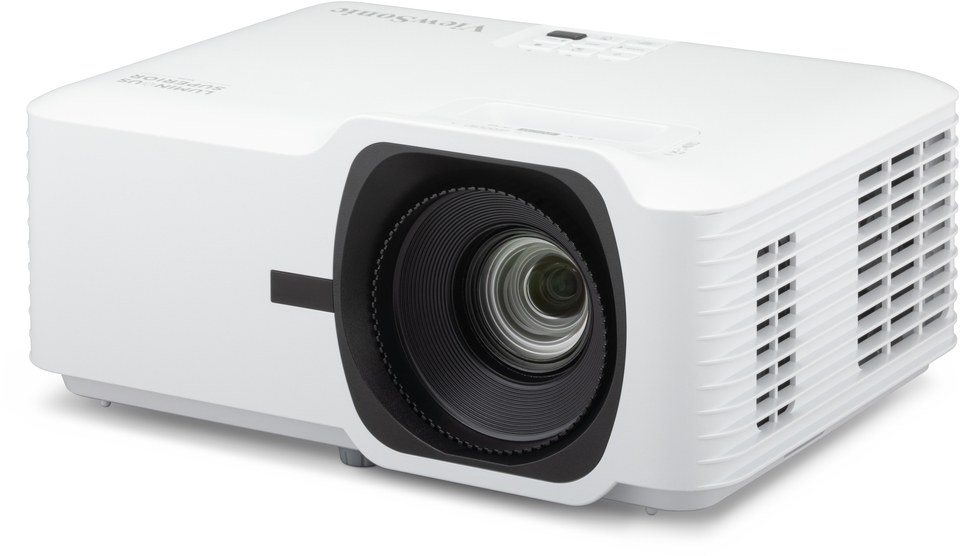

LS630HD

4,000 ANSI Lumens 1080p Laser Business/Education Projector

  • 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
  • 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
  • High native contrast ratio powered by a 0.65” DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
  • Centralized LAN control for efficient management
Sales Enquiry

ViewSonic Projector LS630HDViewSonic Projector LS630HDViewSonic Projector LS630HDViewSonic Projector LS630HDViewSonic Projector LS630HDViewSonic Projector LS630HDViewSonic Projector LS630HD

OVERVIEW

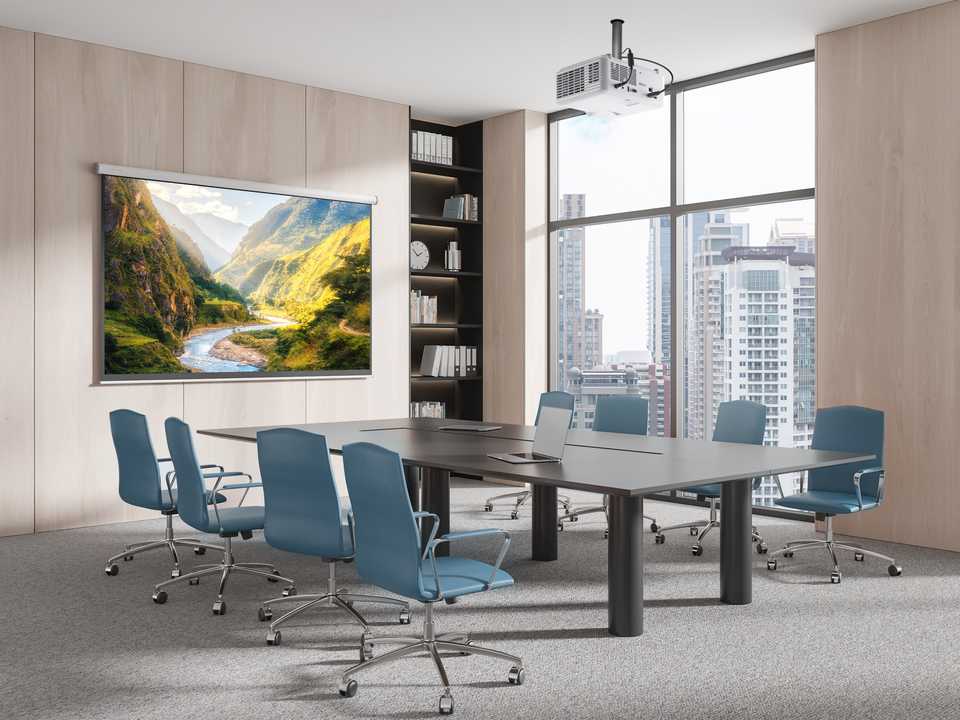

The LS630HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS630HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

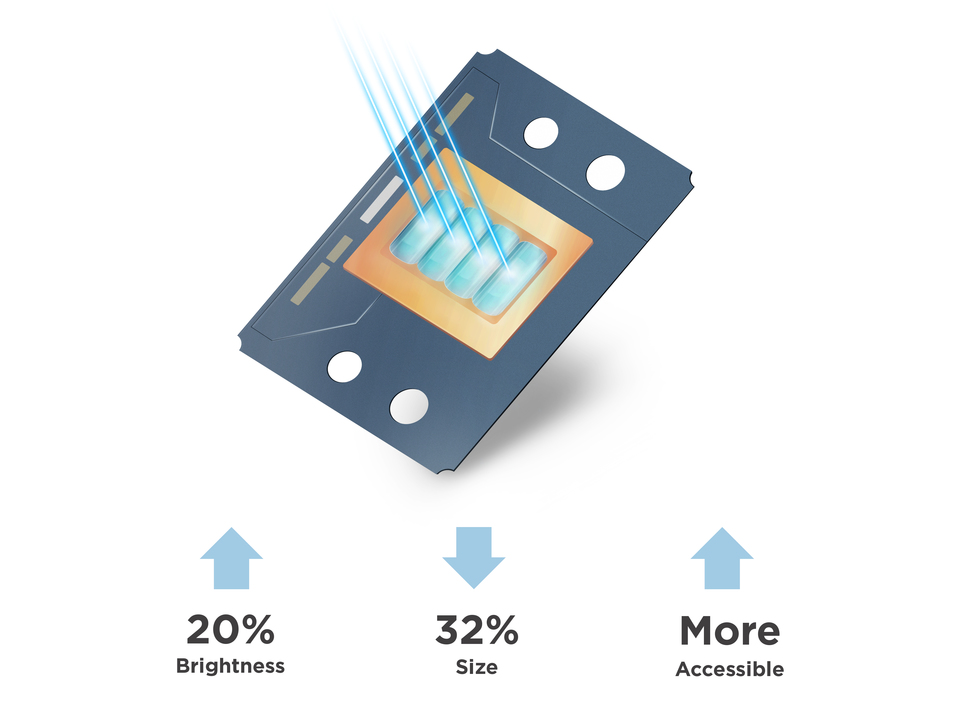

Bright, Compact, Durable

The LS630HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
Bright, Compact, Durable 1

Clear Visuals for Business/Education Environments

Thanks to the latest laser technology, the LS630HD achieves high brightness of 4,000 ANSI Lumens. With 1080p resolution​, the projector ensures bright and detailed images in dim or lit environments.
4,000 ANSI Lumens, 1080p
Bright Images for Large Venues 1
Bright Images for Large Venues 2

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LS630HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
0.65” DMD Chip, High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

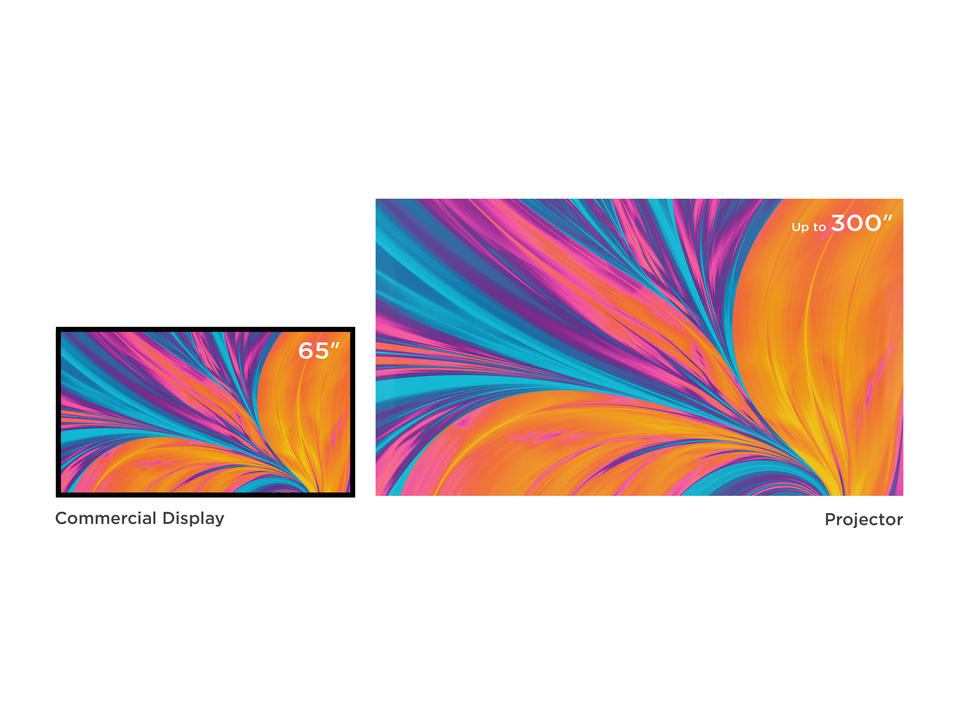

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Ultra-Large Screen with Lower Cost-per-Inch 1

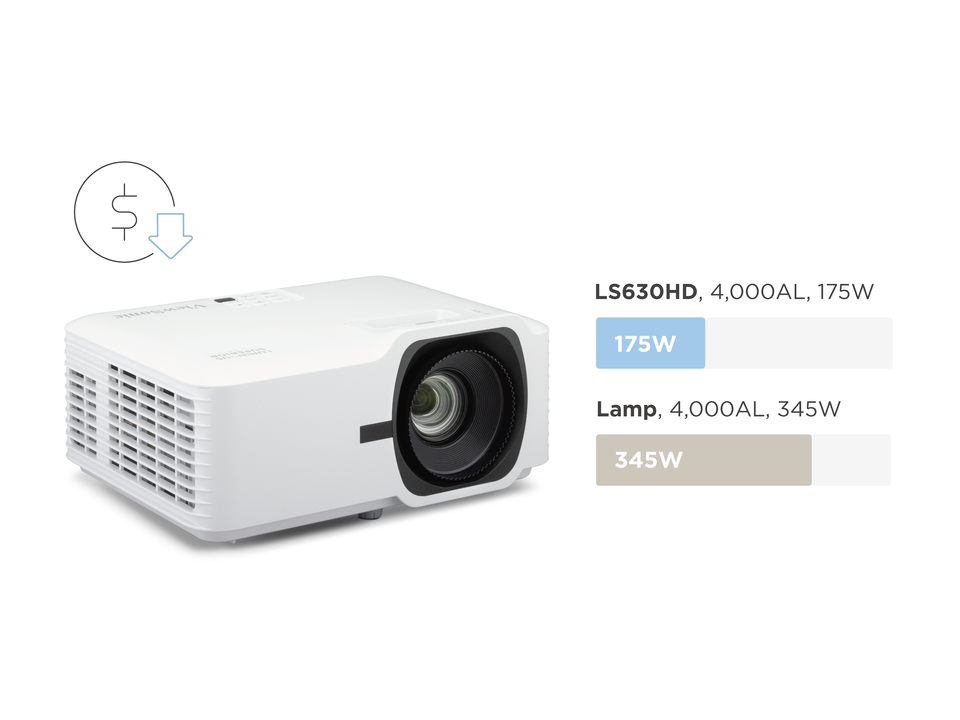

Save on Costs and Energy

With its advanced lamp-free light source, the LS630HD offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.
Less Power Consumption
Save on Costs and Energy 1

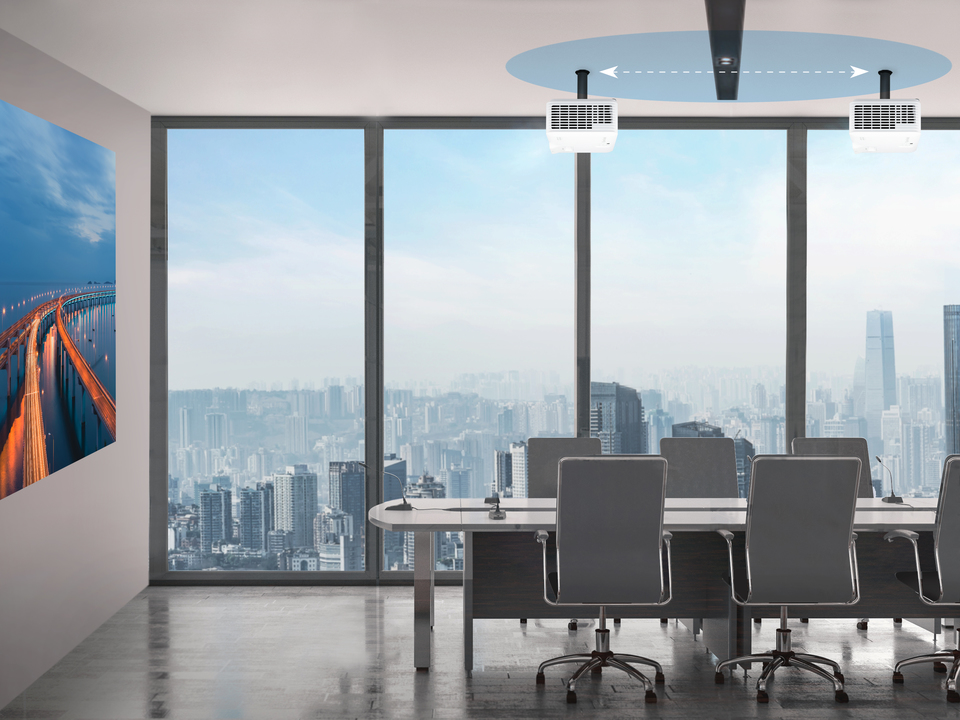

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​
1.3x Optical Zoom
Enhanced Installation Flexibility 1

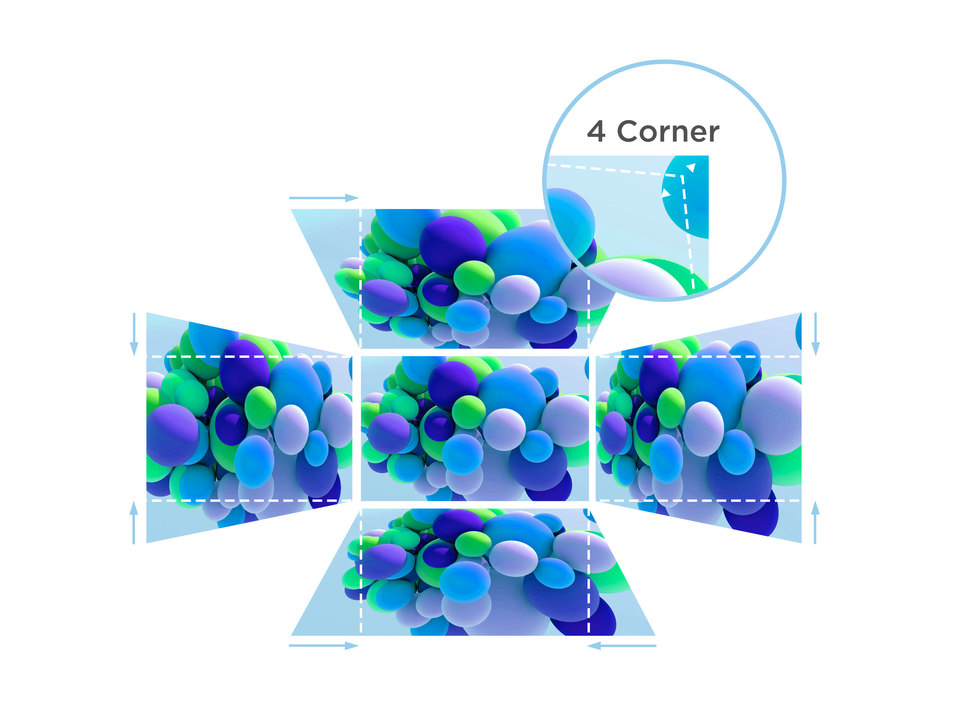

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

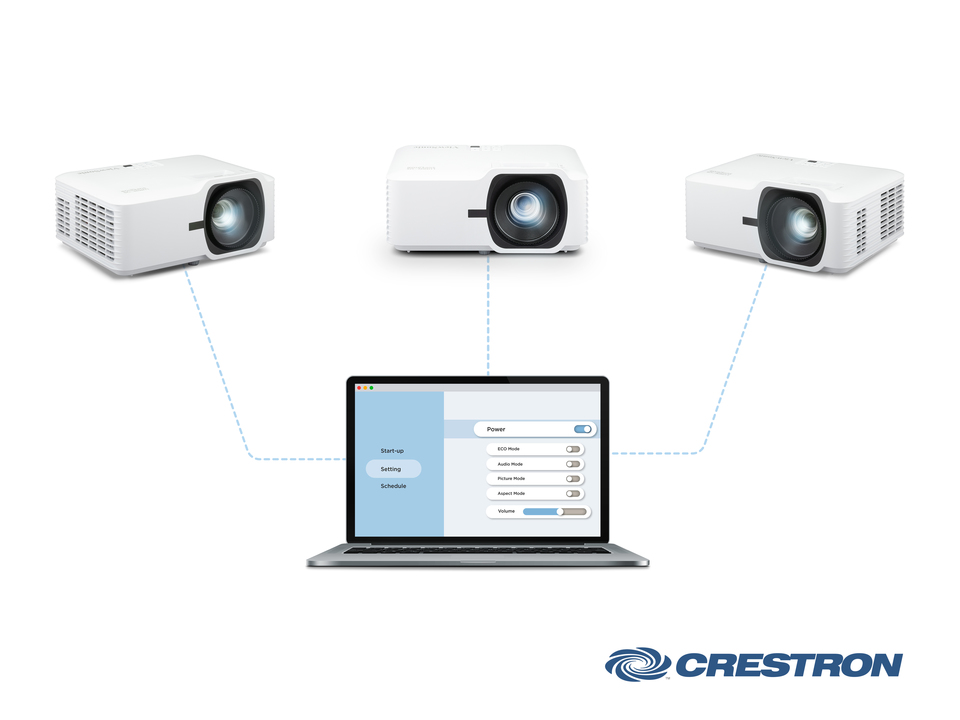

Centralized Control for Management Efficiency

The LS630HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

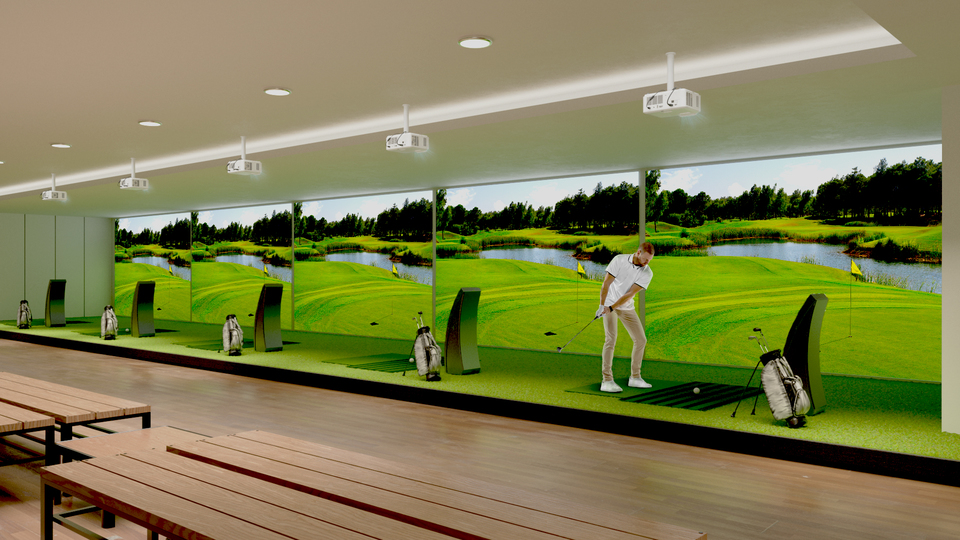

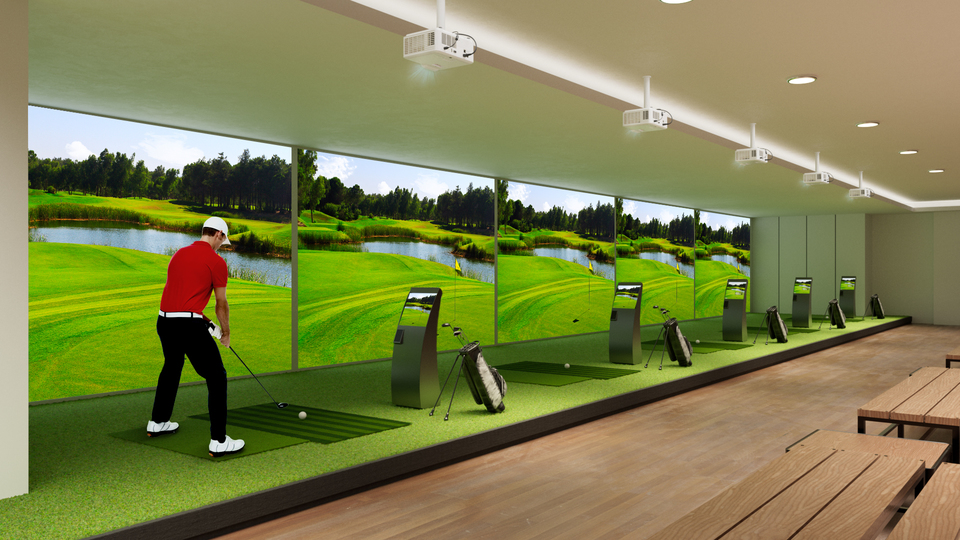

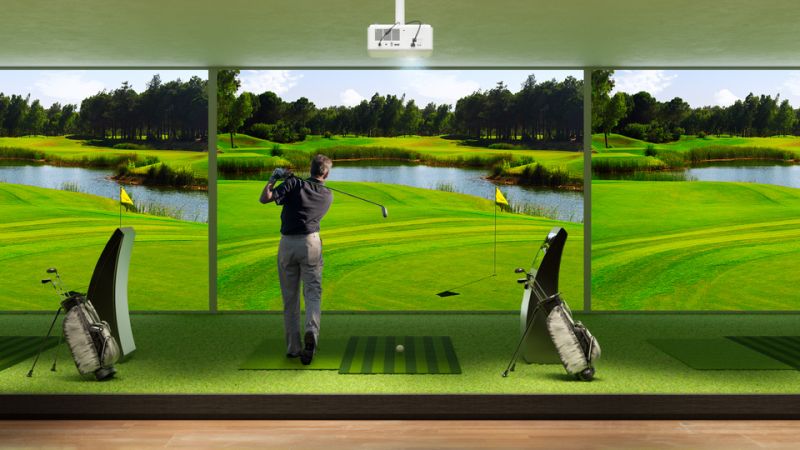

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
Golf Color Mode
Brilliant Colors for an Authentic Golf Experience 1

Versatile Creative Application​s​

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Versatile Creative Application​s​ 1

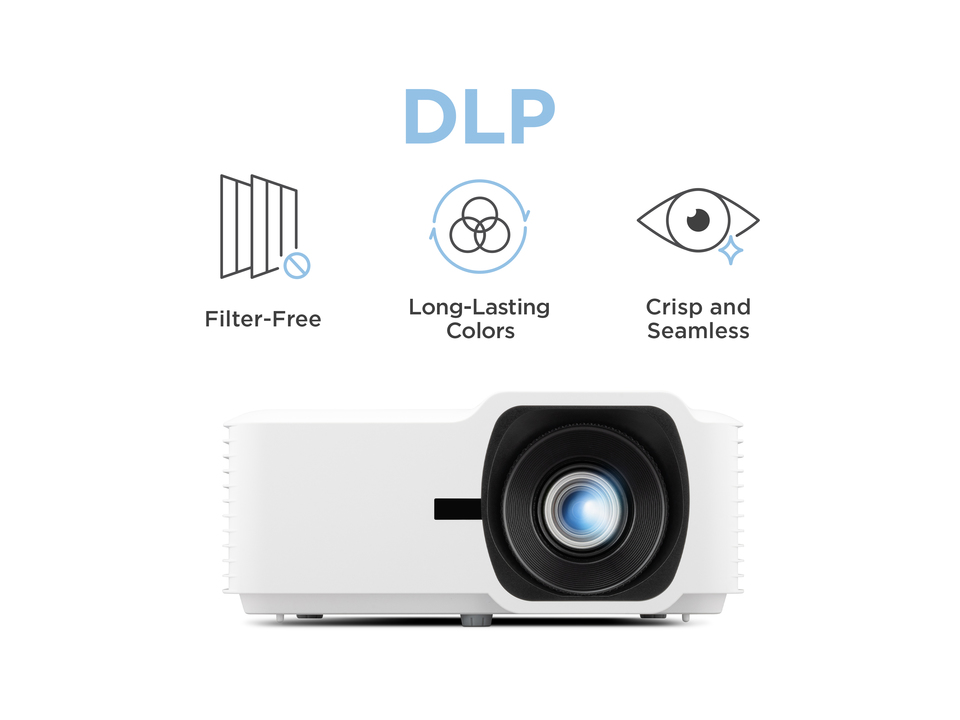

Reliable Long-Term Performance with DLP Projection Technology

With DLP technology, the LS630HD maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Reliable Long-Term Performance with DLP Projection Technology 1

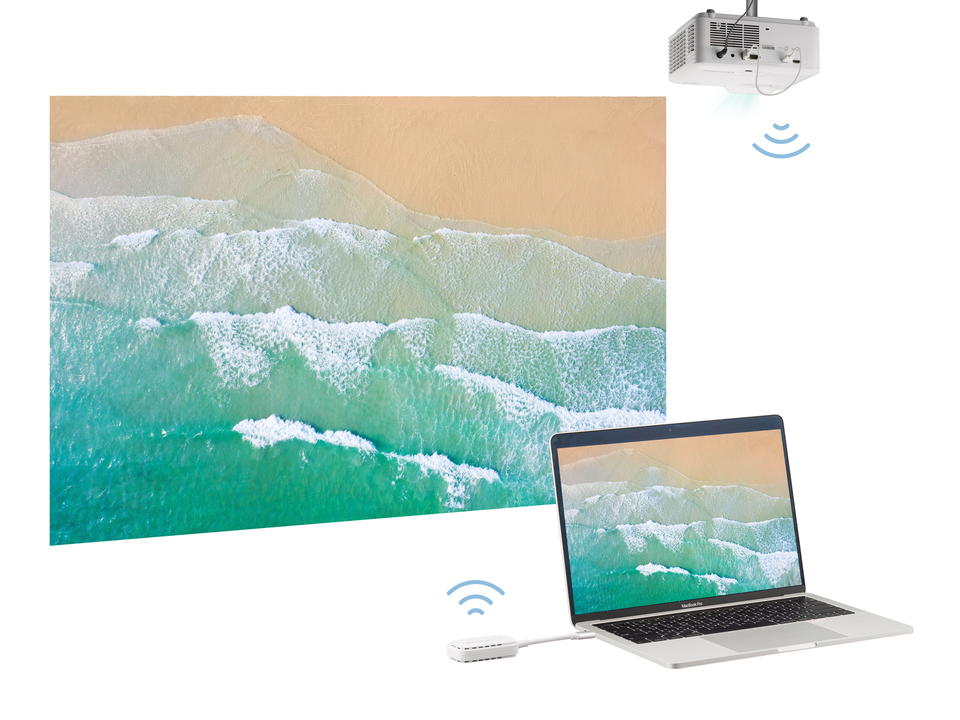

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
Upgrade Your Projector with Wireless Content Casting 1

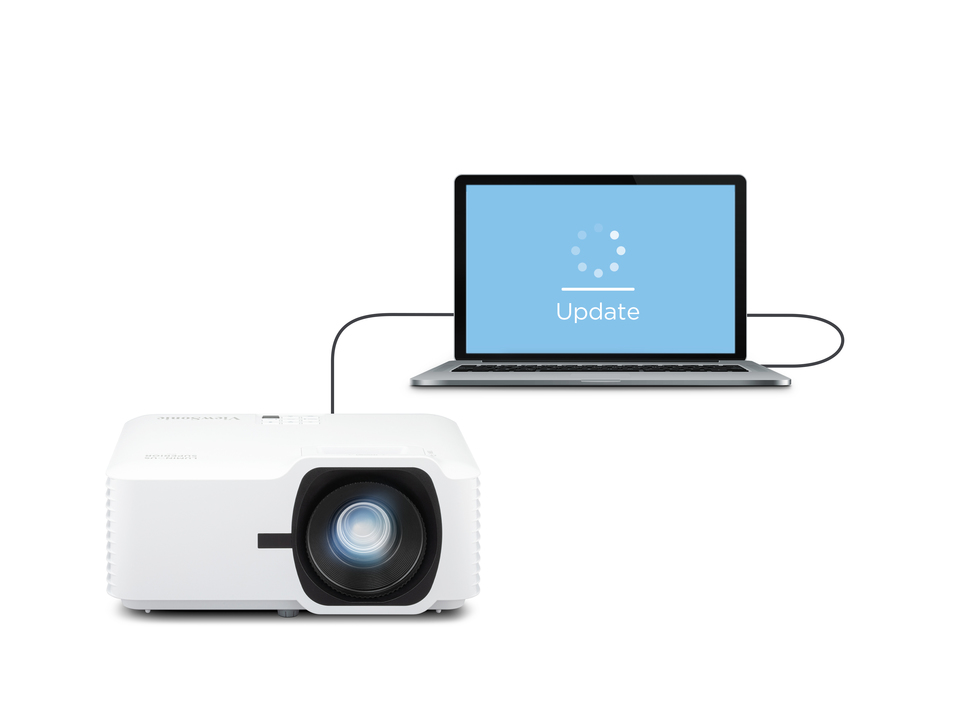

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.

Learn more: https://youtu.be/irlhJLpDHas

*The latest projector software update can be found in the download section at the bottom of the page when available.
A Simpler Way to Update Projector Software 1

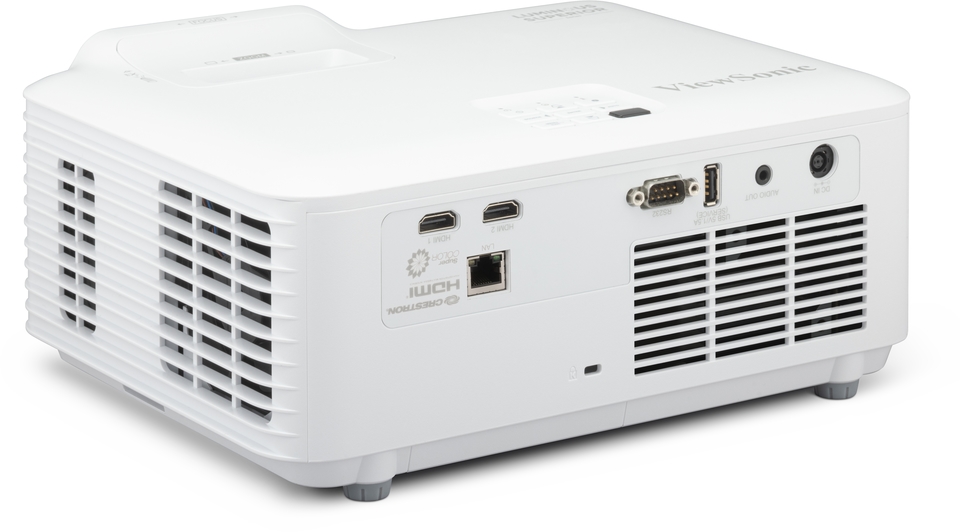

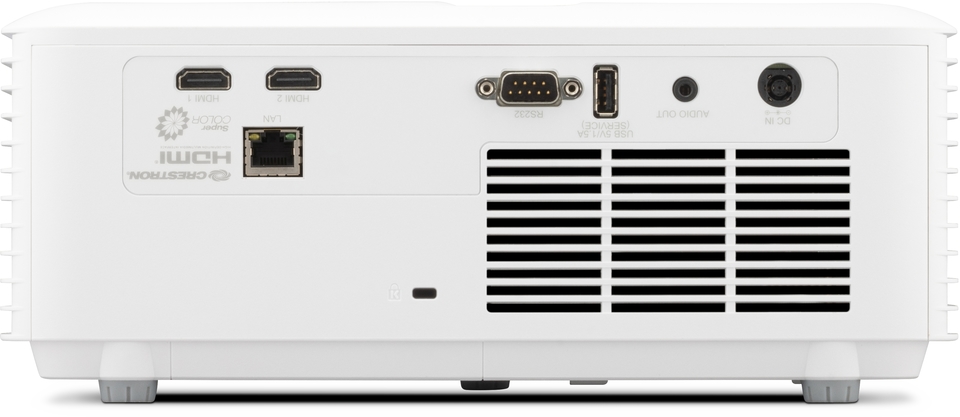

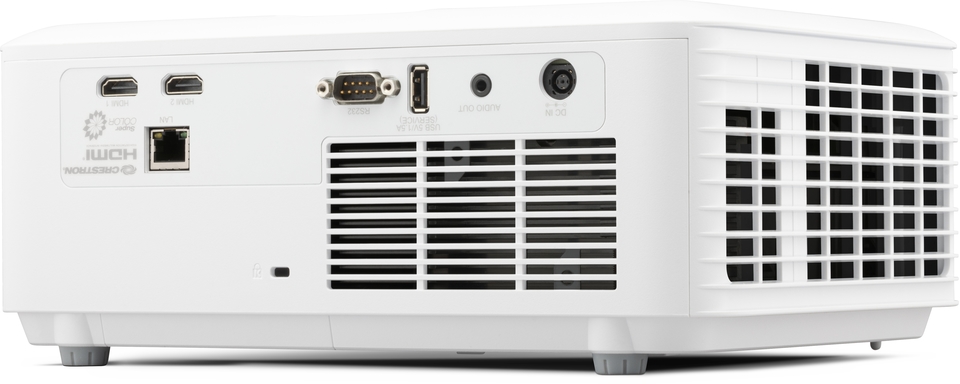

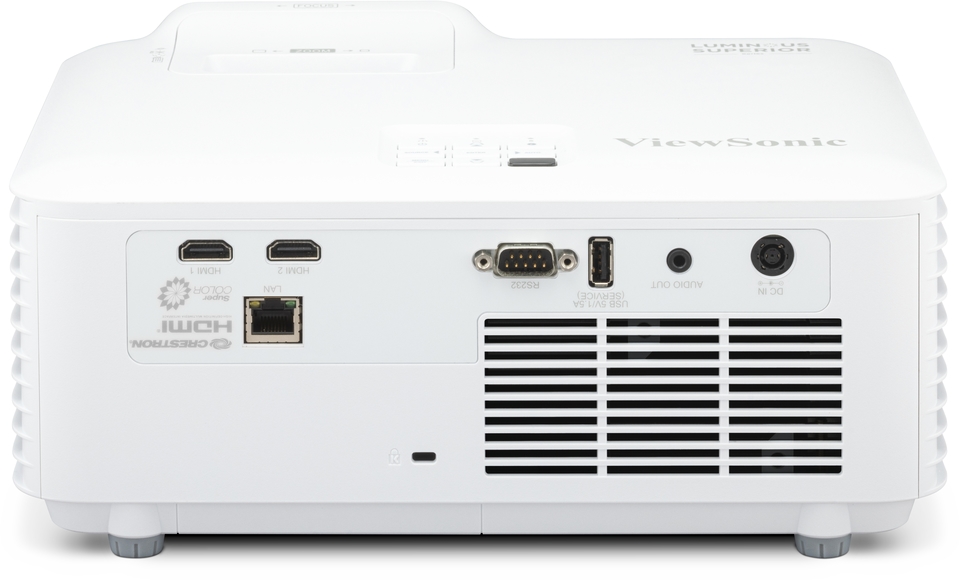

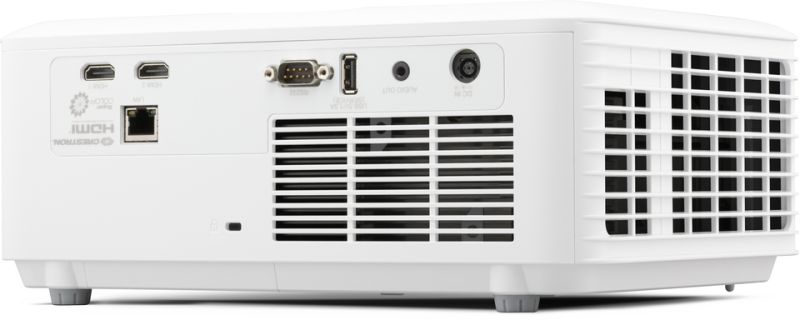

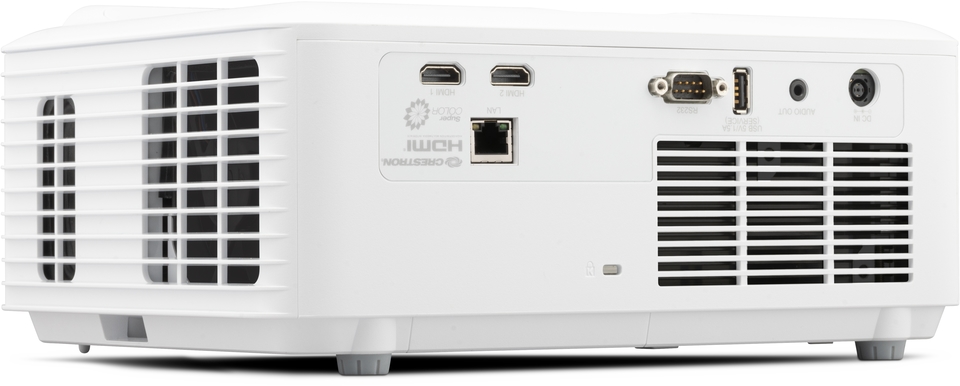

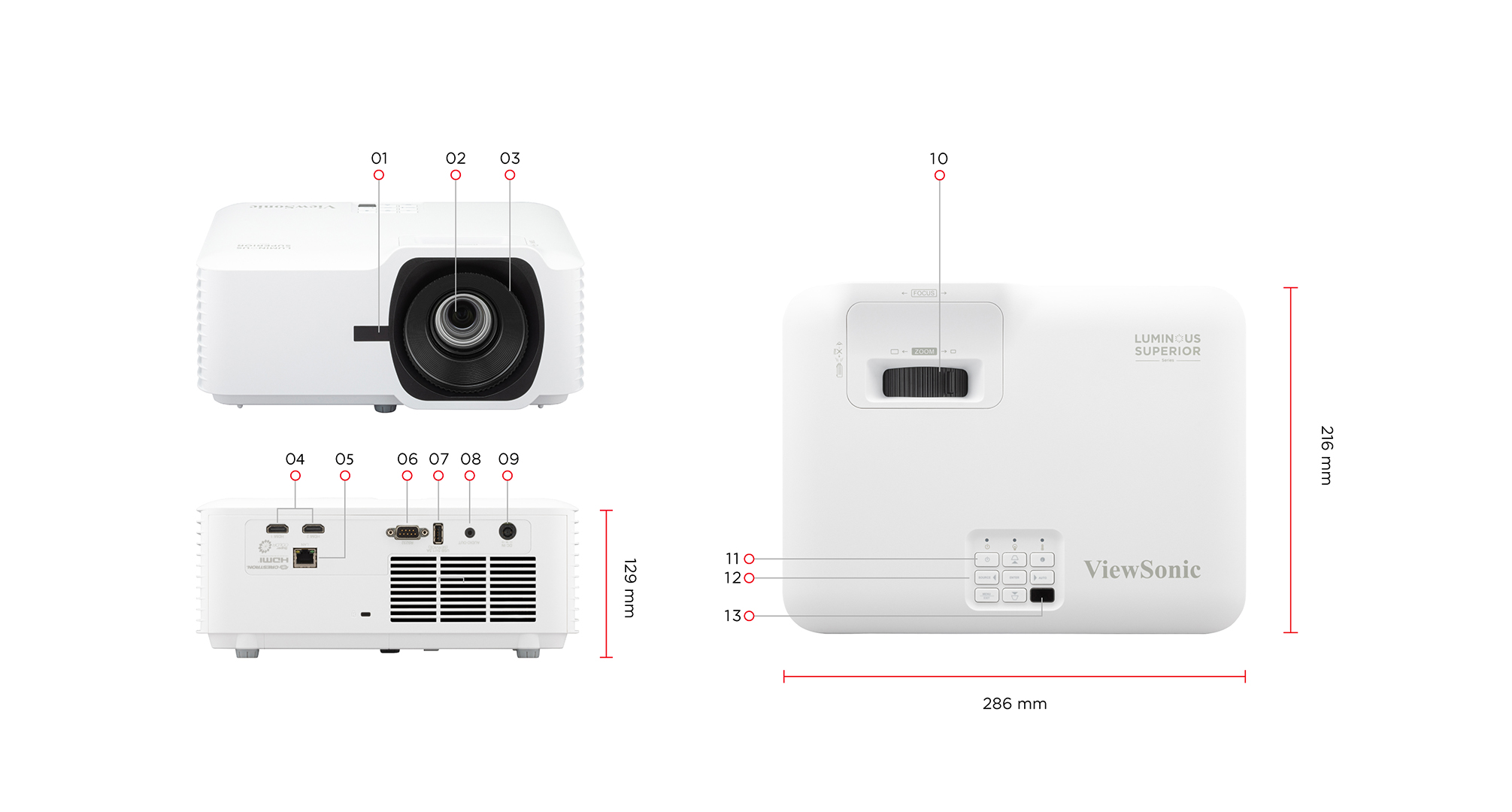

Dimensions & I/O Ports

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI x 2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR

SPECIFICATIONS


  • Specification
    Projection System: 0.65" 1080P
    Native Resolution: 1920x1080
    Brightness: 4000 (ANSI Lumens)
    Brightness (Center Lumens): 4400
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.43-2.78, f=16.90-21.61mm
    Projection Offset: 132%+/-10%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.75-9.76m
    (100"@2.50m)
    Keystone: H:+/-30° , V:+/-30°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 24-120Hz
  • Input
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
  • Output
    Audio-out (3.5mm): 1
    Speaker: 15W
    USB Type A (Power): 1 (5V/1.5A)
