Hot

VG1655

16” USB-C Portable Business Monitor

Compact, lightweight and portable
Easily extend display to a larger screen from mobile devices
60W USB-C one cable solution for multimedia transfer and power charging
Elegant, durable metallic design with a foldable stand
Flexible display setup – work at any angle

Sales Enquiry

OVERVIEW

The ViewSonic VG1655 is a portable 16” Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, metal case, and aluminum stand, reliability is embodied in the design.

Extend Your Content from Mobile Devices

Extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.

*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.

Anywhere with Laptops, Tablets, and Phones

Extend Your Content from Mobile Devices 1

Audiovisual Extension while Power Charging

Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge (up to 60W) over one cable while powering from an external power bank/outlet over the other USB Type C cable.

*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.

2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

Flexible Setup with 2 x USB Type C

Audiovisual Extension while Power Charging 1

Portable Size for Work & Fun

Larger, 16” display than most common laptops and weighing less than 1 kg. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

16” Display, 1 KG, 1 CM

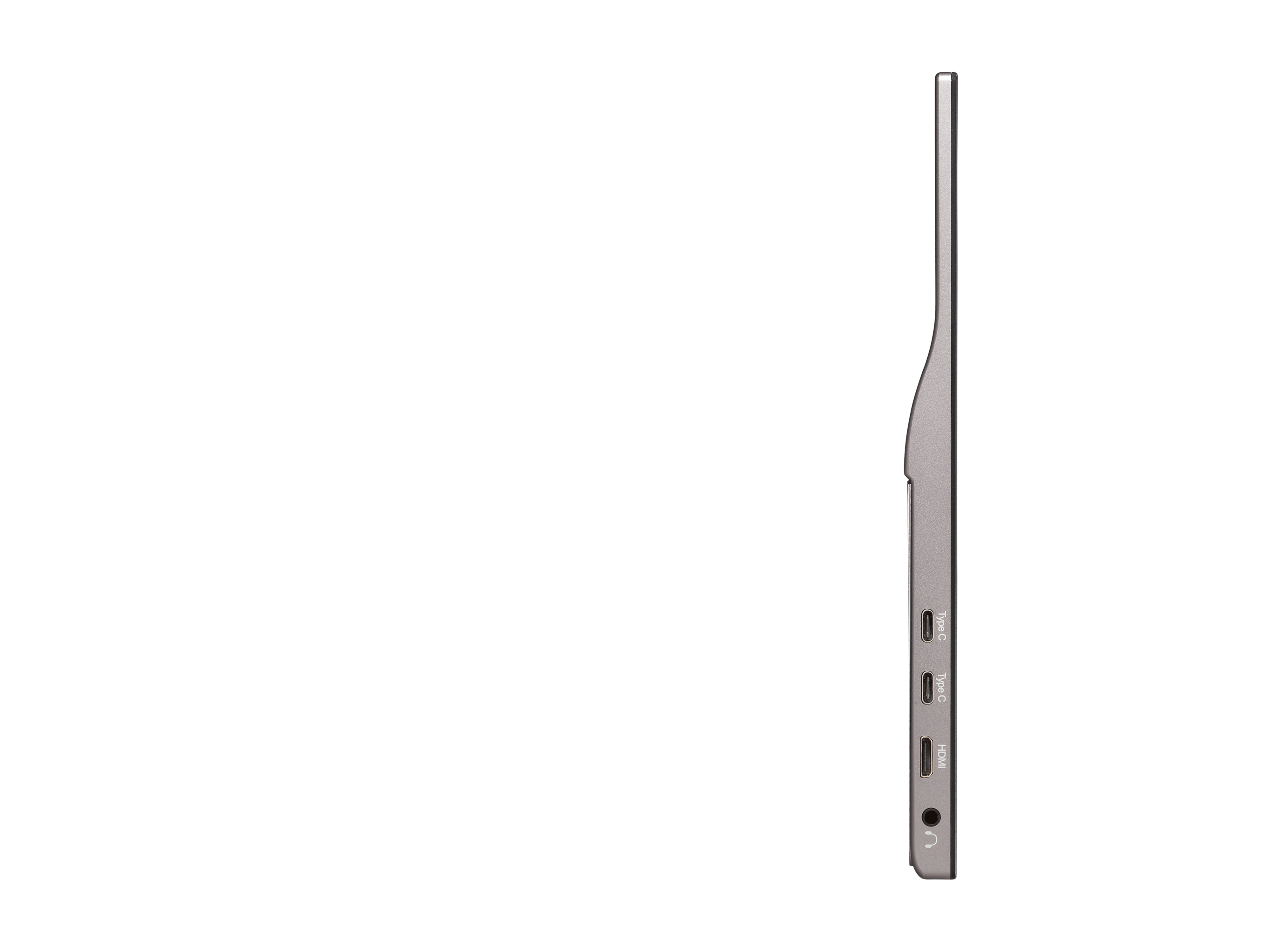

Working in Your Preferred Angles

View in a wide range of angles by adjusting the attached stand.

Up to 60 Degree Tilt

Supports Vertical Layout

Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.

Pivot-able Display

Magnetic Cover and Mat

Avoid damage during carry, the detachable magnetic cover is easy to put on. Used as a mat, its anti-slip surface prevents the monitor from sliding away.

Anti-slip Cover

Robust One-piece Design

With the metal case and endurable hinge, the fold-able aluminum stand makes the whole monitor a one-piece design.

Metal Case & Aluminum Stand

Certified Environmental Sustainability

This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases. Registered as an EPEAT Silver product, the VG1655 delivers a reduced environmental impact over the course of its lifecycle. *Energy savings may vary based on actual usage and other factors.

EPEAT Bronze & Energy Star

Certified Environmental Sustainability 1

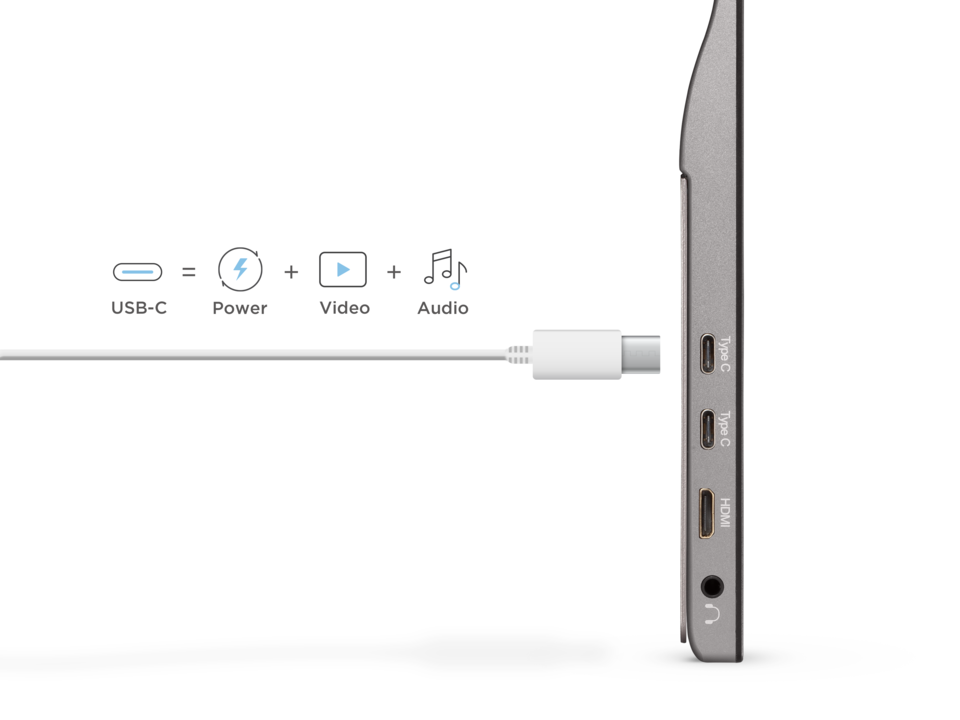

Dimensions & I/O Ports

USB Type C x2
Mini HDMI
Audio Out
Joy Key

REVIEWS

[Video] TNC

“Màn Hình Này Sẽ Giúp Bạn Làm Việc ĐẲNG CẤP Hơn Hẳn Bình Thường!”

Read Review

nShop Review

“Màn hình di động ViewSonic VG1655 15.6 inch FHD có bán tại nShop tích hợp loa, có thể cắm trực tiếp sử dụng với Nintendo Switch mà không cần cắm Dock. Ngoài ra, VG1655 còn hỗ trợ mở rộng nội dung các thiết bị di động như laptop, máy tính bảng, smartphone, PC một cách vô cùng tiện lợi.”

Read Review

[Video] Tinh Tế

“Trên tay màn hình di động TD1655 và VG1655 của ViewSonic: Trợ năng gọn nhẹ thích hợp di chuyển”

Read Review

Tinh Tế

“ViewSonic giới thiệu màn hình di động 15.6&amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;amp;quot;, hai phiên bản giá 6tr150 và 7tr990”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.2M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.551ms
Response Time (Typical Tr+Tf): 30ms
Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type C DisplayPort Alt mode only : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video & data)

Audio
Internal Speakers: 0.8Watts x2
Power
Eco Mode (Conserve): 5.1W
Eco Mode (optimized): 6W
Consumption (typical): 7W
Consumption (max): 7.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: 15 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
Ergonomics
Tilt (Forward/Back): 20º / 60º
Weight (imperial)
Net (lbs): 1.8
Net Without Stand (lbs): 1.8
Gross (lbs): 4.8
Weight (metric)
Net (kg): 0.82
Net Without Stand (kg): 0.82
Gross (kg): 2.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 13.99 x 8.8 x 0.61
Physical Without Stand (in.): 13.99 x 8.8 x 0.61
Dimensions (metric) (wxhxd)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355.46 x 223.44 x 15.5
Physical Without Stand (mm): 355.46 x 223.44 x 15.5
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE(Adaptor), BIS
PACKAGE CONTENTS: VG1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
