VB-STND-008

Motorized Trolley Cart

Integrated ViewBoard on-screen control for better lesson delivery
Electric tilt adjustment for effortless individual or group learning
Motorized height adjustment for easy and fast access to ViewBoard
Accessible design with large wheels for maximum mobility
Smart space design to keep all cables and accessories organized

Sales Enquiry

GALLERY

OVERVIEW

The VB-STND-008 motorized trolley cart securely accommodates ViewSonic 55”, 65”, 75”, and 86“ ViewBoard interactive flat panel displays, or any similar displays weighing up to 75 kg. Thanks to integrated on-screen control, the trolley's height can be easily adjusted using the ViewBoard app toolbar without class interruption. Designed for safety and equipped with 360-directional quiet wheels, this mobile cart lets you securely and silently move the ViewBoard display from room to room for easy sharing of resources..

ViewBoard Integration for Smooth and Easy Teaching

The motorized trolley cart isn't only for height adjustment, but also works as a ViewBoard power source. The connectivity and control bar compatibility between the ViewBoard and the trolley facilitates better lesson delivery without disrupting the flow.

Adjustable Height for Any Age

The motorized adjustable height function increases the learning engagement of all students by giving everyone equal reach to the ViewBoard. The trolley can be raised up to 22 inches (560 mm) at the command of a Control Pad, ViewBoard Apps, or Control buttons making for a more intuitive and more inclusive classroom.

Flexible Positioning for Group Learning

The Electric Tilt function allows for the ViewBoard to be effortlessly switched between vertical and horizontal position to best match individual studying, group activities, or team discussions.

Designed to Be Accessible by All

Accessible design maximizes the learning possibilities for all students.The trolley was created to enhance digital accessibility in the classroom providing easy contact with the touchscreen for users of any height and any mobility limits.

Swift and Silent Wheels for Convenient Movability

Large, 360-directional wheels roll smoothly and with ease. Moving within the classroom and the lecture hall doesn't interrupt the class or lecture flow while switching between rooms and venues becomes effortless and quick.

Designed for a Safe Learning Environment

The trolley embodies the latest safety features. The vertical moving automatically stop when sensing the obstacle which prevents any possible hand or finger injuries. The locking caster wheels eliminate the danger of tipping over or moving away from the user.

Designed to Keep All Your Accessories Organized

Every part of the motorized trolley cart has been created to optimize organization. The cord clamp design solves cable clutter problems once and for all. Laptops, tablets, and any additional devices can be securely held on the adjustable keyboard tray. Finally, both the magnetic control pad and the caster cover can be conveniently placed at an easy-to-reach location.

Height Information

The trolley cart can accommodate 55”, 65”, 75”, and 86” ViewBoards. The height information may differ depending on the ViewBoard model.

ViewBoard	6552	7552	8652
T1	82.99"	85.24"	84.02"
B1	45.35"	43.11"	36.46"
T2	52.17"	56.30"	61.97"
B2	14.53"	14.17"	14.41"

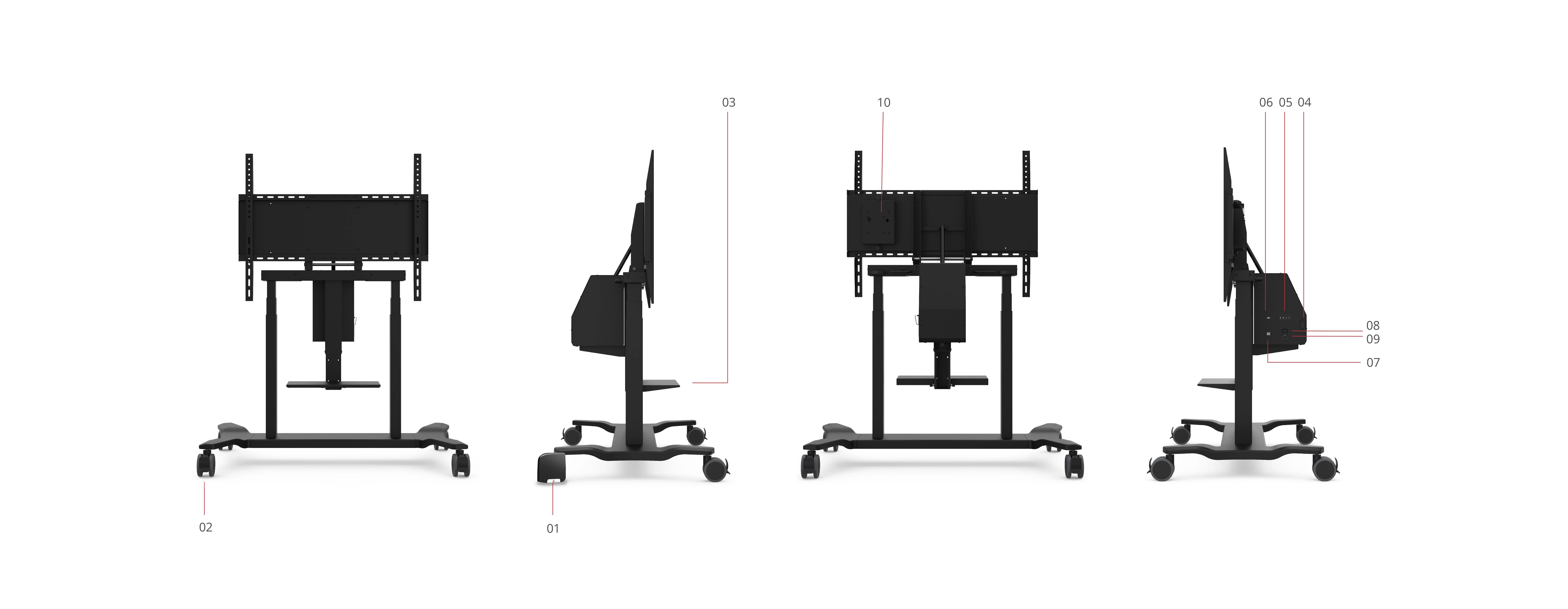

Dimensions & I/O Ports

Caster Cover
Wheel Brake
Keyboard Tray
Cord Clamp
Control Button
USB
RJ45
AC out
AC in
Protective Cover

SPECIFICATIONS

Ergonomics
Swivel: 360
Height Adjust: 560mm
Tilt: 0° ~ 90°
Wall mount bracket
up to 800x600mm
Material
Alumimum Alloy, Plastic, Steel

Loading
Wall mount: 75 kg max. / 165 lb max.
Plate: 10 kg max. / 22 lb max.
Dimensions
Physical (WxHxD): 1248.9 x 1330.7 x 716 (mm) / 49.17 x 52.39 x 28.19 (in)
Packaging (WxHxD): 1150x490x1010 (mm) / 45.28x19.29x39.77 (in)
Weight
Net: 65 kg / 143 lb
Gross: 74.4 kg / 164 lb
Compliance
cTUVus, FCC/ICES003, EMC/CE , CB/LVD, RCM, Mexico NOM , RoHS , ErP, REACH, WEEE
Inbox items
1. Control Pad
2. Power Cord
3. Power Adapter Cord
4. USB Adapter Cable
5. Screw Bag
6. Core Hook(x2)
7. Quick Start Guide
8. Compliance statement
