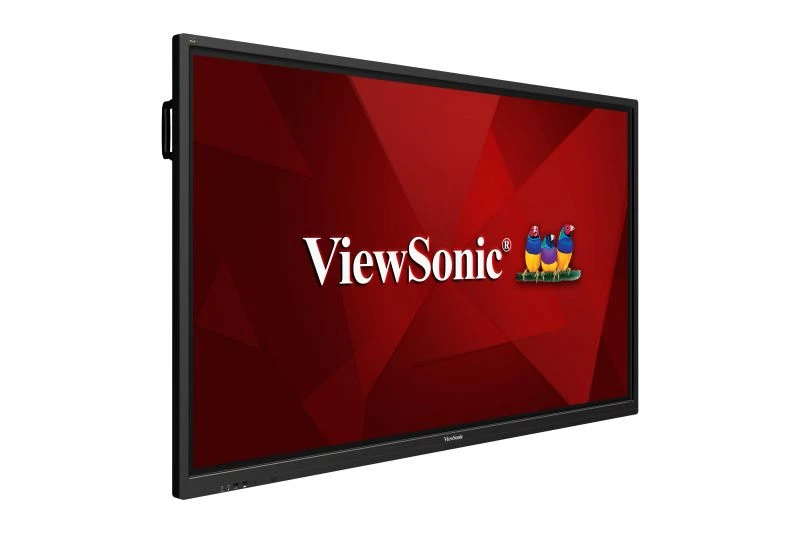

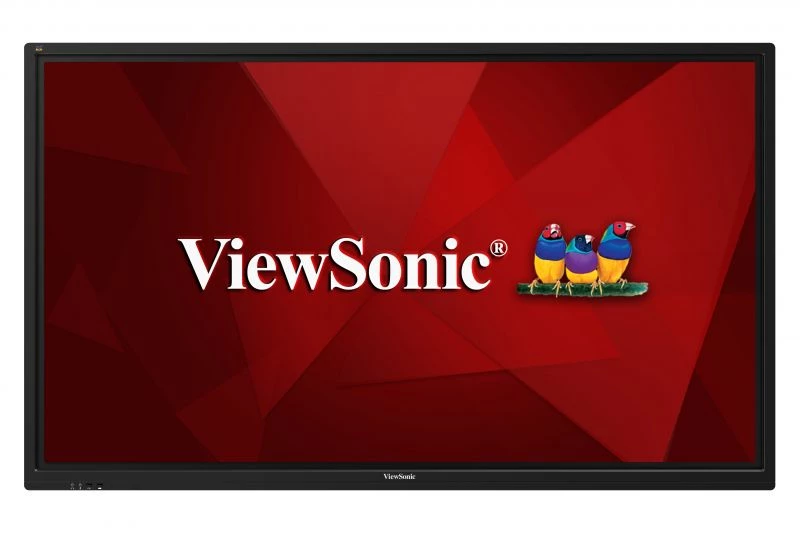

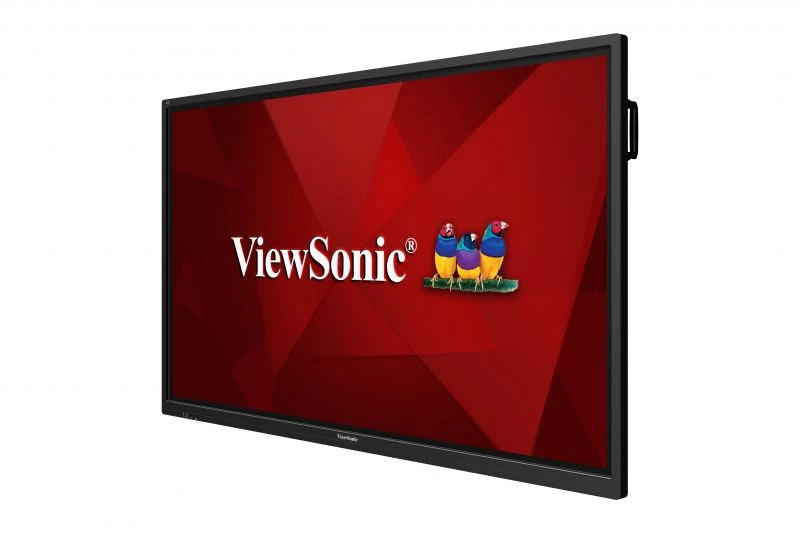

IFP7500
75" 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
OVERVIEW
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP7500 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 75” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC capability, as well as future-proof Intel® SDM capability, for more computing-intensive interactive applications. The IFP7500 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.4K Resolution with Eye-Care Technology 4K, Flicker-Free, Blue Light Filter

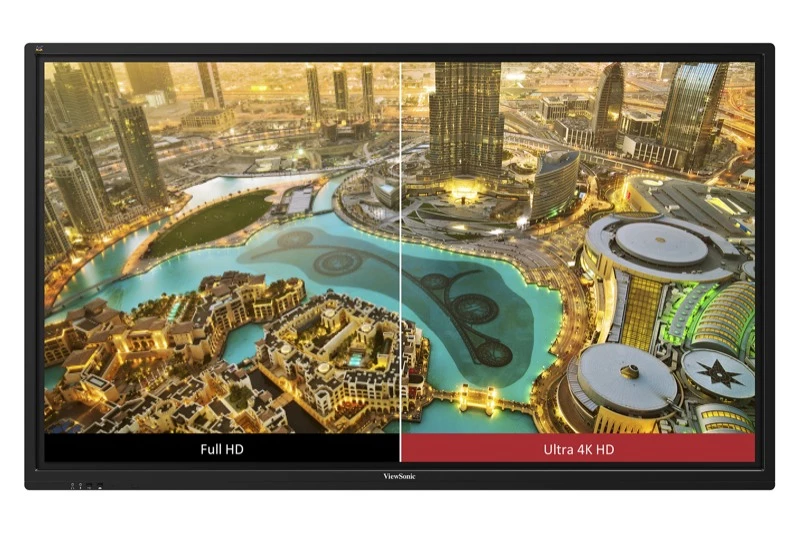

With four-times the resolution of Full HD, ViewBoard®’s Ultra HD 3840 x 2160 display delivers breathtaking visuals. 4K DisplayPort input is also supported for external sources. Flicker-Free technology and a Blue Light Filter come standard to help to eliminate eye strain from extended viewing periods.

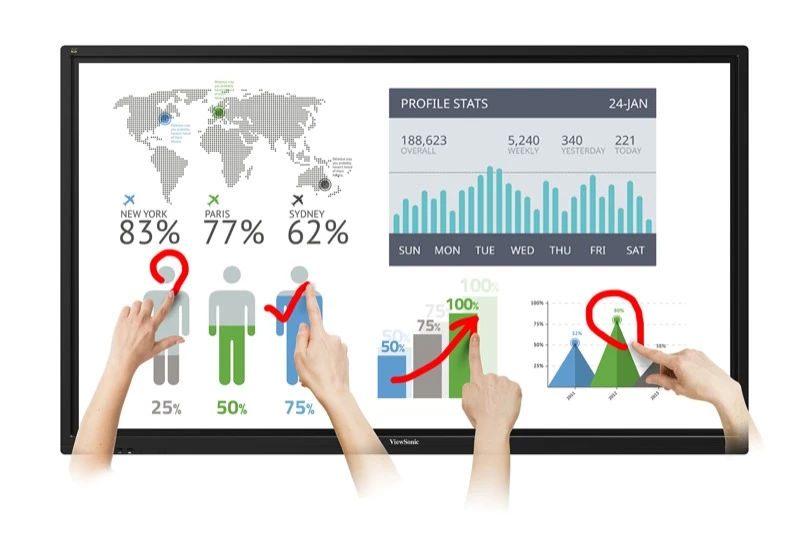

20-Point Touch Multi-user annotation
ViewBoard® allows multiple users to annotate on the slim display simultaneously, increasing engagement and encouraging group collaboration.

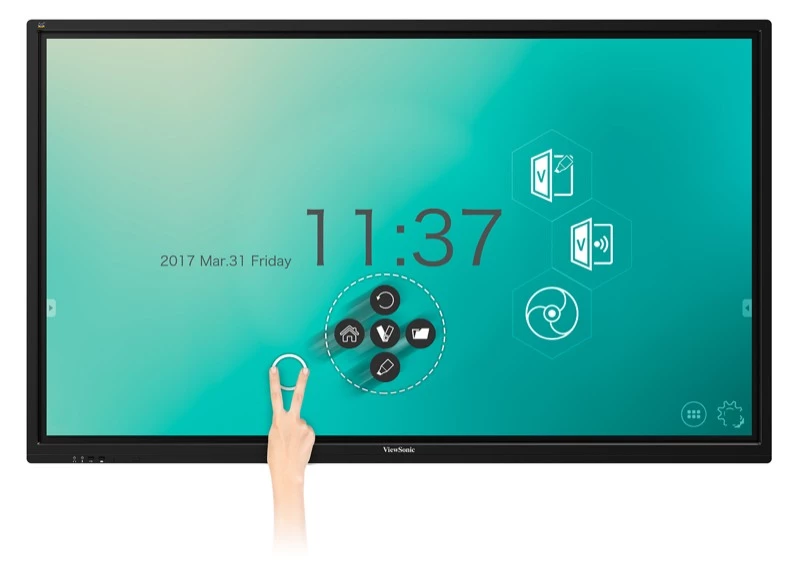

Floating Pen Annotation on demand
Two-finger touch activates ViewBoard’s Floating Pen that allows for easy annotation on everything from powerpoint files, to text docs, USB files, internal memory, or even on images from a connected input source.

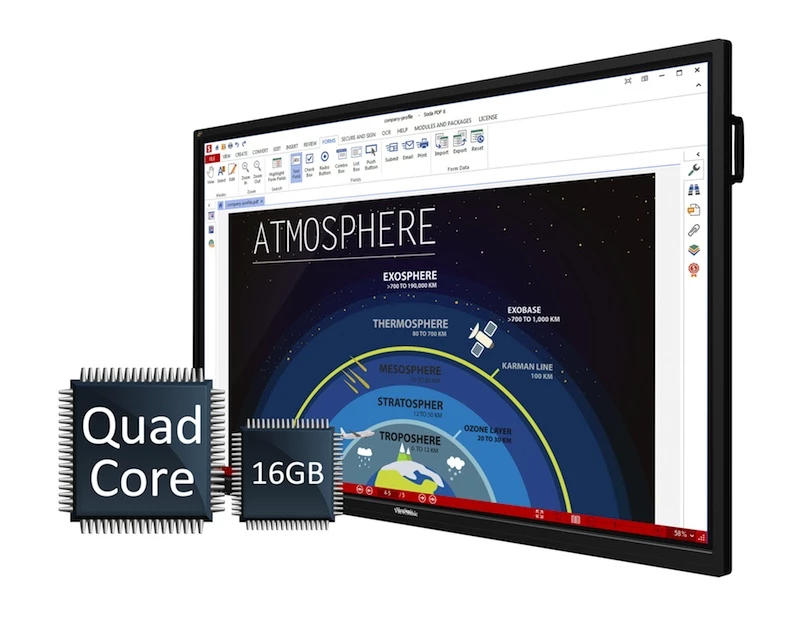

Built-in ARM Quad-core CPU with 16GB Storage
Equipped with a powerful quad-core processor and Android OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 16GB of onboard memory provides ample storage for files and multimedia content.
Out-of-Box Collaboration
Integrated with ViewSonic vBoard and Cast software, as well as Zoom® software, this display delivers out-of-the-box annotation and content sharing capabilities.

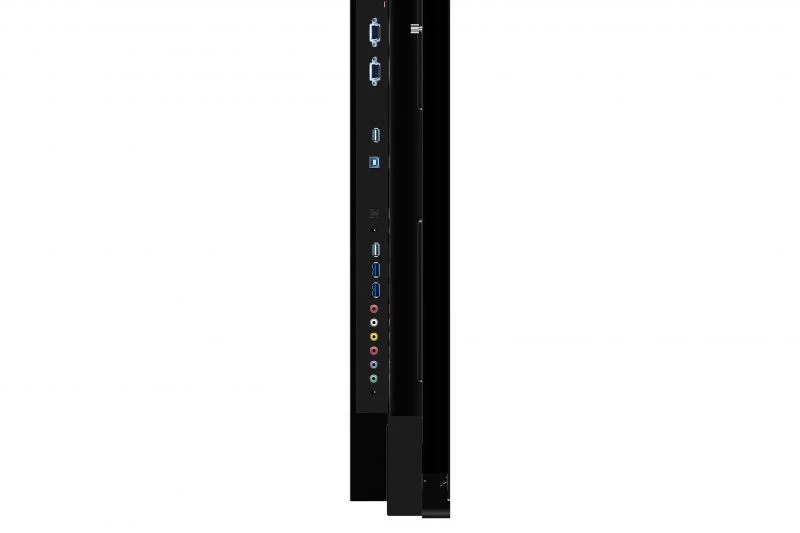

- SPEAKERS

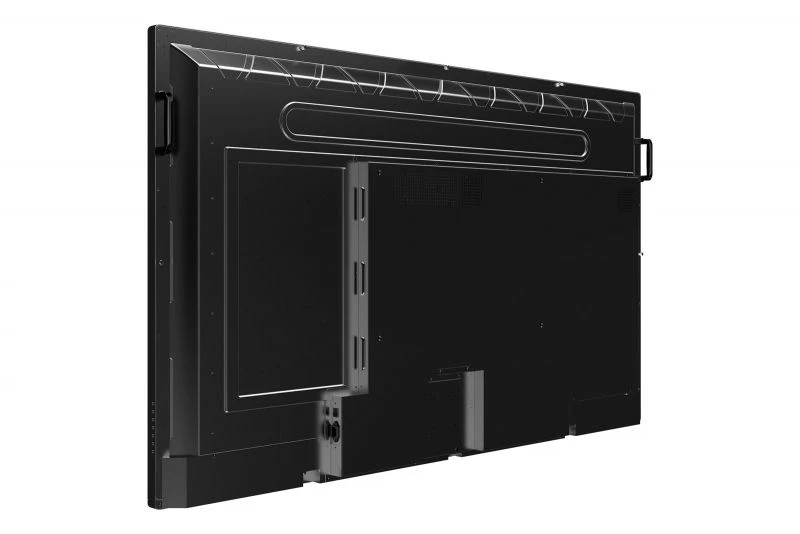

- VESA® WALL MOUNT 600x400 mm
- MENU CONTROLS
- AC IN
- OPS PC SLOT
- INTEL SDM SLOT
- HDMI
- HDMI OUT
- RJ45 (LAN)
- VGA-AUDIO
- VGA IN
- RS232 IN & OUT
- USB 2.0 (for OPS PC)
- USB 2.0 (Touch)
- SPDIF
- AUDIO OUT
- USB 2.0 & 3.0
- AUDIO IN
- CVBS IN (AV IN)
- YPbPr
- CVBS OUT (AV OUT)
Learn more about Software

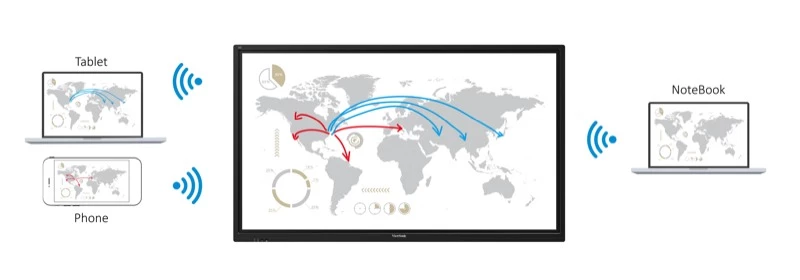

ViewBoard® Cast Content Sharing Software On-site content sharing software
ViewBoard® Cast is a content sharing app for mobile devices that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network.

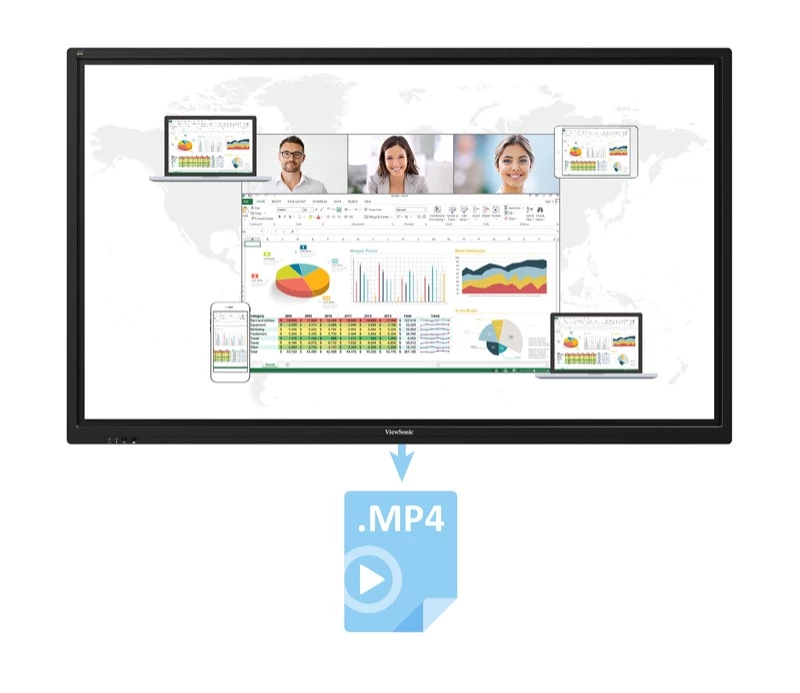

Zoom Conference Software On-line conference software
Zoom is a conferencing app that enables content to be streamed from a user’s devices onto ViewBoard® over the internet. It supports up to 10 participants, allowing 4 of the 10 to stream content from their laptop or smart phone.

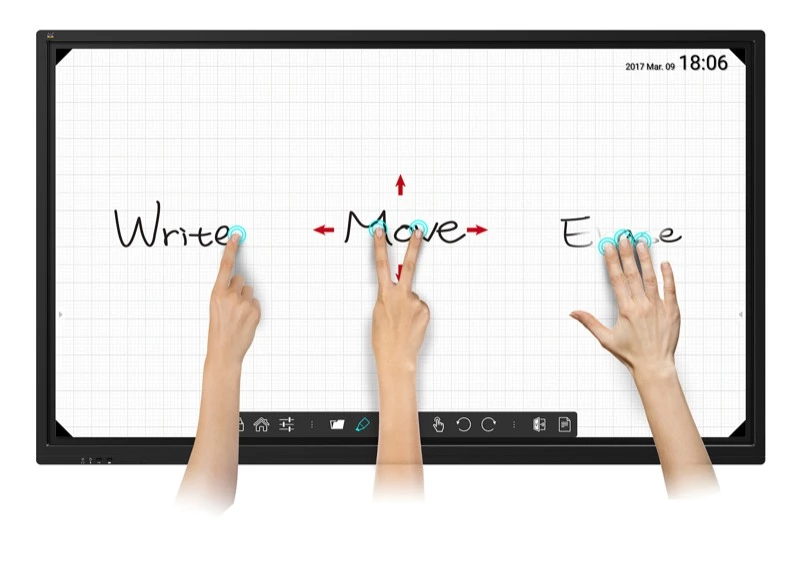

myViewBoard™ Whiteboarding Software Annotation whiteboard
myViewBoard™ is a whiteboarding software used on the ViewBoard. The intuitive “draw with one finger, move/zoom with two fingers, and erase with three fingers” design delivers a user friendly experience.
Add-on Tamashare Software
Tamashare is the first software that allows group collaboration in any kind of work organisation.
Learn More Features

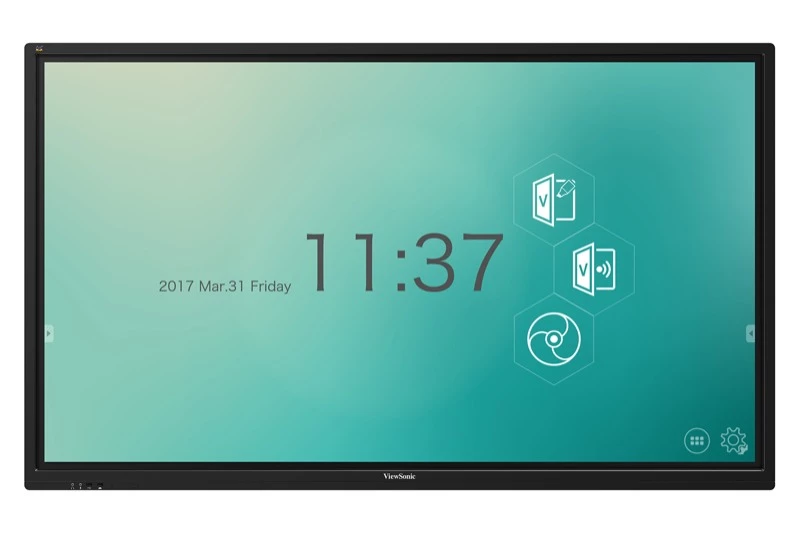

vLauncher Startup top 3 commonly used functions
Viewboard's myViewBoard™, Cast, and Browser shortcuts enable users to write, cast content, and surf the web; 3 of the most commonly used functions during meetings and in class. These easy access desktop icons are displayed as soon as the ViewBoard® is powered on.

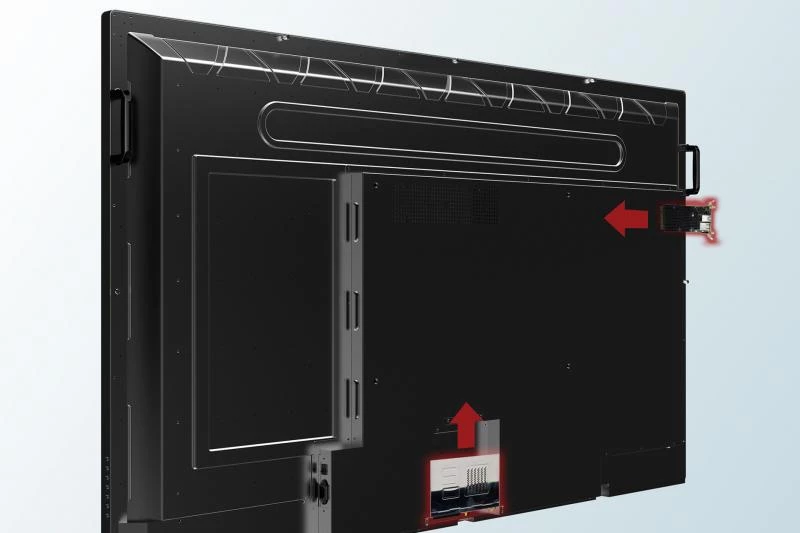

Dual Slot-in PC Capability
This display features slot-in capabilities for both the Intel® Open Pluggable Specification (OPS), as well as Intel® Smart Display Module (SDM). OPS compatibility is the current standard for slot-in Intel processors, while SDM delivers a smaller and more compact form factor for future-proof compatibility.

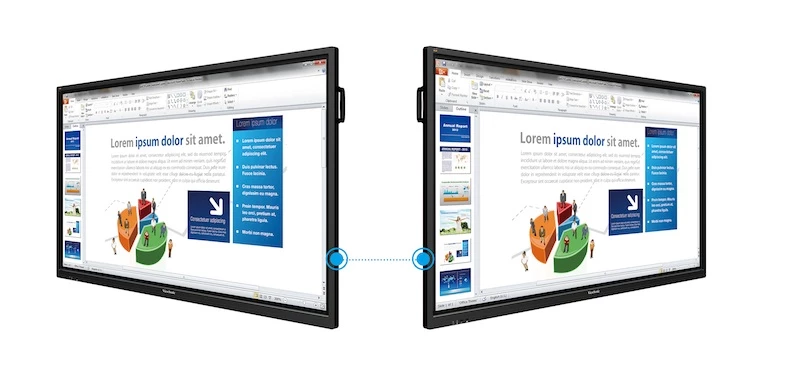

HDMI-Out Mirroring Extended display
Mirroring capabilities deliver group discussion and spatial arrangement flexibility by allowing content and sound to be mirrored on to other devices simultaneously.

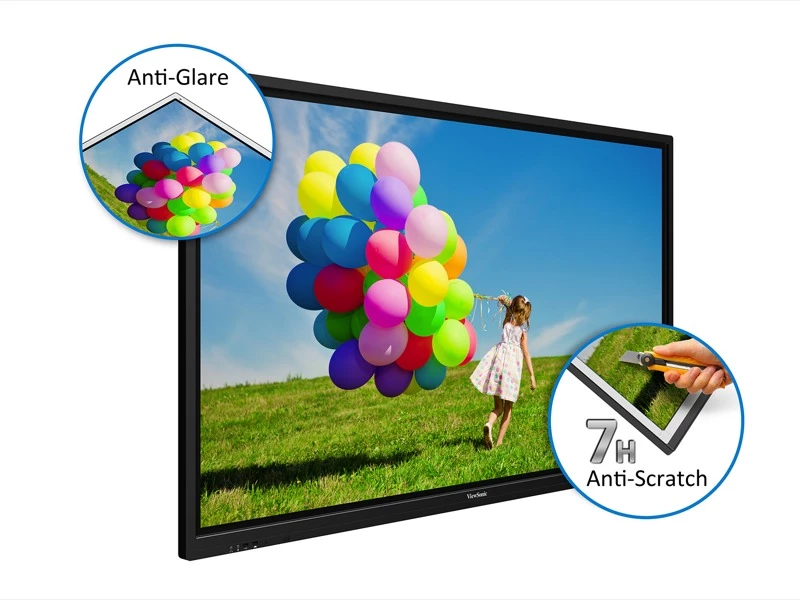

Anti-Scratch, Anti-Glare Glass Faceplate Anti-scratch, Anti-glare
The 7H scratch-resistant and anti-glare screen offers a durable and consistent high-quality touch experience.

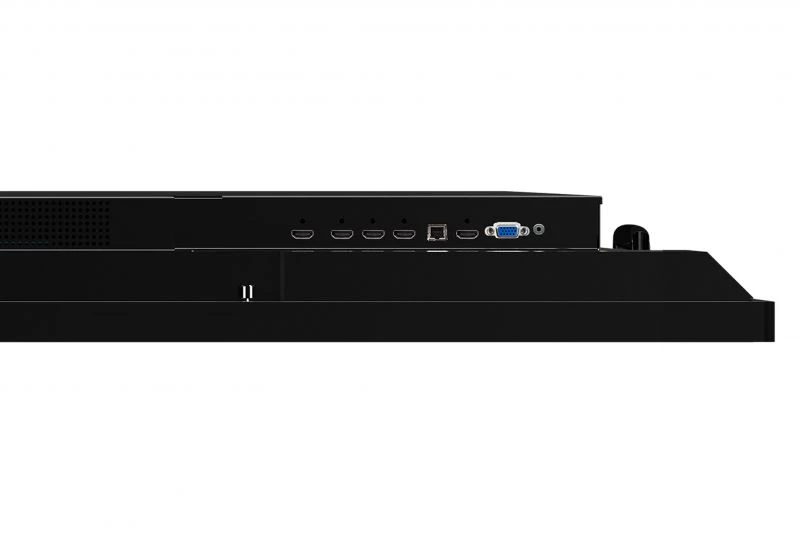

Versatile Connectivity
HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.
SPECIFICATIONS
- LCD PANELPanel Size: 75"
Type/ Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
Aspect Ratio: 16:9
Resolution: 3840 x 2160
Colors: 1.07B colors (10bit)
Brightness: 400 nits (typ.) 350 nits (min.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours Min.
Hardness: 7H - TOUCHType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
Response Time: <10ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 60,000hrs - INPUTHDMI: x 4
RGB / VGA: x 1
Audio: x 1
CVBS (AV): x 1
YPbPr: x 1
RS232: x 1
PC Slot: x1 PC Slot (Intel OPS Standard)
x1 SDM
- OUTPUTHDMI: x 1 (for one of HDMI1/2/3)
Audio (Earphone out): x 2 (front x1, side x1)
CVBS (AV): x 1
SPDIF: x 1
RS232: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 3 (front x1, side x1, top x1)
3.0 Type A: x 2
2.0 A type (Dedicated for OPS PC): x 2 (front x1, side x1)
2.0 Type B (For Touch): x 1 - SPEAKERS20W x 2
- BUILT-IN PCProcessor: ARM Cortex A53 Quad Core 1.5G Hz CPU
Graphic: ARM Mali-450MP4
Memory: 2GB DDR3
Storage: 16GB eMMC
Networking: 10/100M auto-identification and DHCP - COMPATIBILITYVGA: Refer to timing table
HDMI: 480i, 480p,720p, 1080p, up to 2160p
CVBS: 480i - CONTROLSPhysical- Top OSD: Input, Up, Down, Right(VOL+), Left(VOL-), Menu, Power
- POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: 333.4 W - ERGONOMICSWall Mount (VESA® ): 600 x 400mm; Screw: M8 x 20mm
- OPERATING CONDITIONSTemperature (º C): 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing - DIMENSIONS (W x H x D)Physical w/o Stand (mm / inch): 1736.8 x 1035.3 x 108.2 mm / 68.38 x 40.76 x 4.26 inch
Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 inch - WEIGHTNet (kg / lb): 60.64kg / 133.69lbs
Gross (kg / lb): 80.4kg / 177.25lbs - REGULATIONSStandard: cTUVus, FCC, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, CCC, China Energy Label
- What's in the box?VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)/AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 2
